C-Mount Camera - Fluorescence KERN ODC 861

AED 3,750.00

Availability:In stock

SKU

LBX-KRN-2455

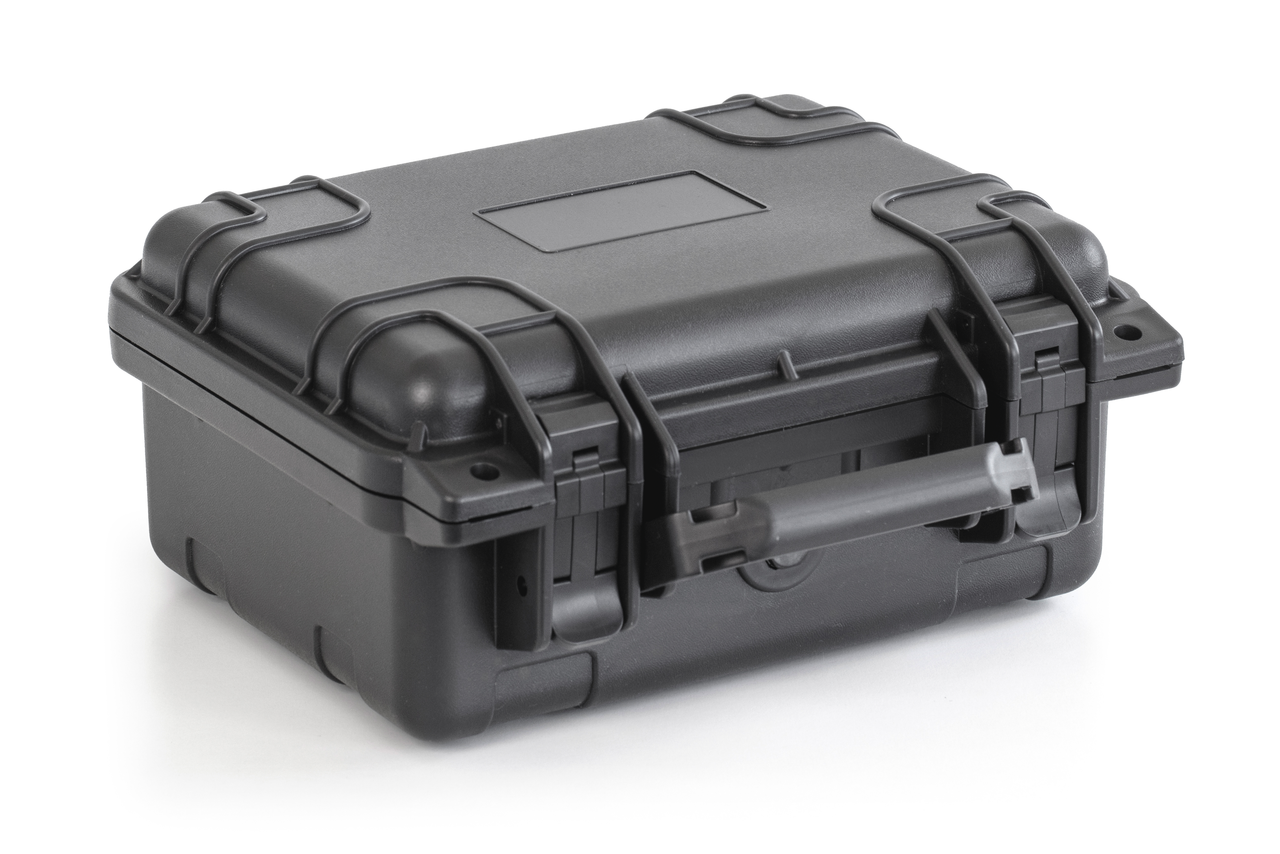

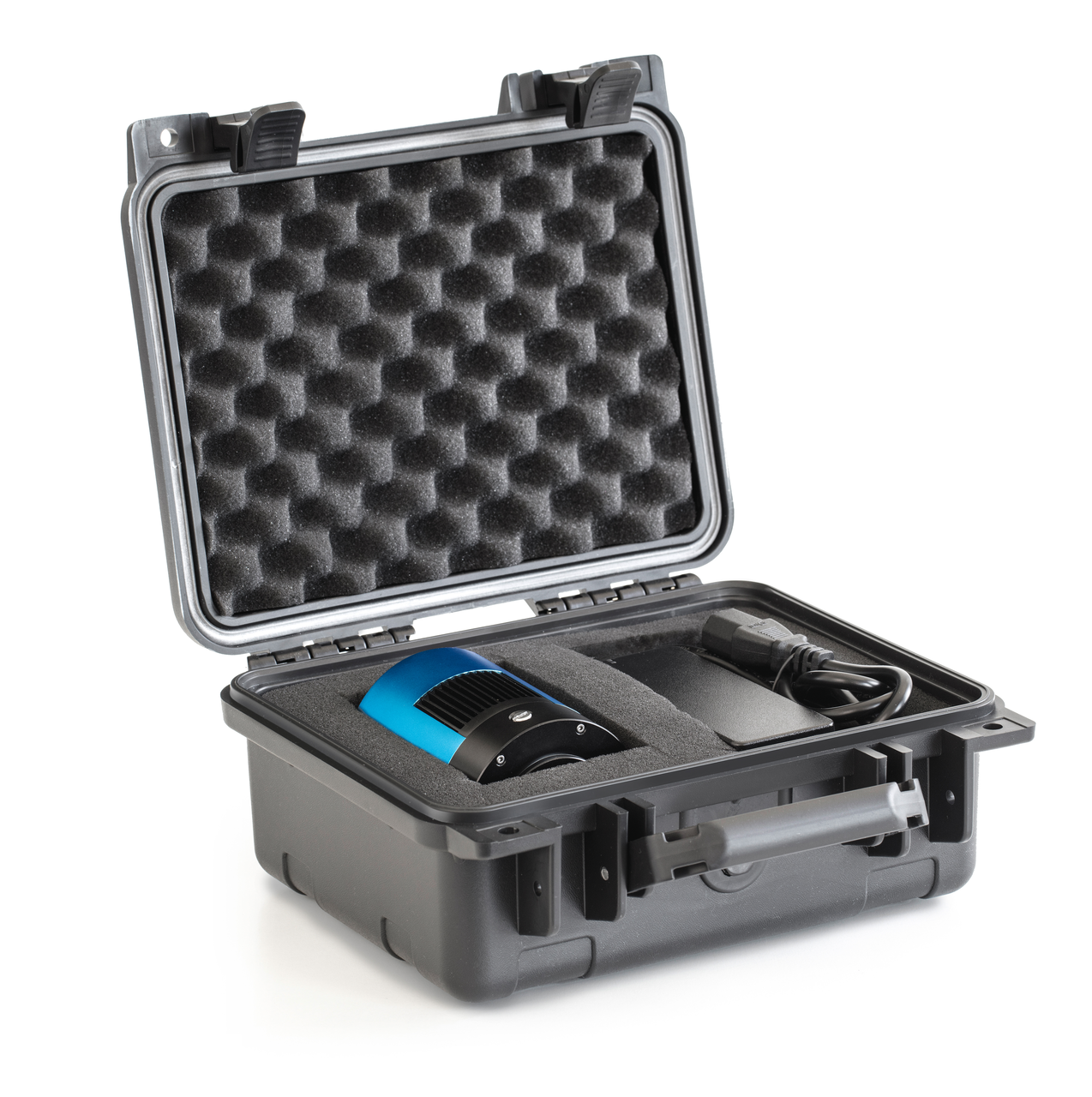

Elevate your fluorescence examinations with the ODC 861 Microscope Camera. Featuring advanced Peltier cooling technology, it minimizes image noise for superior clarity in low-light conditions. Equipped with a high-resolution Sony CMOS color sensor, it delivers exceptional image quality. Transfer real-time images to your PC via USB 3.0 or USB 2.0 interfaces. Includes VIS Pro KERN OXM 902 software and comes with a protective storage box. External 12V power supply required.

BrandKern

More Information
Product Name	C-Mount Camera - Fluorescence KERN ODC 861
Weight	1.000000
Part No.	LBX-KRN-2455
Supplier Item Code	ODC 861
Input voltage power supply Max	100 - 240 V AC, 50/60 Hz, 1,0 A
Gross weight	2,6 kg
Total packaging weight	164 g
Net weight	2,6 kg

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Camera Technical Data
Camera - Resolution	20 MP
Camera - Sensor type	Sony CMOS
Camera - Sensor size	1"
Camera - Colour depth	Colour
Camera - Pixel size	2.4×2.4 µm
Camera - FPS at Resolution range 1	19 FPS, 5440x3648
Camera - FPS at Resolution range 2	49 FPS, 2736x1824
Camera - FPS at Resolution range 3	59 FPS, 1824x1216
Camera - Exposure time	[Min] 0.1 ms / [Max] 3600000 ms
Camera - Exposure method	Rolling Shutter
Interfaces	USB 3.0
Camera - Mounting types	C-mount
Supported operating systems	Win XP, Win Vista, Win 7, Win 8, Win 10, Linux, OS X/Mac OS X, Win 11
Camera - Applicable software	External (OXM 902)
Dimension (W×D×H)	80×80×103 mm
