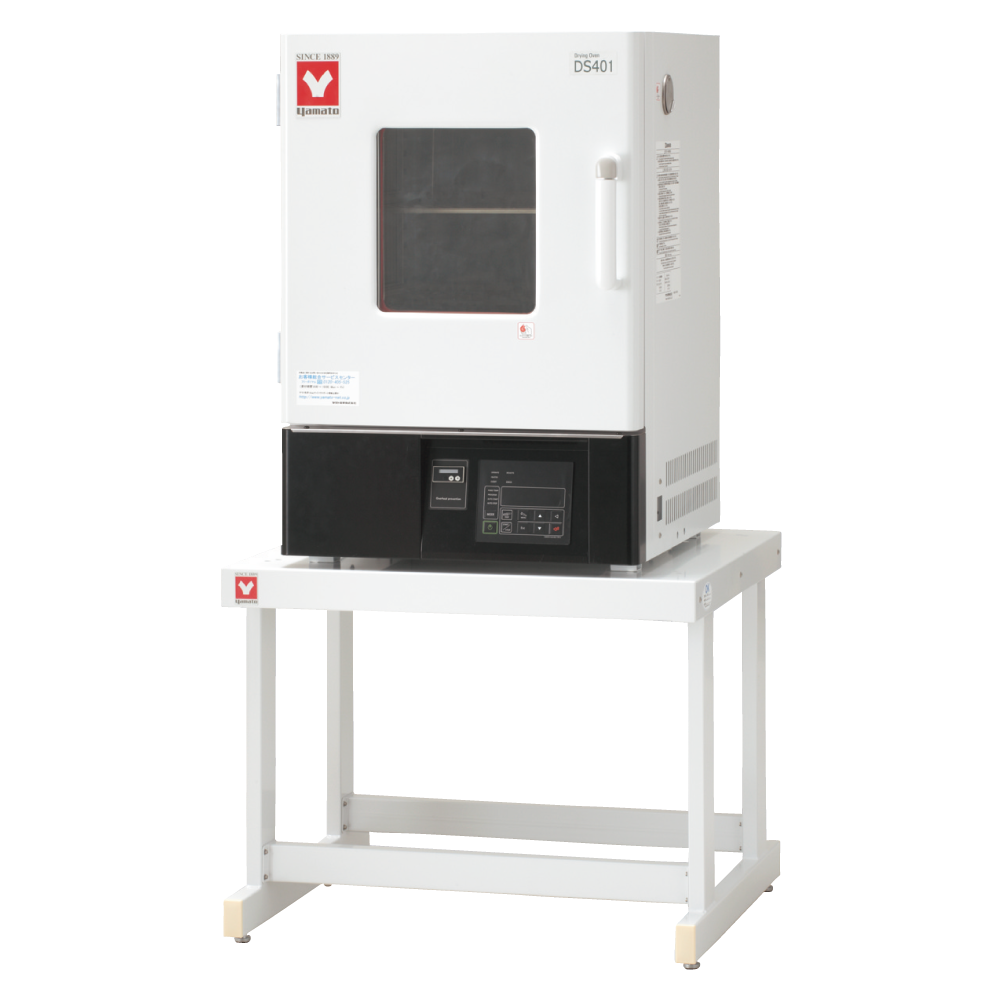

Constant temperature drying oven Gravity Convection

AED 8,232.00

Availability:In stock

Only %1 left

Natural Convection Drying Oven – affordable, energy-efficient lab oven heating up to 260°C. Features triple-pane observation window, PID control, 6-pattern programmable operation, and self-diagnostic safety. Available in 99L/162L capacities, AC100V power. Ideal for budget-friendly drying, aging, and heat treatment in research labs.

BrandYamato Scientific

More Information
Product Name	Constant temperature drying oven Gravity Convection
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	DVS403	DVS603
Product code	212894	212895
System	Natural convection
Temp. control range	Room temp +5~260°C
Temp. control accuracy / fluctuation	±1°C (260°C) JTM K05 / 3°C (260°C) JIS	±1°C (260°C) JTM K05 / 4°C (260°C) JIS
Temp. distribution accuracy / gradient	±5°C (260°C) JTM K05 / 25°C (260°C) JIS	±5°C (260°C) JTM K05 / 17°C (260°C) JIS
Time to max temp.	~75 min	~90 min
Interior	Stainless steel plate
Exterior	Electro-galvanized steel plate, baked paint finish
Insulation	Glass wool
Heater	SUS pipe heater
Heater capacity	1.2kW	1.36kW
Observation window	250×280mm, chemically strengthened glass ×3 panes
Cable hole	φ30mm ×1 (right side)
Exhaust port	φ30mm ×2 (top), with lid (20% open ratio when closed)
Temp. control method	PID control
Timer	0min–99hr59min & 100–999hr/50min, with timer wait function, ON/OFF capable
Operation functions	Constant value, program operation, quick auto-stop, auto-stop, auto-start/program auto-start
Program modes	6 selectable patterns (Program 1: 30 steps, Programs 2–3: 15 steps, Programs 4–6: 10 steps), step weight, repeat, step hold, step skip functions
Additional functions	Calibration offset, setting lock, outage recovery mode selection
Sensor	K-type thermocouple (temp control + independent over-temp protector)
Safety devices	Self-diagnostic (auto over-temp prevention, sensor abnormality, heater wire break, SSR short-circuit, main relay failure, memory error, internal comm. abnormality, measured temp. abnormality), over-temp protector, overcurrent leakage breaker
Shelf load capacity	15kg/sheet (total load 30kg)
Shelf pitch	30mm
Shelf levels	9 levels	13 levels
Internal capacity	99L	162L
Internal dims (W×D×H)	450×490×450mm	600×540×500mm
External dims (W×D×H)	560×601×820mm	710×651×870mm
Power capacity (breaker)	AC100V, 12.5A (15A)	AC100V, 14A (15A)
Weight	48kg	63kg
Accessories	2× shelf boards (stainless punched metal), 4× shelf brackets
