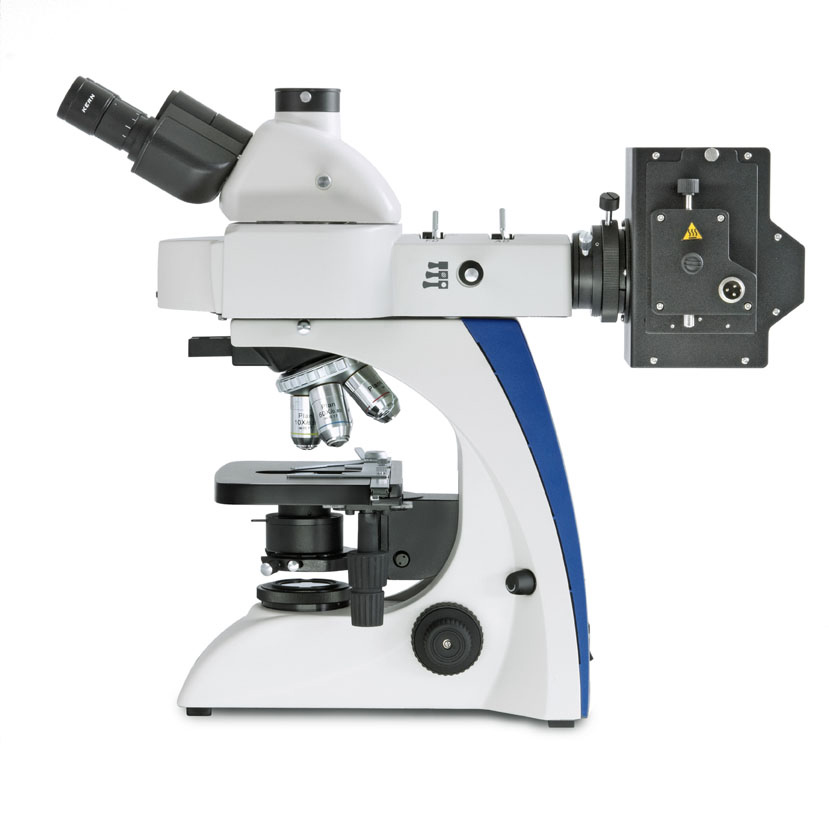

Fluorescence Microscope KERN OBN 141

AED 19,619.00

Availability:In stock

SKU

LBX-KRN-2422

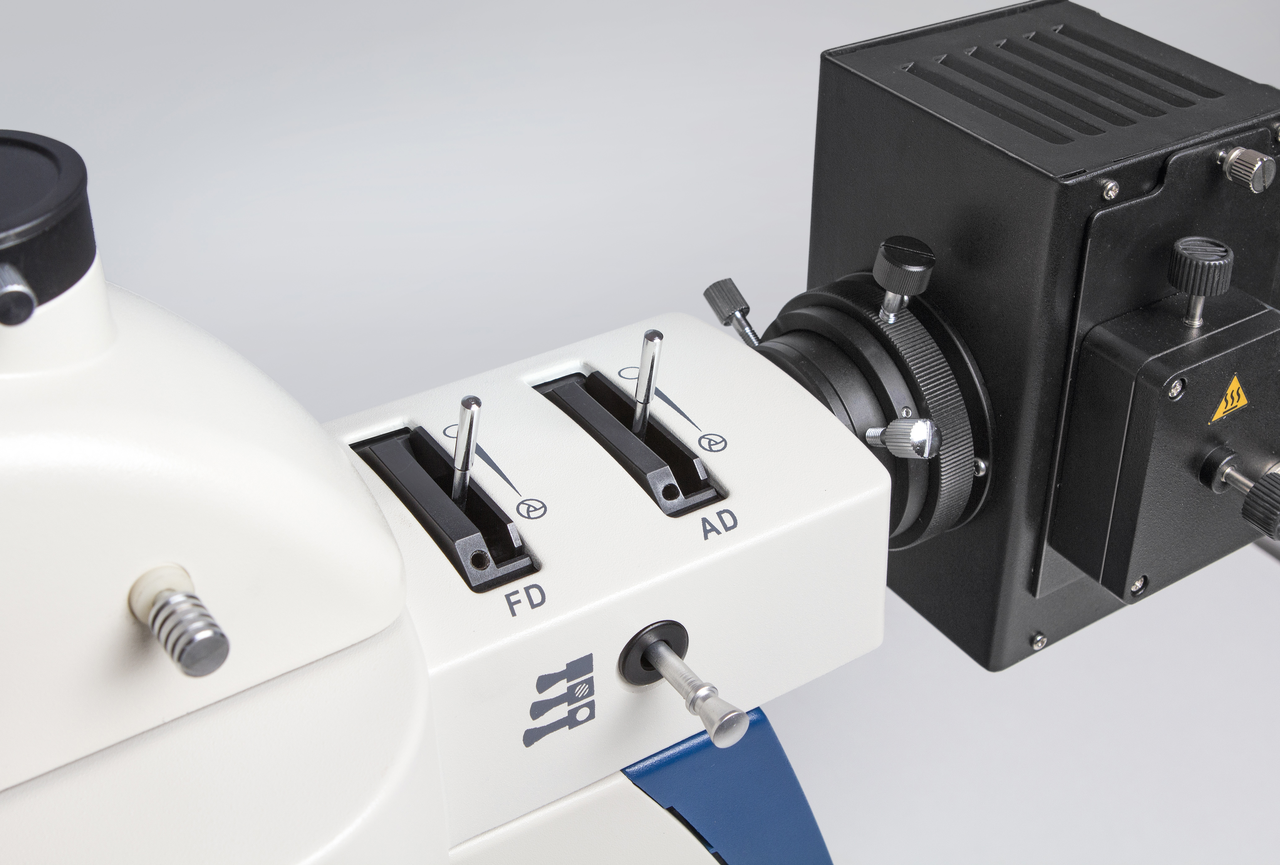

Elevate your research with the OBN 141 Fluorescence Microscope, designed for professional use. This advanced model features 3W LED transmitted and Epi fluorescence illumination, Koehler illumination with adjustable field diaphragm, and a large mechanical stage. Its modular design supports various accessories, ideal for haematology, microbiology, and more. Includes a centring objective and dust cover. A C-mount adapter is required for camera connection. Perfect for high-contrast, challenging samples like immunofluorescence and FISH.

BrandKern

More Information
Product Name	Fluorescence Microscope KERN OBN 141
Weight	1.000000
Part No.	LBX-KRN-2422
Supplier Item Code	OBN 141
Input voltage power supply Max	100 - 240 V
Gross weight	24 kg
Total packaging weight	7022 g
Net weight	16 kg
Tube angle of inclination	30°
Illuminance	Reflected light,Transmitted light
Optical system	Infinity
Tube type	Trinocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Infinity
Tube type	Trinocular
Ocular magnifications	10 x
Ocular visual field	20 mm
Standard objectives	4×, 10×, 20×, 40×, 100×
Lens quality	Infinity Plan
Nosepiece screw-in locations	5
Illuminance	Reflected light, Transmitted light
Illumination type transmitted light	LED
Illumination intensity transmitted light	3 W
Illumination type incident light	LED
Illumination intensity incident light	3 W
Fluorescent unit	Blue, Green (LED)
Condensor type	Abbe
Kondensor-Apertur	1.25
Kondensor-Montage	Centerable
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.002 mm
Dimension (W×D×H)	530×220×490 mm
