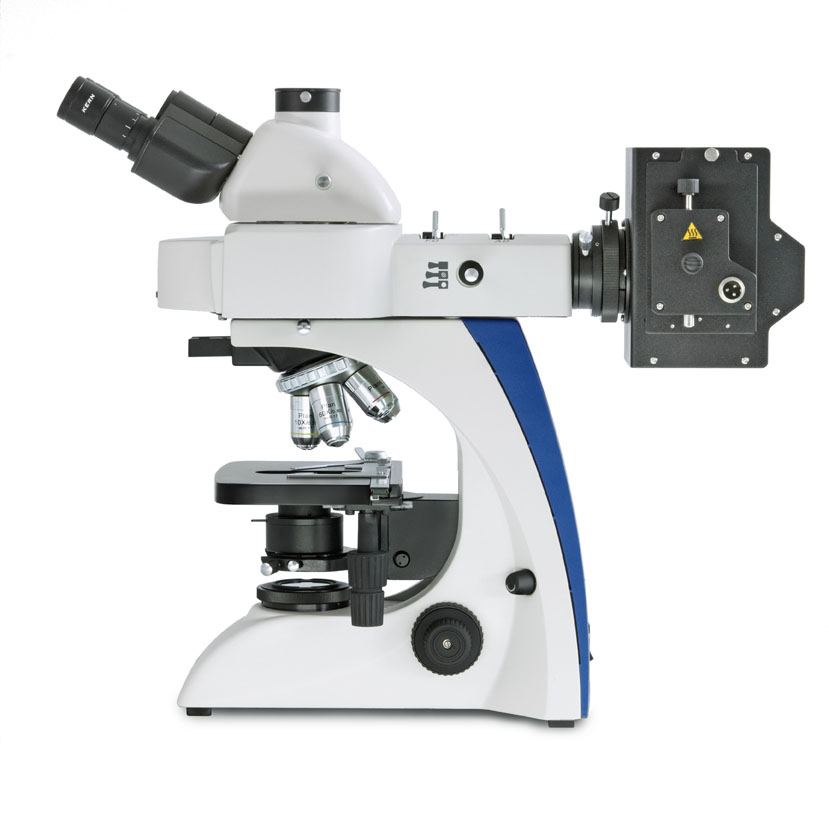

Fluorescence Microscope KERN OBN 148

AED 10,620.00

Availability:In stock

SKU

LBX-KRN-2424

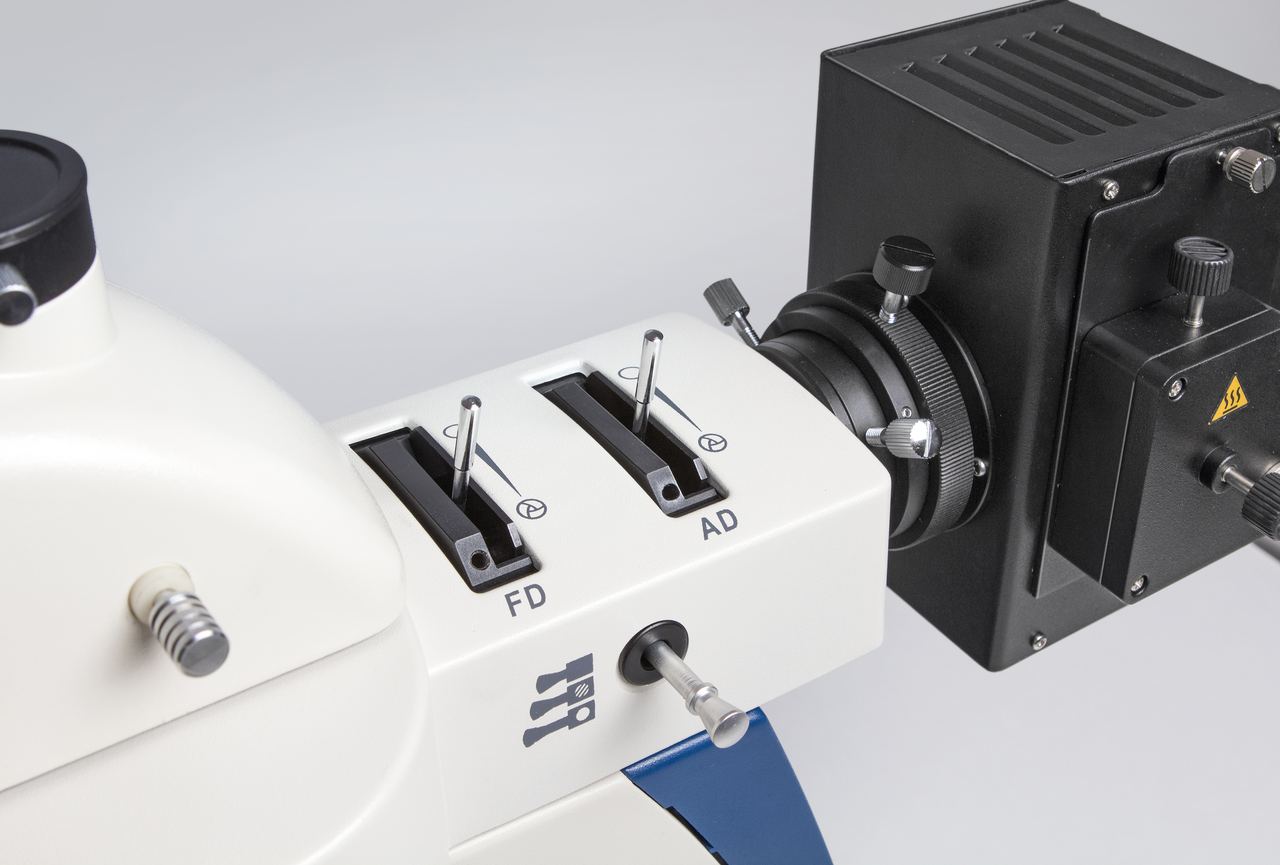

Discover the OBN 148 Fluorescence Microscope, designed for professionals demanding precision and versatility. With a powerful 20W halogen and 100W Epi fluorescence illumination, it ensures optimal sample visualization. Features include Koehler illumination, adjustable field diaphragm, and a large mechanical stage. Ideal for haematology, microbiology, and more, it excels in imaging translucent and challenging samples. Optional C-mount adapter for camera integration.

BrandKern

More Information
Product Name	Fluorescence Microscope KERN OBN 148
Weight	1.000000
Part No.	LBX-KRN-2424
Supplier Item Code	OBN 148
Input voltage power supply Max	100 - 240 V
Gross weight	24 kg
Total packaging weight	7022 g
Net weight	16 kg
Tube angle of inclination	30°
Illuminance	Reflected light,Transmitted light
Optical system	Infinity

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Infinity
Tube type	Trinocular
Ocular magnifications	10 x
Ocular visual field	20 mm
Standard objectives	4×, 10×, 20×, 40×, 100×
Lens quality	Infinity Plan
Nosepiece screw-in locations	5
Illuminance	Reflected light, Transmitted light
Illumination type transmitted light	Halogen
Illumination intensity transmitted light	20 W
Illumination type incident light	HBO
Illumination intensity incident light	100 W

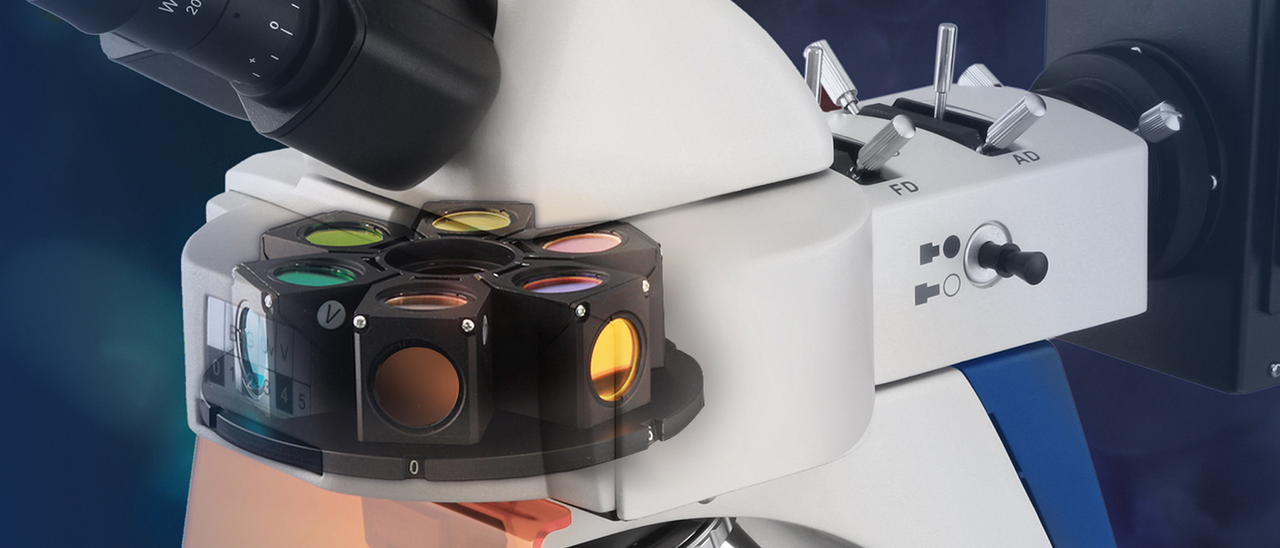

Fluorescent unit	Ultraviolet, Violet, Blue, Green (HBO)
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.002 mm
Dimension (W×D×H)	530×220×490 mm
