Mini-bag type small oil rotary vacuum pump

AED 4,943.00

Availability:In stock

Only %1 left

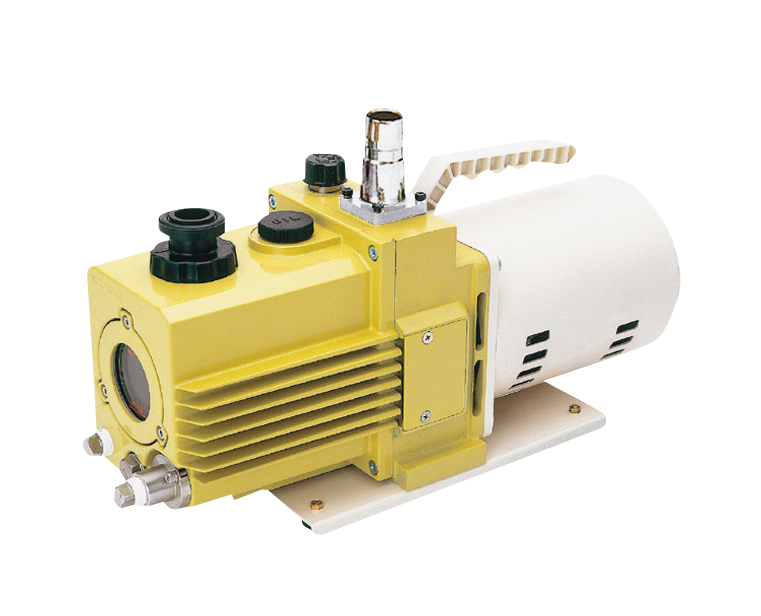

Mini Oil-Sealed Rotary Vacuum Pump (PQ Series) — compact, lightweight two-stage vacuum pump with built-in thermal protector for safe continuous use. Magnetic coupling design extends shaft-seal life and cuts noise, while integrated backflow prevention keeps oil out of your equipment. Ideal for lab integration. Available in PQ30 and PQ100 capacities.

BrandYamato Scientific

More Information
Product Name	Mini-bag type small oil rotary vacuum pump
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	PQ30 (Mini-Vac)	PQ100 (Mini-Buck)
Product Code (SKU)	242284	242222
Configurable Attribute: Effective Exhaust Speed	30/36 L/min (50/60Hz)	100/120 L/min (50/60Hz)
Ultimate Pressure	0.67 Pa*	0.67 Pa*
Electric Motor	Single-phase, 100–120V, 100W, 2P capacitor	Single-phase, 100V, 300W, 2P capacitor
Full Load Current (50/60Hz)	1.85A(100V)/1.89A(100V), 1.80A(110V)/1.71A(120V)	5.5A/6.3A
Oil Amount	370 mL	1000 mL
Oil Used	R-2	R-2
Oil Mist Trap (sold separately)	OMT-050A	OMT-100A
Intake Pipe Diameter	Outer Ø15 × Inner Ø11 mm	Outer Ø27 × Inner Ø20 mm
Operating Ambient Temp Range	7–40°C	7–40°C
External Dimensions (W×D×H)	120 × 288.5 × 163 mm	150 × 413.5 × 234.5 mm
Power Capacity	100V 1.85A / 60Hz 1.89A	100V 5.5A / 60Hz 6.3A
Weight	9.3 kg	22 kg
