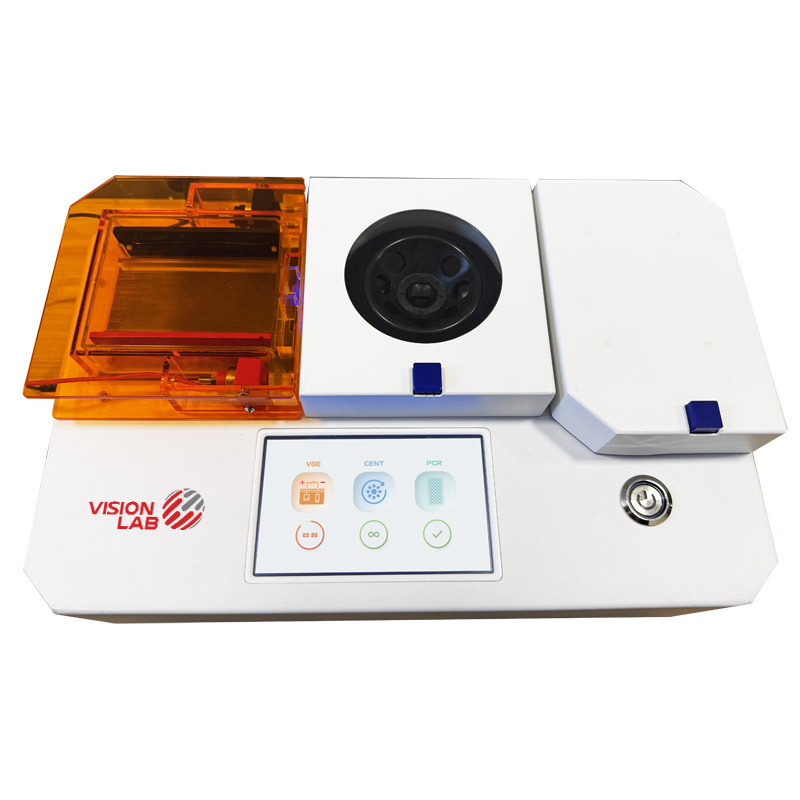

Mini PCR workstation

As low as AED 7,992.00

Availability:In stock

Only %1 left

All-in-one portable PCR solution integrating thermal cycler, mini centrifuge, gel electrophoresis system, and blue light transilluminator. Streamlines nucleic acid extraction to result visualization in one compact unit. Ideal for field research, molecular genetics, teaching labs, and biology enthusiasts. Fast, accurate, and reliable PCR testing anywhere.

BrandVision Med

More Information
Product Name	Mini PCR workstation
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Model	NDS-mini / NDS-S
Display	5-inch color touch screen
Dimensions	L350 × W220 × H120 mm
Weight	5.2 kg
Power Supply	100~240V; 50/60Hz
PCR Temperature Control Mode	Standard
Sample Capacity	32×0.2ml PCR tubes / 4×0.2ml 8-strip tubes
Block Temperature Range	4℃ ~ 105℃
Hot Lid Temperature Range	30℃ ~ 110℃
Temperature Display Accuracy	±0.1℃
Temperature Uniformity	±0.5℃
Max Heating Rate	4℃/s
Max Cooling Rate	2.8℃/s
Thermal Cycler Technology	Peltier heating/cooling
User Defined Program Files	>10000 files

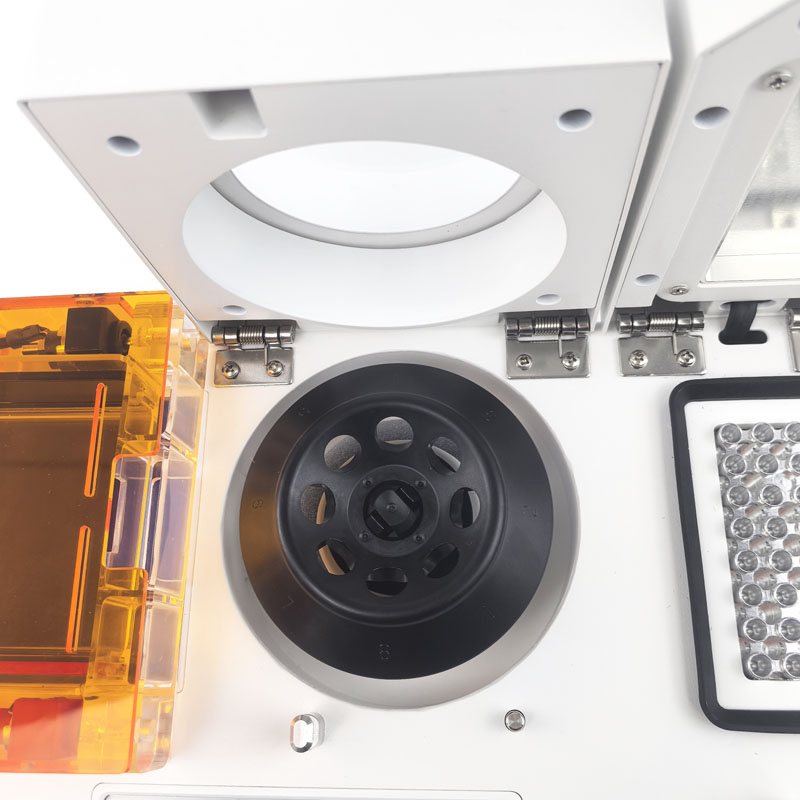

Mini Centrifuge Speed Range	1000~7000 rpm (NDS-mini), 1000~12000 rpm (NDS-S)
Rotor Capacity	8 × 0.2/0.5/1.5/2.0 mL tubes; 32×0.2ml PCR tubes; 4×0.2ml PCR 8-strip tubes
Timing Range	0~5999 s
Security Lock	Yes
Auto Stop (Lid Open)	Supported
Electrophoresis Output Voltage	50V (NDS-mini), 10~150V (NDS-S)
Output Current	10~400mA (NDS-S)
Output Type	Constant Voltage (NDS-mini), Constant Voltage/Current (NDS-S)
Gel Tray / Size	70 × 70 mm
Comb Size	0.75mm, 1.0mm, 1.5mm (9/16 wells)
Electrophoresis Timing	0~5999 s or Continuous
Gel Tank	Included
Observation Area	L105 × W85 mm
Max Emission Wavelength	470 nm
LED Light Source	Built-in blue LED module
LED Lifetime	>50000 h
Light Intensity Range	1~5 levels
