Optura Hub Spy UnitIncludes the following:8510-ST/10 Optura Spy - Standard Vessel Adaptor x 1 Pack 8500-21 Optura Spy USB loaded with Software, Manual Power Supply Unit -with Mains Lead

AED 37,252.00

Availability:In stock

SKU

LBX-ABR-0088

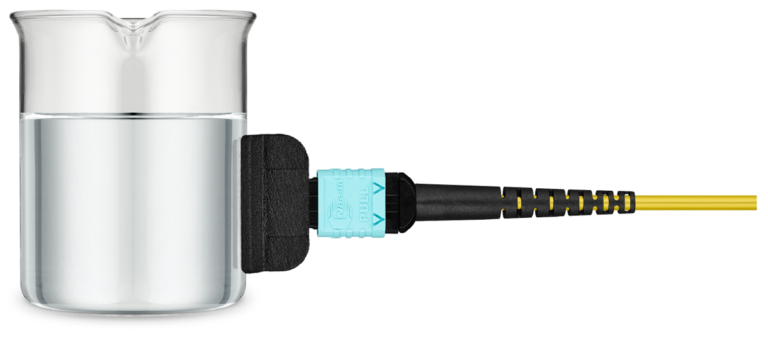

OPTURA® SPY is a compact, contactless biomass sensor designed for real-time monitoring across diverse bioprocess applications. Using a single-use adhesive vessel adaptor, it measures biomass directly through vessel walls without compromising sterility. Compatible with bioreactors, single-use bags, and tubing, OPTURA SPY connects to the OPTURA SPY Hub for seamless software or control system integration.

BrandAber

More Information
Product Name	Optura Hub Spy UnitIncludes the following:8510-ST/10 Optura Spy - Standard Vessel Adaptor x 1 Pack 8500-21 Optura Spy USB loaded with Software, Manual Power Supply Unit -with Mains Lead
Weight	1.000000
Part No.	LBX-ABR-0088
Supplier Item Code	8500-00
Product Group	Optura Hub Spy Unit

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Wavelength	1330 nm
Cell Concentration Range	Minimum: > 0.01 g/L DCW S. cerevisiae (Type A & B) ~0.03 Abs (OD600) > 0.05 g/L DCW S. cerevisiae (Type C & D) ~0.127 Abs (OD600) Maximum: > 175 g/L DCW S. cerevisiae (all sensors)
Resolution	Best case: 8.45 × 10^-10 % reflectivity
Stability	0.24% at 100 g/L yeast solution over a 35-minute period
Typical Performance	6 base units
Power Supply	Desktop mains PSU supplied by Aber (Part number: 2885-35) AC input: 110 to 240 V AC, 50/60 Hz Installation category II Output: 24 V DC (typically supplied to the hub)
Sensor Cable Length	2 m
Operating Temperature	Sensor: 5 °C to 70 °C (40 °F to 160 °F) OPTURA hub: 15 °C to 40 °C (59 °F to 104 °F)
Humidity	35% to 65%
Performance Verification	Reflectance standard (low and high)
Laser Classification	Class 1M
Communications	2 × 4–20 mA (reflectance and growth rate) USB-B MODBUS
