Phase Contrast Microscope KERN OBL 156

AED 11,290.00

Availability:In stock

SKU

LBX-KRN-2413

Discover the OBL 156, a high-quality phase contrast microscope designed for versatility and precision. Equipped with a strong, dimmable 3W-LED illumination and a pre-centred phase contrast condenser, it ensures superior imaging of translucent and low-contrast samples. Its large mechanical stage supports dual specimens, while a variety of accessories, including eyepieces and filters, enhance functionality. Ideal for applications in hematology, microbiology, and more.

BrandKern

More Information
Product Name	Phase Contrast Microscope KERN OBL 156
Weight	1.000000
Part No.	LBX-KRN-2413
Supplier Item Code	OBL 156
Input voltage power supply Max	100 V - 240 V AC 50/60 Hz 0,3 A
Gross weight	8 kg
Total packaging weight	2012 g
Net weight	6 kg
Tube angle of inclination	30°
Illuminance	Transmitted light
Optical system	Infinity
Tube type	Trinocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Infinity
Tube type	Trinocular
Ocular magnifications	10 x
Ocular visual field	20 mm
Standard objectives	4×, 100×, PH 10×, PH 40×
Lens quality	Infinity E-Plan/Plan
Nosepiece screw-in locations	4
Illuminance	Transmitted light
Illumination type transmitted light	LED
Illumination intensity transmitted light	3 W

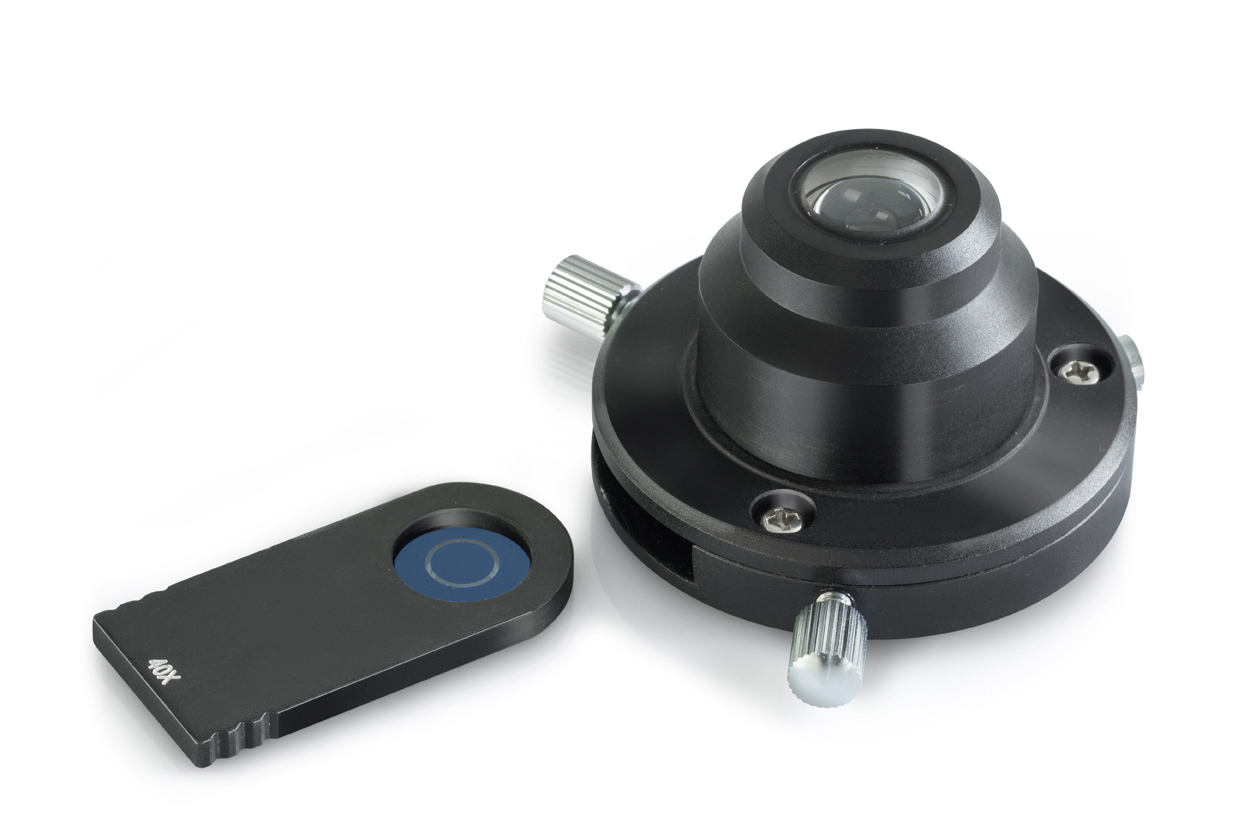

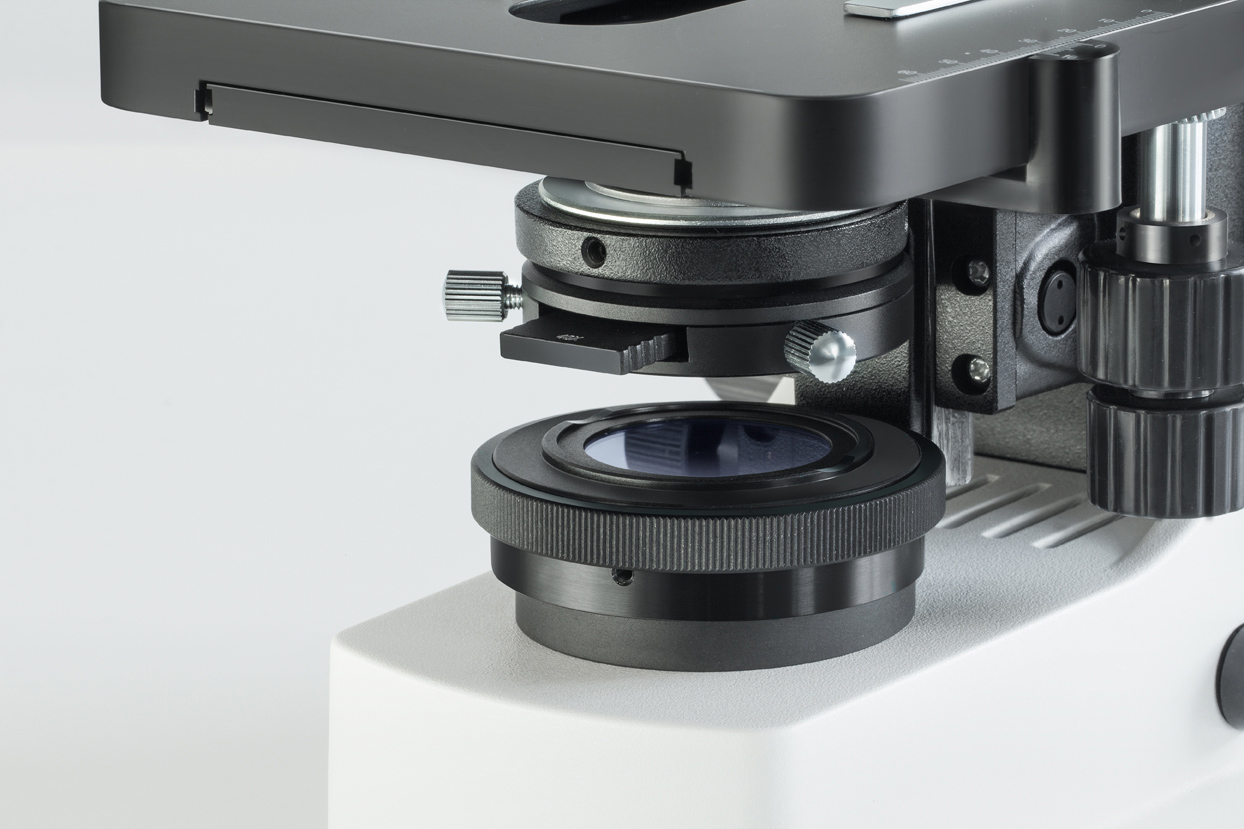

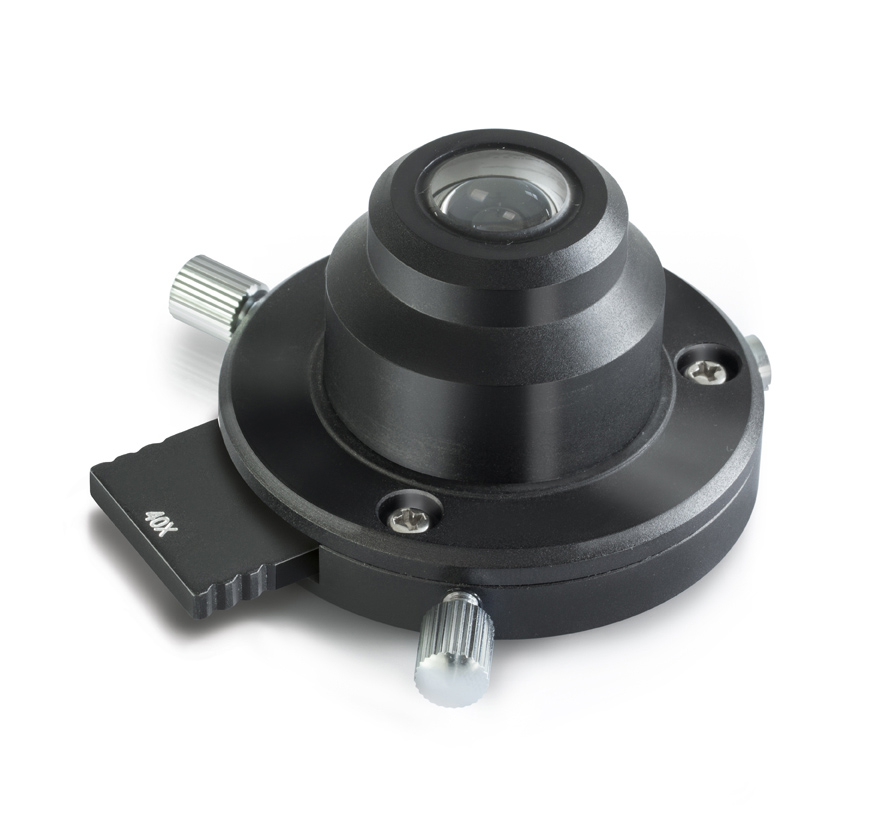

Condenser type	Phase contrast condenser
Condenser Aperture	1.25
Condenser Mounting	fixed
Focusing mechanism	coaxial coarse and fine drive
Fine drive minimum	0.002 mm
Dimension (W×D×H)	394×185×377 mm
