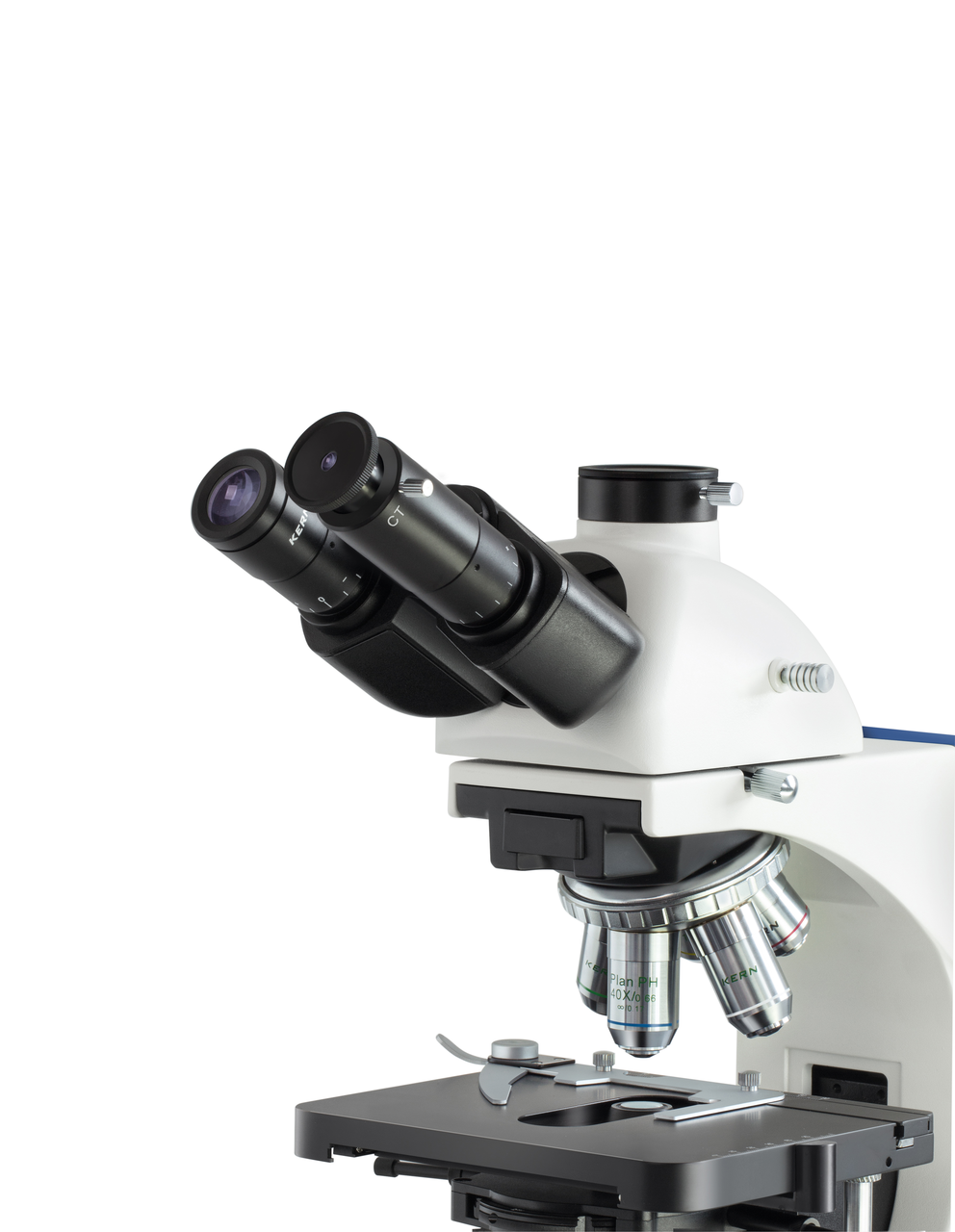

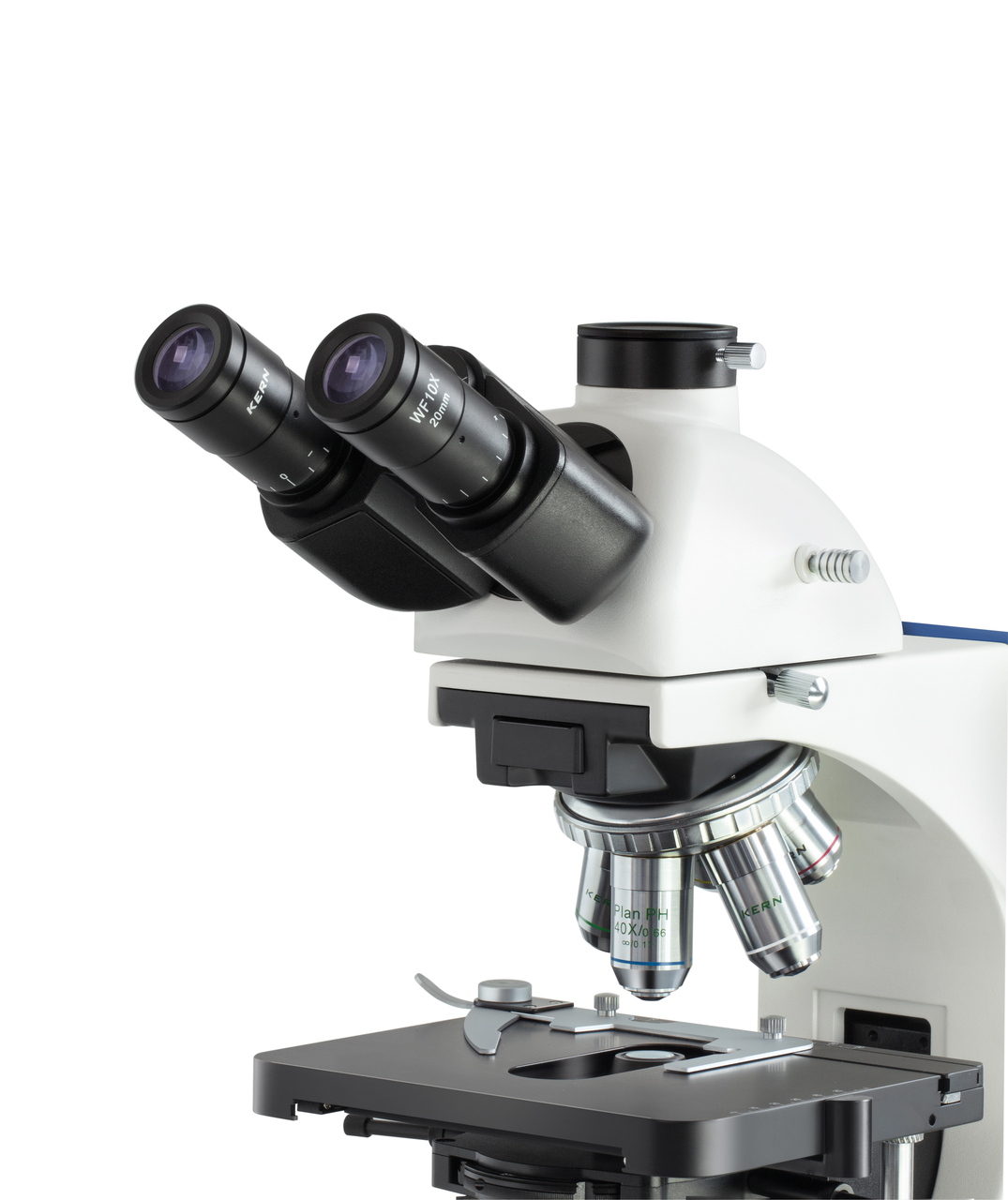

Phase Contrast Microscope KERN OBN 158

AED 16,480.00

Availability:In stock

SKU

LBX-KRN-2425

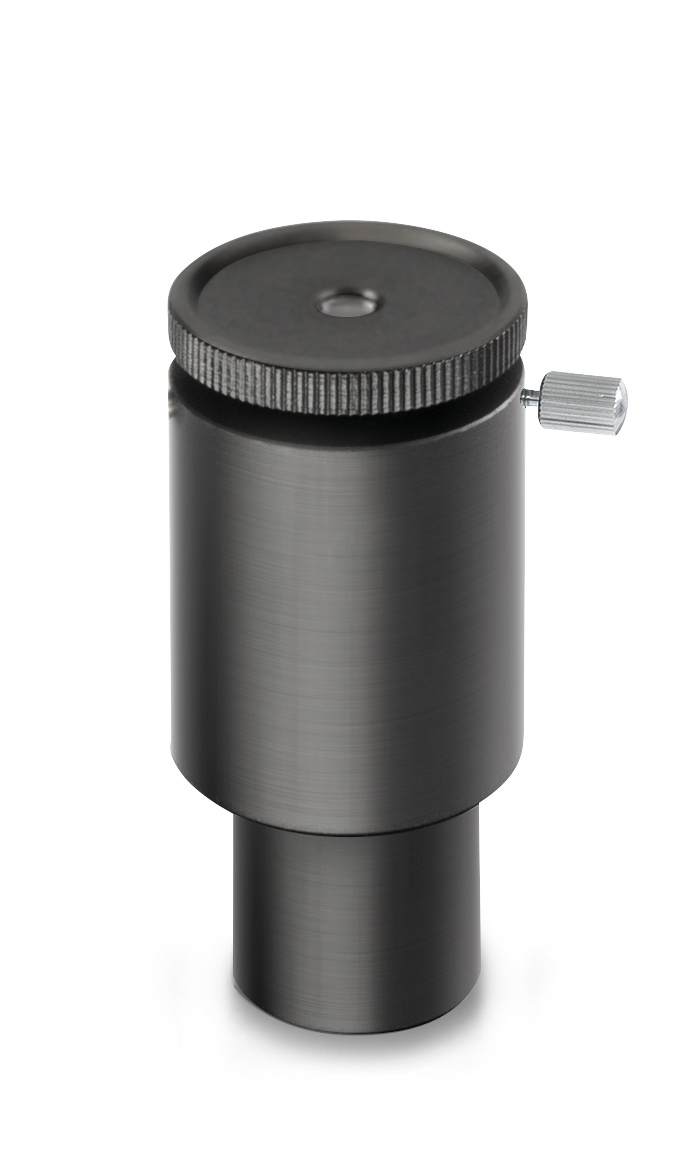

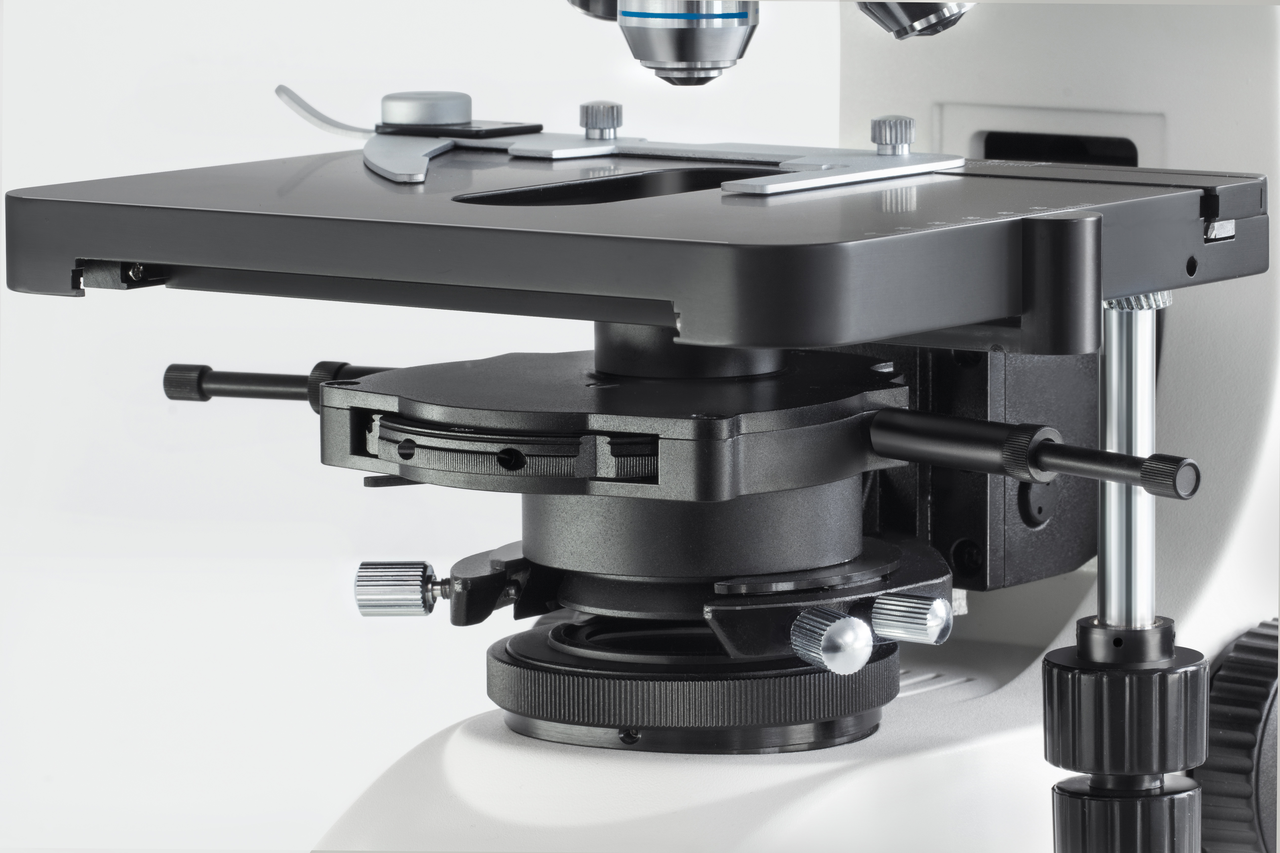

Discover unmatched professionalism and versatility with the OBN 158 Phase Contrast Microscope. Featuring a 20W halogen illumination, Koehler lighting, and a quintuple condenser wheel, this microscope excels in high-quality phase contrast imaging. Ideal for diverse applications including hematology, microbiology, and veterinary analysis, it offers an ergonomic design, large mechanical stage, and modular components for customization. Includes centring eyepiece, dust cover, and multi-lingual instructions.

BrandKern

More Information
Product Name	Phase Contrast Microscope KERN OBN 158
Weight	1.000000
Part No.	LBX-KRN-2425
Supplier Item Code	OBN 158
Input voltage power supply Max	100 - 240 V
Gross weight	11 kg
Total packaging weight	1017 g
Net weight	10 kg
Tube angle of inclination	30°
Illuminance	Transmitted light
Optical system	Infinity
Tube type	Trinocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Infinity
Tube type	Trinocular
Ocular magnifications	10 x
Ocular visual field	20 mm

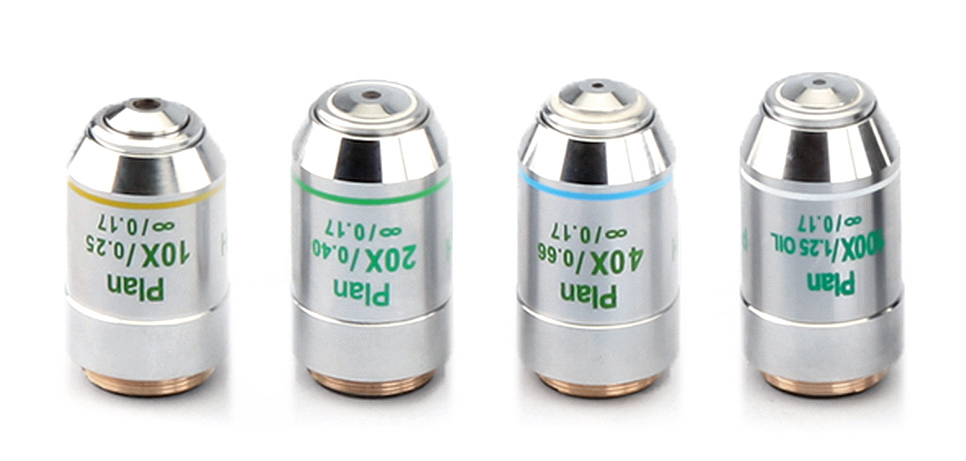

Standard objectives	4×, PH 10×, PH 20×, PH 40×, PH 100×
Lens quality	Infinity Plan
Nosepiece screw-in locations	5
Illuminance	Transmitted light
Illumination type transmitted light	Halogen
Illumination intensity transmitted light	20 W
Condenser type	PH universal rotary condenser
Condenser - Aperture	1.25
Condenser - Montage	Centerable
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.002 mm
Dimension (W×D×H)	390×200×400 mm
