Polarisation Microscope KERN OPO 185

AED 21,698.00

Availability:In stock

SKU

LBX-KRN-2475

Discover the ultimate in microscopy with the OPO 185 Polarising Microscope, designed for professional use. This versatile tool offers both LED incident and transmitted illumination, a height-adjustable Abbe condenser, and a 360° revolving stage. Ideal for mineralogy, crystal observation, and material testing, it includes a protective dust cover, eye cups, and multilingual instructions. A C-mount adapter is needed for camera connection.

BrandKern

More Information
Product Name	Polarisation Microscope KERN OPO 185
Weight	1.000000
Part No.	LBX-KRN-2475
Supplier Item Code	OPO 185
Input voltage power supply Max	100 V - 240 V AC 50/60 Hz 0,3 A
Gross weight	16 kg
Total packaging weight	3,5 kg
Net weight	13 kg
Tube angle of inclination	30°
Illuminance	Reflected light,Transmitted light
Optical system	Infinity
Tube type	Trinocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Optical System Technical Data
Optical system	Infinity
Tube type	Trinocular
Ocular magnifications	10 x
Ocular visual field	20 mm
Standard objectives	4×, 100×, PH 10×, PH 40×
Nosepiece screw-in locations	5
Illuminance	Transmitted light, Reflected Light
Illumination type transmitted light	LED
Illumination intensity transmitted light	5 W
Illumination type incident light	LED
Illumination intensity incident light	5 W

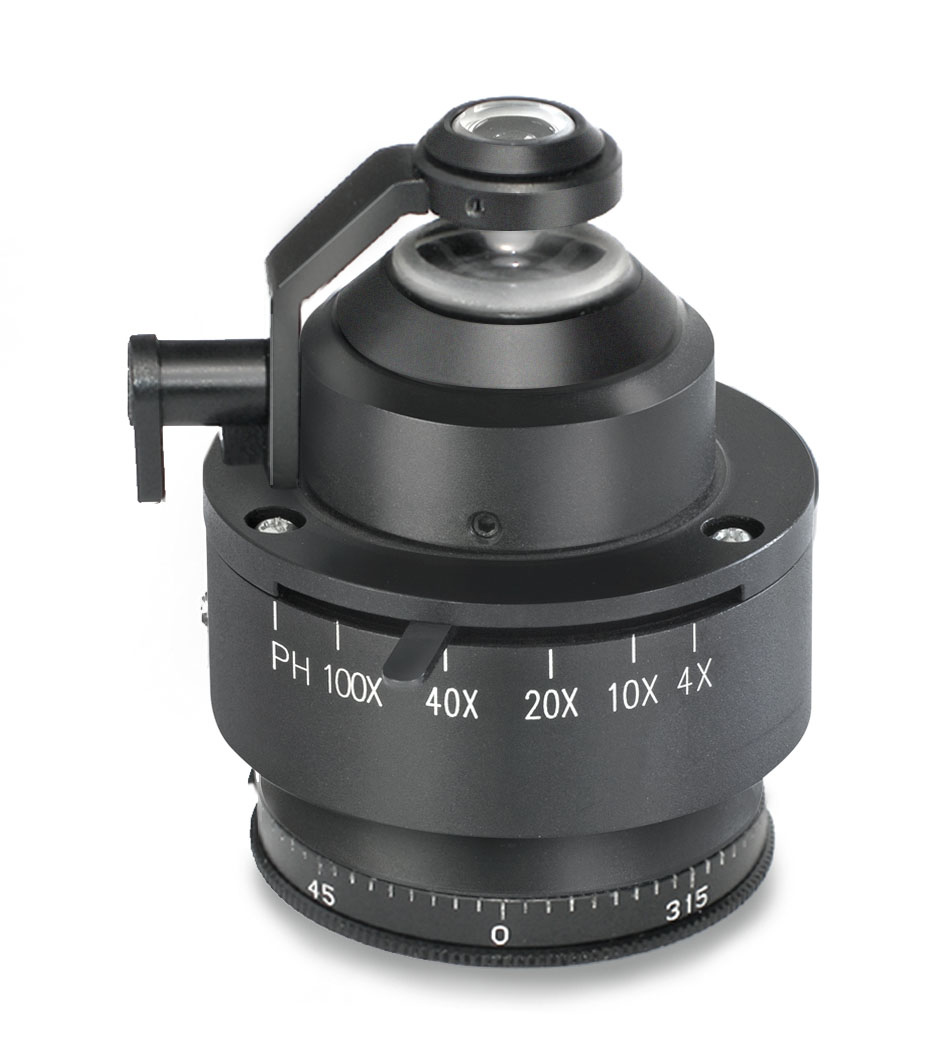

Condenser type	Abbe
Condenser - Aperture	1.25/ 0.9
Condenser - Montage	Swing-Out
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.002 mm
Dimension (W×D×H)	500×200×500 mm
