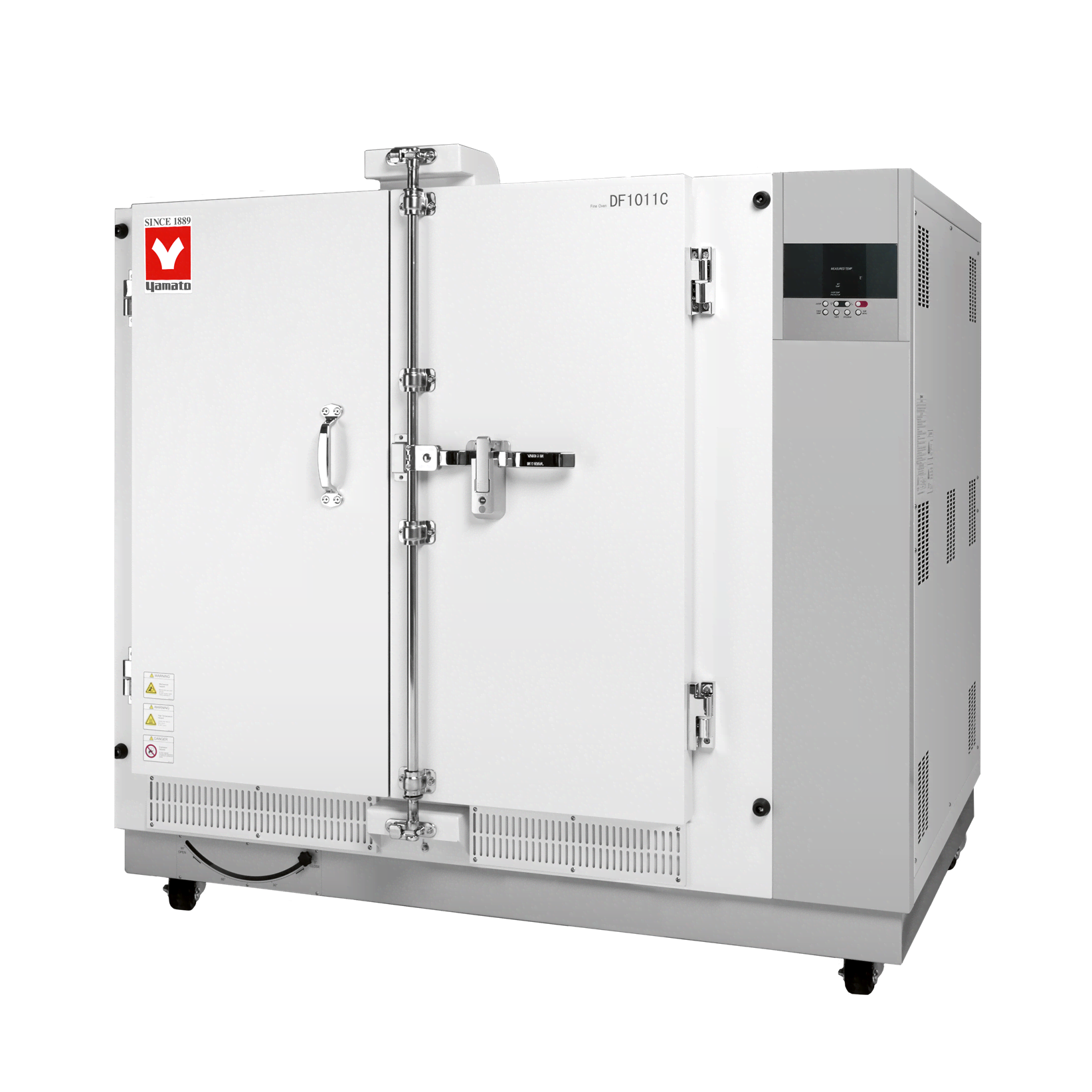

Precision constant temperature chamber

AED 14,841.00

Availability:In stock

Only %1 left

Precision Constant Temperature Chamber – forced-air circulation export model with 260°C (DF) or 360°C (DH) max temperature. 3-segment PID control, 30-step programmable operation, SSR drive, and K-thermocouple sensors. Available in 91L/216L capacities, AC220V. Ideal for precision heat treatment in international research and industrial facilities.

BrandYamato Scientific

More Information
Product Name	Precision constant temperature chamber
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	DF411C	DF611C	DH411C	DH611C
System	Forced-air circulation + ventilation
Temp. control range	RT+10~260°C	RT+10~260°C	RT+10~360°C	RT+10~360°C
GB standard — temp. fluctuation	±0.1°C (at 260°C)		±0.2°C (at 360°C)
GB standard — temp. deviation	±1.5°C (at 100°C), ±2°C (at 200°C), ±3°C (at 260°C)		±1.5°C (at 100°C), ±2°C (at 200°C), ±3°C (at 300°C), ±4°C (at 360°C)
JTM standard — temp. control accuracy	±0.1°C (at 260°C)		±0.2°C (at 360°C)
JTM standard — temp. distribution accuracy	±1.5°C (at 260°C)		±2.5°C (at 360°C)
Time to max temp.	~60 min (to 260°C)		~80 min (to 360°C)
Interior	Stainless steel plate
Exterior	Cold-rolled steel plate, chemical-resistant baked coating
Insulation	Glass fiber	Glass fiber	Rock wool	Rock wool
Heater	Finned stainless steel heating tube
Heater capacity	2.1kW	3.0kW	2.7kW	3.75kW
Blower fan/motor	Axial flow fan, motor 20W×1
Cable hole	φ30mm (rear)
Other mechanisms	Exhaust damper (manual)
Temp. control method	3-segment PID control
Temp. setting method	Dedicated operation function menu key + ▲▼ keys, digital setting
Temp. display	Measured temp: Green 4-digit LED / Set temp: Red 4-digit LED
Timer	1min~99hr59min & 100~999hr50min (with timer wait function)
Operation modes	Constant value, program operation, auto-stop, auto-start
Program mode	3-segment 30-step program (30 steps×1 / 15 steps×2 / 10 steps×3)
Additional functions	Calibration offset, key lock, power outage compensation
Heater circuit control	SSR drive
Sensor	K-type thermocouple (temp. control + over-temp protection)
Safety devices	Self-diagnostic circuit (temp. sensor abnormality, heater wire break, auto over-temp prevention, SSR short-circuit), over-temp protector, overcurrent leakage protection switch, key lock
Internal dims (W×D×H)	450×450×450mm	600×600×600mm	450×450×450mm	600×600×600mm
External dims (W×D×H)	1050×630×850mm	1200×780×1000mm	1050×630×850mm	1200×780×1000mm
Internal capacity	91L	216L	91L	216L
Shelf load capacity	30kg/level
Shelf levels/pitch	9 levels/45mm	9 levels/60mm	9 levels/45mm	9 levels/60mm
Power source (50/60Hz)	AC220V, 10A	AC220V, 14A	AC220V, 12.5A	AC220V, 17.5A
Weight	~112kg	~156kg	~112kg	~156kg
Shelf boards (SS wire)	2 pieces	3 pieces	2 pieces	3 pieces
Shelf brackets	4 pieces	6 pieces	4 pieces	6 pieces
Optional stand	OP42/45C	OP62/65C	OP42/45C	OP62/65C
Other options	Shelf board (1 board includes 2 brackets), cable hole (30/50mm), mini printer, recorder, combined alarm lamp (standby/running/fault), auto damper, observation window, external communication (RS485), temp. output terminal (4-20mA), external alarm output terminal, time-up output terminal, centralized monitoring software, touchscreen controller
