Standard Futura

AED 66,339.00

Availability:In stock

SKU

LBX-ABR-0001

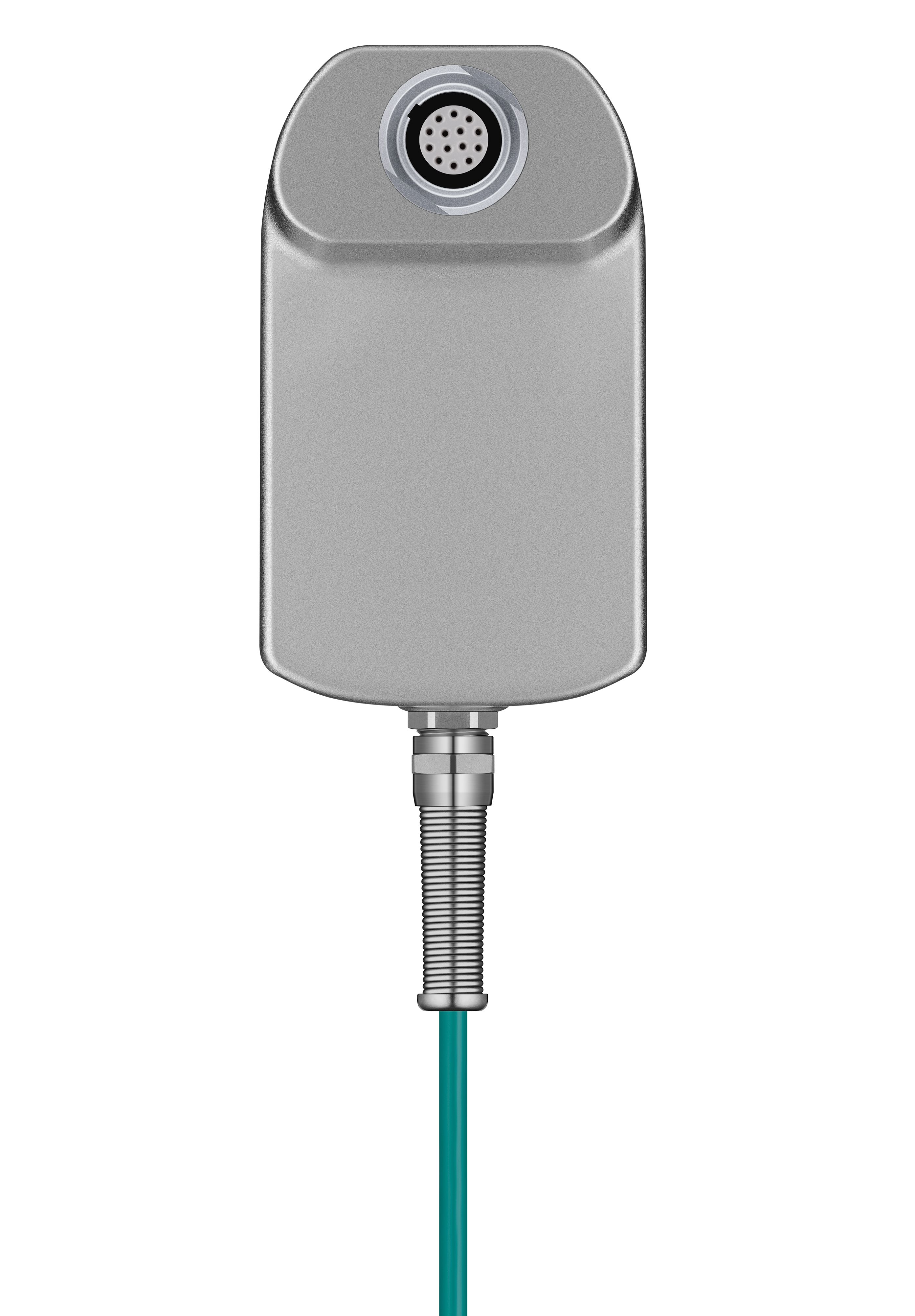

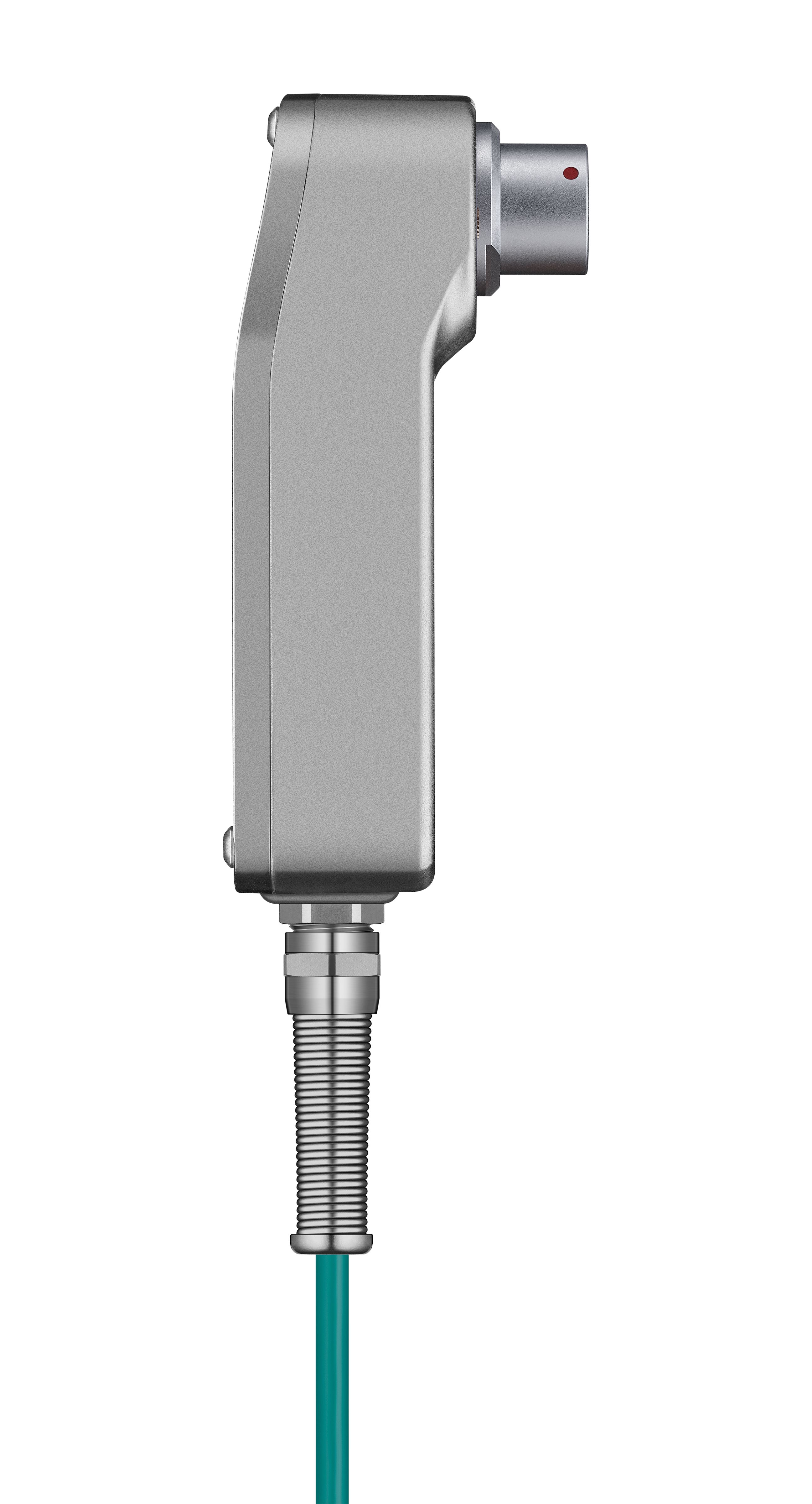

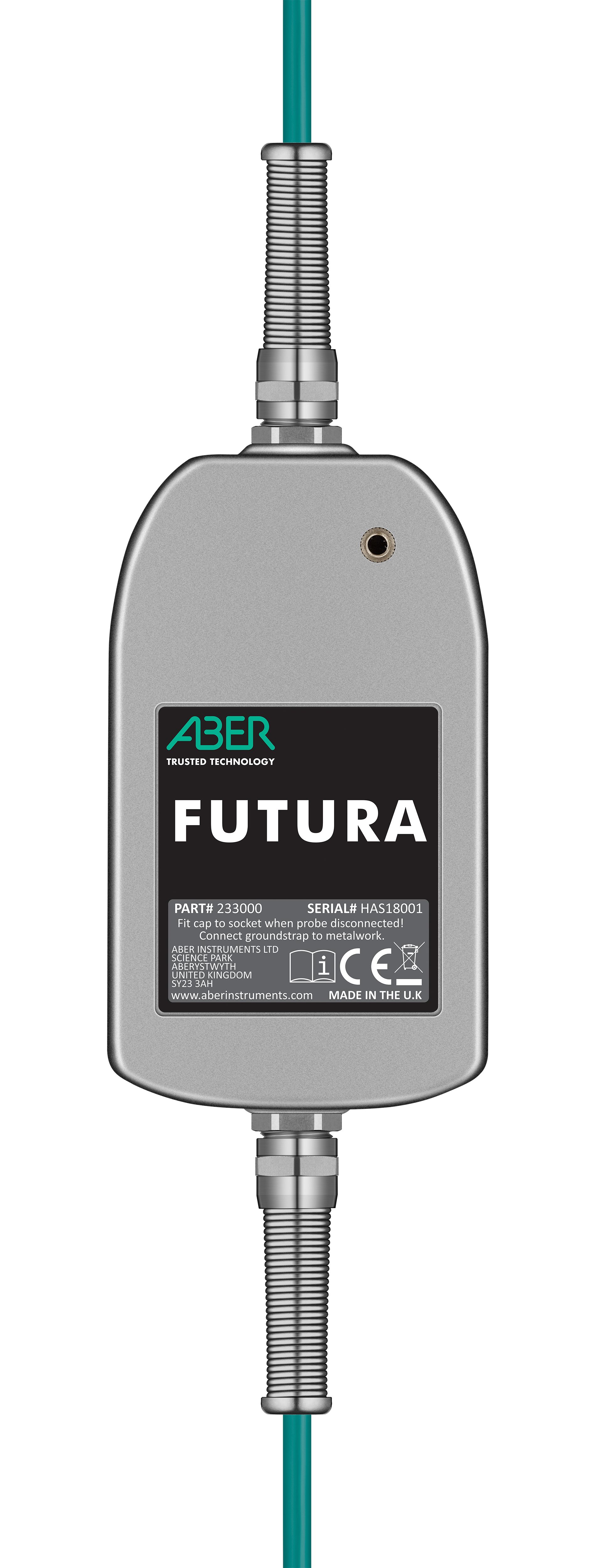

Standard Futura (SF) is a compact biomass head amplifier with lightweight housing suited to most bioreactors. It works perfectly with 25 mm side-mounted probes and 12 mm probes positioned more than 15 mm from the vessel centreline. Supplied with a 2 m cable, it offers flexible, reliable installation for lab-scale cell culture and fermentation applications.

BrandAber

More Information
Product Name	Standard Futura
Weight	1.000000
Part No.	LBX-ABR-0001
Supplier Item Code	2330-00
Product Group	Futura Biomass Sensors

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Frequency Range	50 kHz to 20 MHz
Measuring Ranges	Capacitance: 0.0 to 400 pF/cm Conductivity: 1.0 to 40 mS/cm (Higher ranges available with compatible probes)
Cell Concentration Range	Depends on cell size, typically: Yeast (6 µm): 10⁶ to 10¹⁰ cells/ml Bacteria (1 µm): 10⁹ to 10¹³ cells/ml Animal Cells (12 µm): 10⁵ to 10⁹ cells/ml Plant Cells (50 µm): 10³ to 10⁷ cells/ml
Resolution	0.1 pF/cm Bacteria: typically 2 g/L dry weight or 2 × 10⁹ cells/ml (E. coli) Yeast or Animal Cells: 0.05 g/L or 1 × 10⁵ cells/ml Relationship to biomass depends on cell type and cell line
Accuracy	Better than ± 3% or ± 2% of the reading
Stability	Better than ± 0.2 pF/cm at constant temperature with standard conductivity solution of ~12 mS/cm
Linearity	Better than ± 1% over 100 pF/cm
Precision	< ± 0.5 pF/cm (no filter active)
Power Supply	24 V DC, typically supplied by an Aber CONNECT Hub Input supply: 110 V AC to 240 V AC mains
Environmental	IP65 rated Recommended ambient operating temperature: 5 °C to 40 °C
Weight	Main enclosure: 211 g Remote enclosure: 203 g
