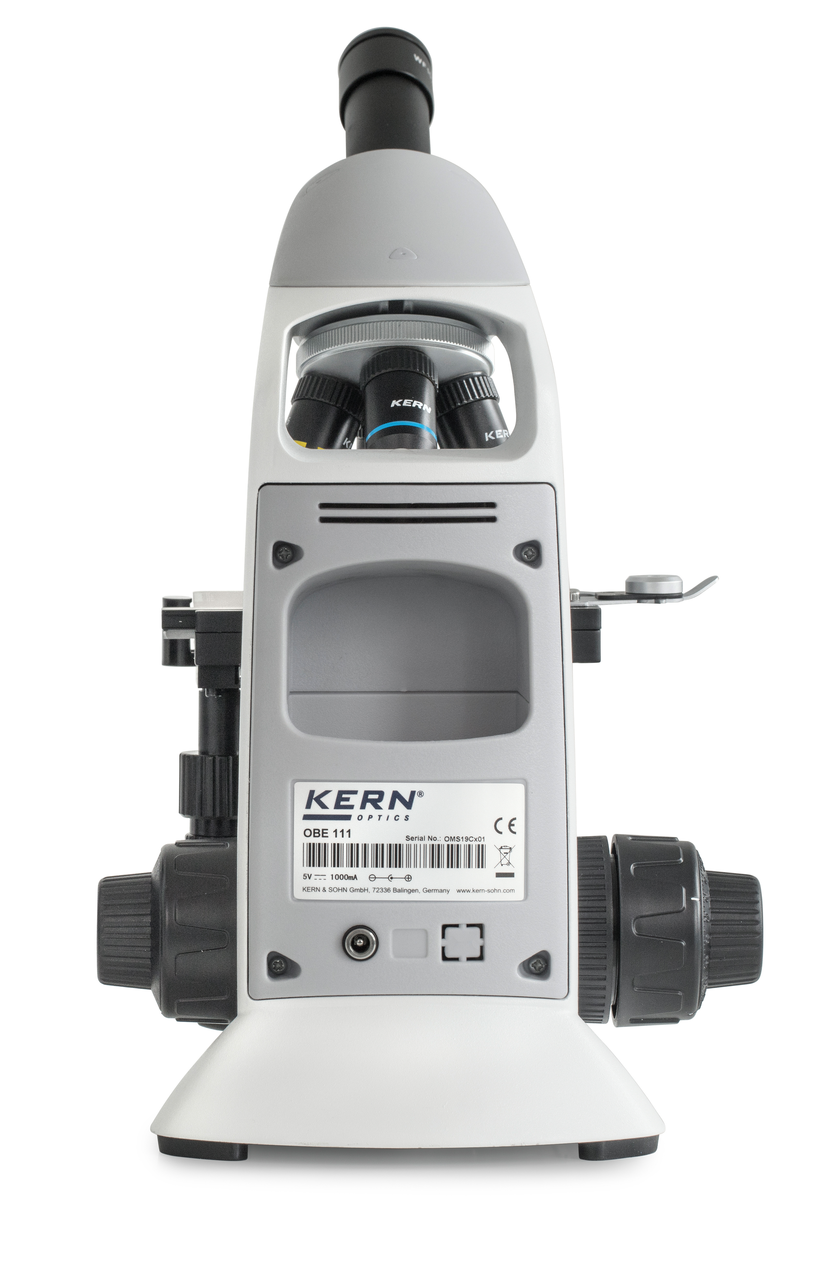

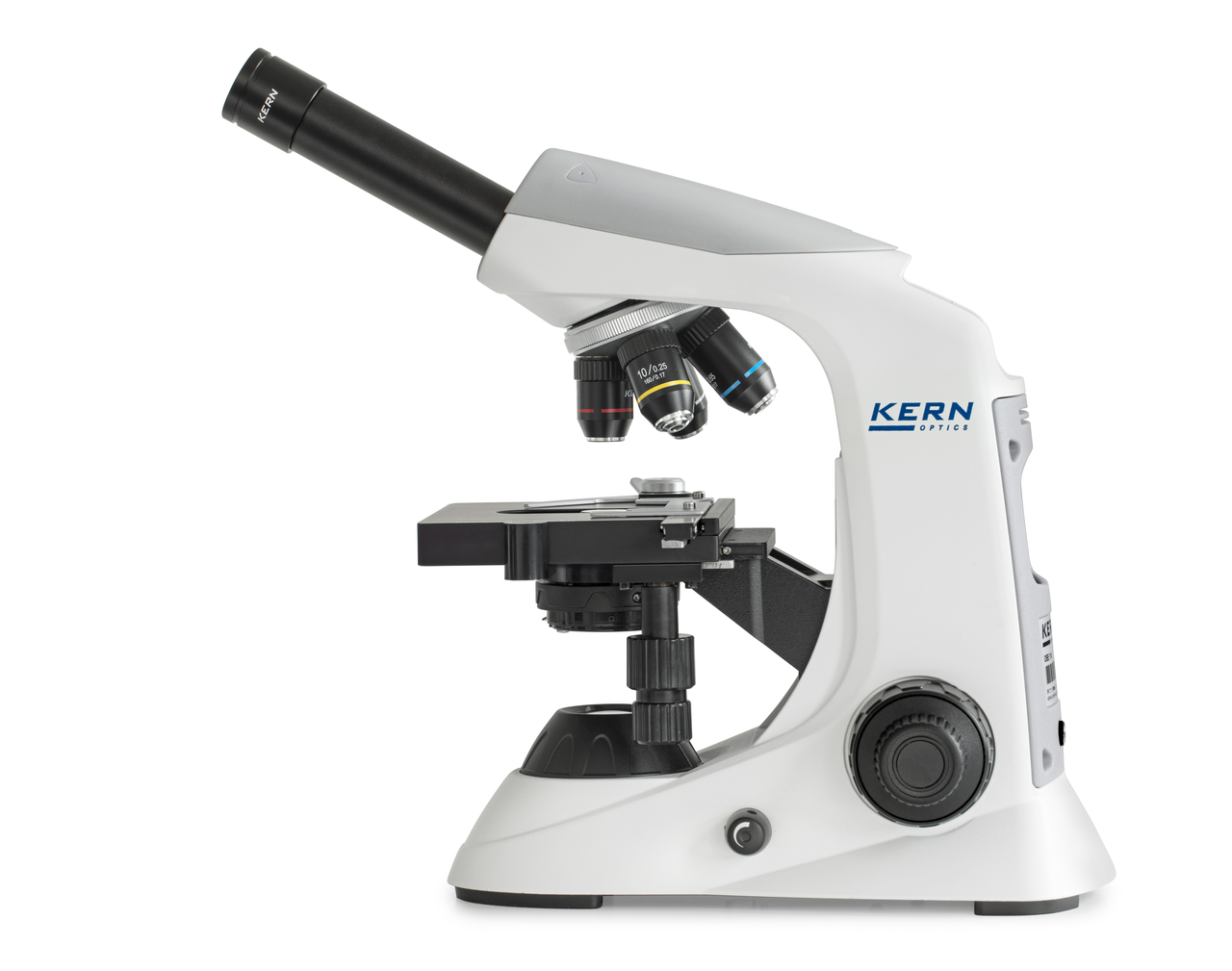

Transmitted Light Microscope KERN OBE 121

AED 3,630.00

Availability:In stock

SKU

LBX-KRN-2395

Discover precision with the KERN OBE 121, an ideal microscope for schools, labs, and training. Featuring a dynamic, ergonomic design, it boasts a 3W LED for bright, adjustable illumination and a focusable 1.25 Abbe condenser. The fully-equipped mechanical stage offers coarse and fine adjustments, while the USB connection enables flexible power options. Includes dust cover, eye cups, and multilingual instructions. Perfect for examining translucent, high-contrast samples.

BrandKern

More Information
Product Name	Transmitted Light Microscope KERN OBE 121
Weight	1.000000
Part No.	LBX-KRN-2395
Supplier Item Code	OBE 121
Input voltage power supply Max	100 V - 240 V AC 50/60 Hz 0,3 A
Gross weight	6 kg
Total packaging weight	1012 g
Net weight	4,6 kg
Tube angle of inclination	30°
Illuminance	Transmitted light
Optical system	Finite
Tube type	Monocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Finite
Tube type	Monocular
Ocular magnifications	10x
Ocular visual field	18 mm
Standard objectives	4×, 10×, 40×
Lens quality	Achromatic
Nosepiece screw-in locations	4
Illuminance	Transmitted light
Illumination type transmitted light	LED
Illumination intensity transmitted light	3 W
Condenser type	Abbe
Condenser Aperture	1.25
Condenser Mounting	Fixed
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.002 mm
Dimension (W×D×H)	360×150×320 mm
