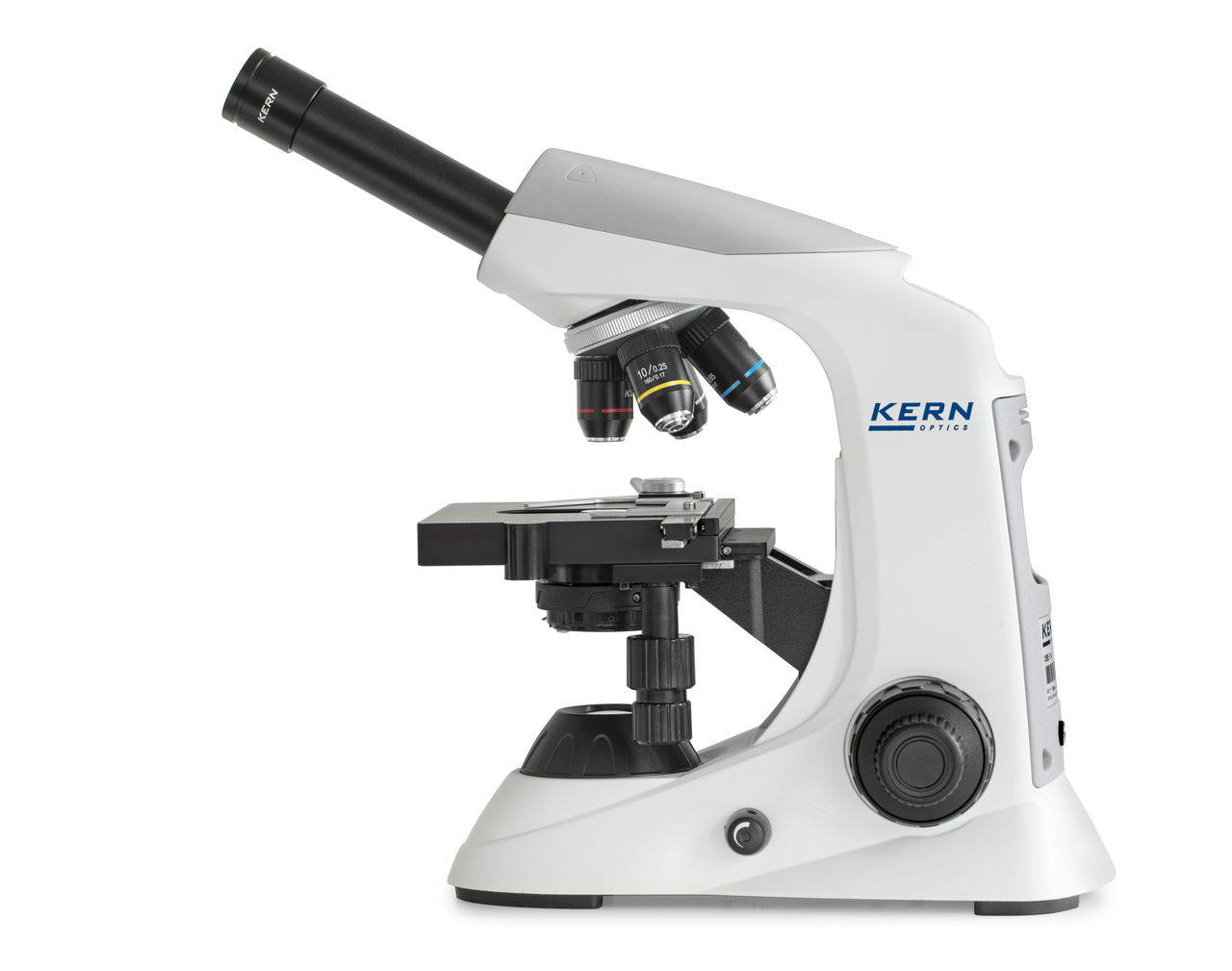

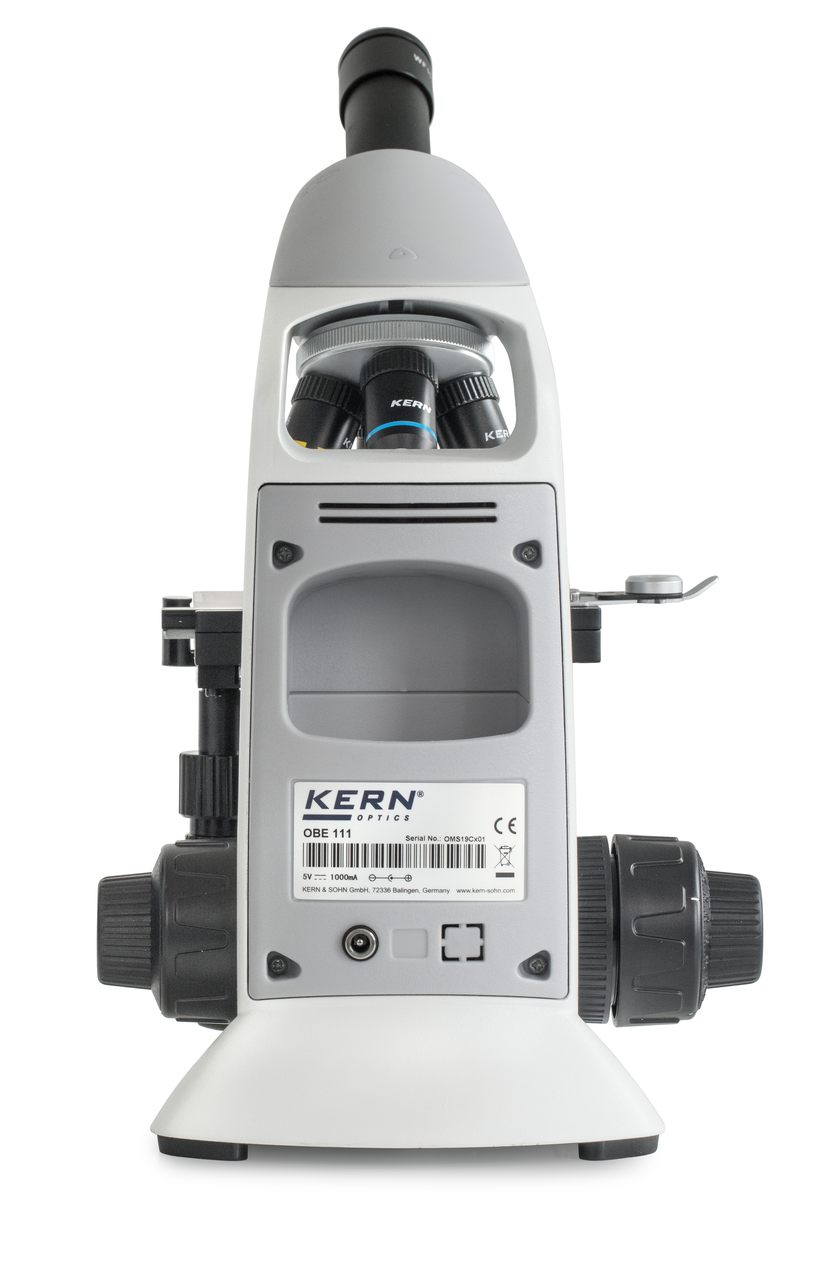

Transmitted Light Microscope KERN OBE 131

AED 4,000.00

Availability:In stock

SKU

LBX-KRN-2401

Discover the KERN OBE 131, an elegant and versatile compound microscope perfect for schools, training centers, and laboratories. Featuring a robust design, bright 3W LED illumination, and a height-adjustable 1.25 Abbe condenser, this microscope ensures exceptional light concentration. With a convenient storage compartment, USB power option, and precision focusing knobs, it's ideal for examining translucent and high-contrast samples. Includes protective dust cover and multi-lingual instructions.

BrandKern

More Information
Product Name	Transmitted Light Microscope KERN OBE 131
Weight	1.000000
Part No.	LBX-KRN-2401
Supplier Item Code	OBE 131
Input voltage power supply Max	100 V - 240 V AC 50/60 Hz 0,3 A
Gross weight	6 kg
Total packaging weight	1012 g
Net weight	4,6 kg
Tube angle of inclination	30°
Illuminance	Transmitted light
Optical system	Finite
Tube type	Monocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Finite
Tube type	Monocular
Ocular magnifications	10 x
Ocular visual field	18 mm
Standard objectives	4×, 10×, 40×, 100 x
Lens quality	Achromatic
Nosepiece screw-in locations	4
Illuminance	Transmitted light
Illumination type transmitted light	LED
Illumination intensity transmitted light	3 W
Condenser type	Abbe
Condenser Aperture	1.25
Condenser Mounting	Fixed
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.002 mm
Dimension (W×D×H)	360×150×320 mm
