Transmitted Light Microscope KERN OBS 113

AED 1,520.00

Availability:In stock

SKU

LBX-KRN-2435

Discover the KERN OBS 113 Compound Microscope, an ideal tool for educational settings and budding biologists. This solid, user-friendly microscope features a 0.5W LED for optimal illumination and a height-adjustable 1.25 Abbe condenser with aperture diaphragm for precise light concentration. Perfect for primary and secondary schools, it excels in examining translucent, high-contrast samples.

BrandKern

More Information
Product Name	Transmitted Light Microscope KERN OBS 113
Weight	1.000000
Part No.	LBX-KRN-2435
Supplier Item Code	OBS 113
Input voltage power supply Max	100 - 240 V
Gross weight	2,8 kg
Total packaging weight	602 g
Net weight	2,2 kg
Tube angle of inclination	45°
Illuminance	Transmitted light
Optical system	Finite
Tube type	Monocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Finite
Tube type	Monocular
Ocular magnifications	10 x
Ocular visual field	18 mm

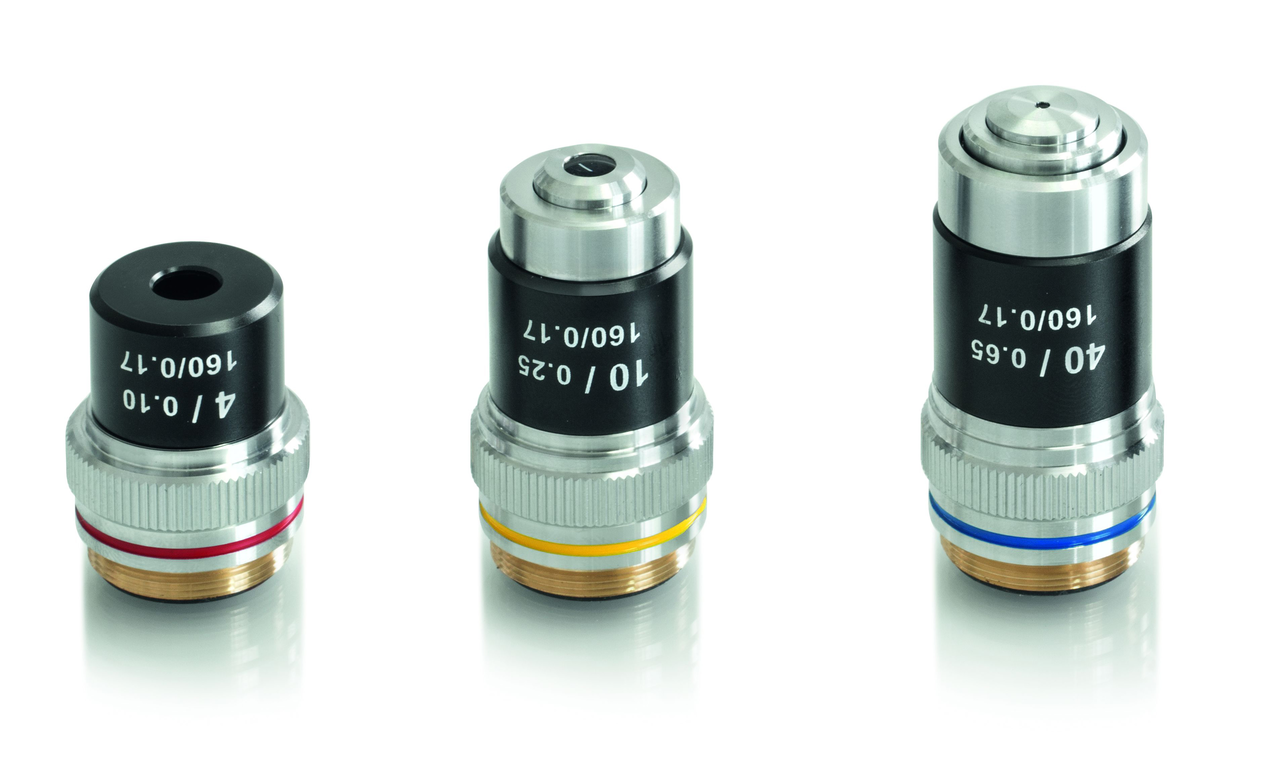

Standard objectives	4×, 10×, 40×
Lens quality	Achromatic
Nosepiece screw-in locations	4
Illuminance	Transmitted light
Illumination type transmitted light	LED
Illumination intensity transmitted light	0.5 W
Condenser type	Abbe
Condenser - Aperture	1.25
Condenser - Montage	Fixed
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.0025 mm
Dimension (W×D×H)	130×300×310 mm
