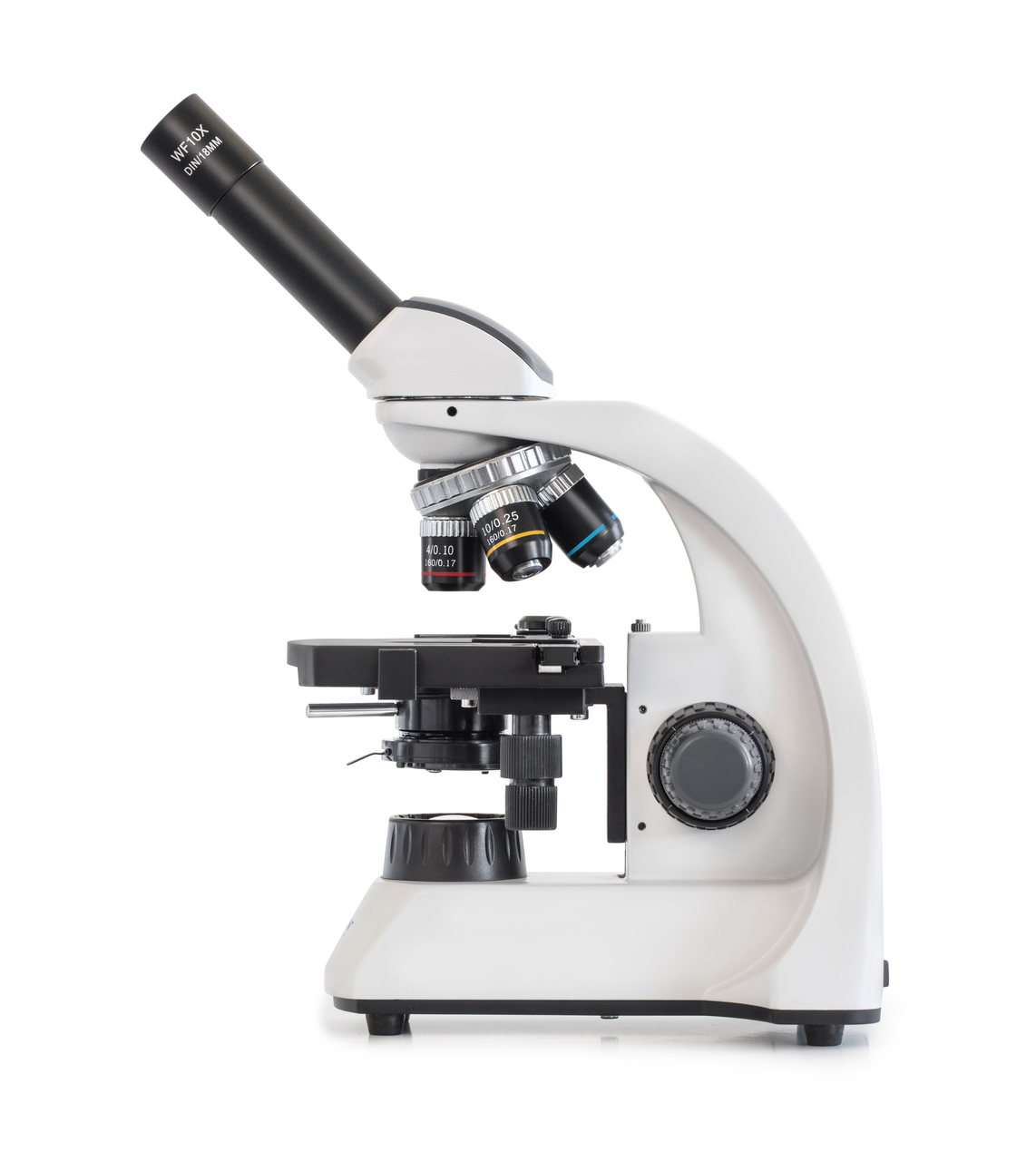

Transmitted Light Microscope KERN OBT 102

AED 1,780.00

Availability:In stock

SKU

LBX-KRN-2440

Discover the KERN OBT 102 compound microscope, perfect for classroom teaching. This high-quality school microscope boasts intuitive controls, a sturdy design, and modern aesthetics. The infinitely dimmable 1W LED ensures optimal sample illumination and long service life, with optional battery operation for mobility. Features include a height-adjustable 1.25 Abbe condenser, coarse and fine focusing knobs, and a selection of eyepieces and objectives. Ideal for primary and secondary schools, training, and hobby use.

BrandKern

More Information
Product Name	Transmitted Light Microscope KERN OBT 102
Weight	1.000000
Part No.	LBX-KRN-2440
Supplier Item Code	OBT 102
Input voltage power supply Max	100 - 240 V
Gross weight	3,4 kg
Total packaging weight	455 g
Net weight	2,8 kg
Tube angle of inclination	45°
Illuminance	Transmitted light
Optical system	Finite
Tube type	Monocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Finite
Tube type	Monocular
Ocular magnifications	10 x
Ocular visual field	18 mm

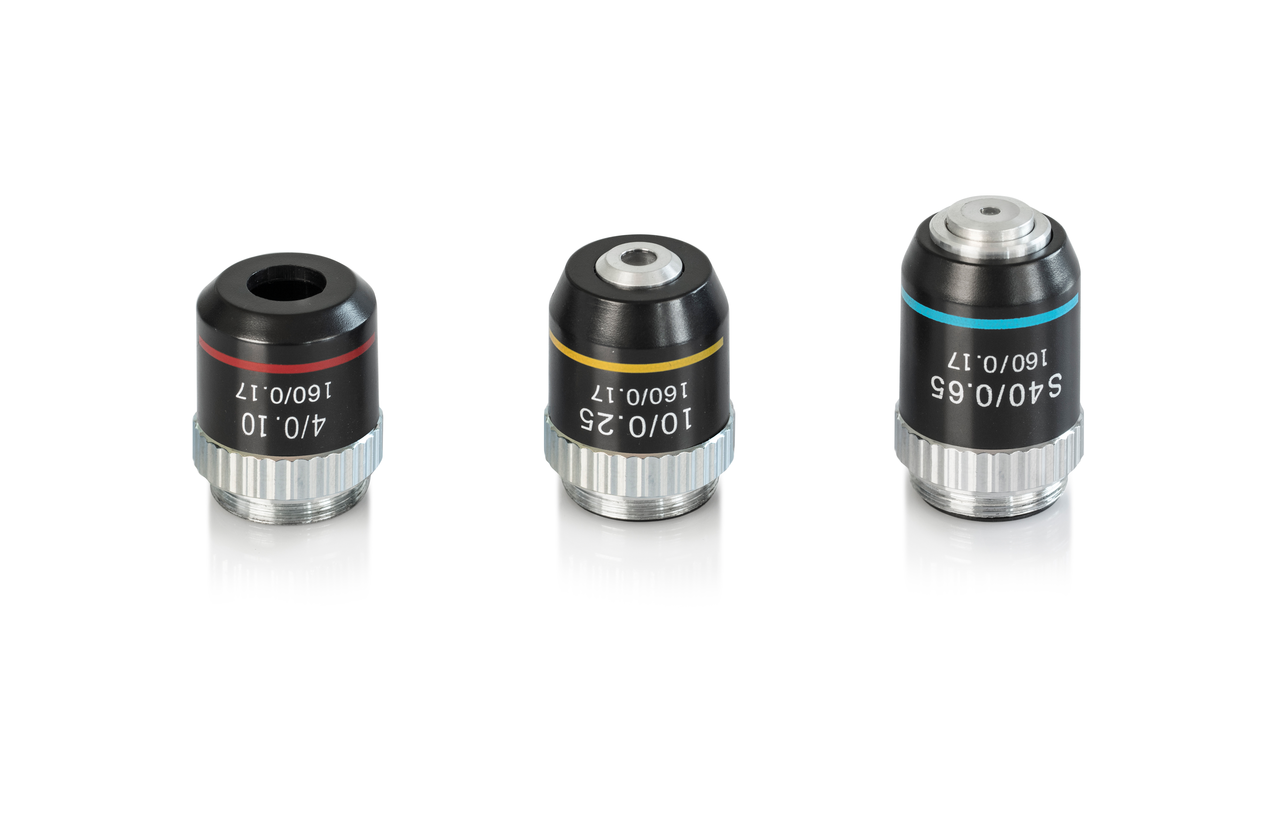

Standard objectives	4×, 10×, 40×
Lens quality	Achromatic
Nosepiece screw-in locations	4
Illuminance	Transmitted light
Illumination type transmitted light	LED
Illumination intensity transmitted light	1 W
Condenser type	Abbe
Condenser - Aperture	1.25
Condenser - Montage	Fixed
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.0025 mm
Dimension (W×D×H)	195×147×325 mm
