Transmitted Light Microscope KERN OBT 103

AED 2,040.00

Availability:In stock

SKU

LBX-KRN-2441

The KERN OBT 103 Compound Microscope is a modern, high-quality teaching tool for classrooms. Featuring an intuitive design, 1W LED illumination, and a height-adjustable 1.25 Abbe condenser, it ensures clear, precise imaging. With coarse and fine focusing, a mechanical stage, and optional battery operation, it’s ideal for schools and hobbyists alike. Perfect for translucent, thin samples.

BrandKern

More Information
Product Name	Transmitted Light Microscope KERN OBT 103
Weight	1.000000
Part No.	LBX-KRN-2441
Supplier Item Code	OBT 103
Input voltage power supply Max	100 - 240 V
Gross weight	3,4 kg
Total packaging weight	455 g
Net weight	2,8 kg
Tube angle of inclination	45°
Illuminance	Transmitted light
Optical system	Finite
Tube type	Monocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Finite
Tube type	Monocular
Ocular magnifications	10 x
Ocular visual field	18 mm

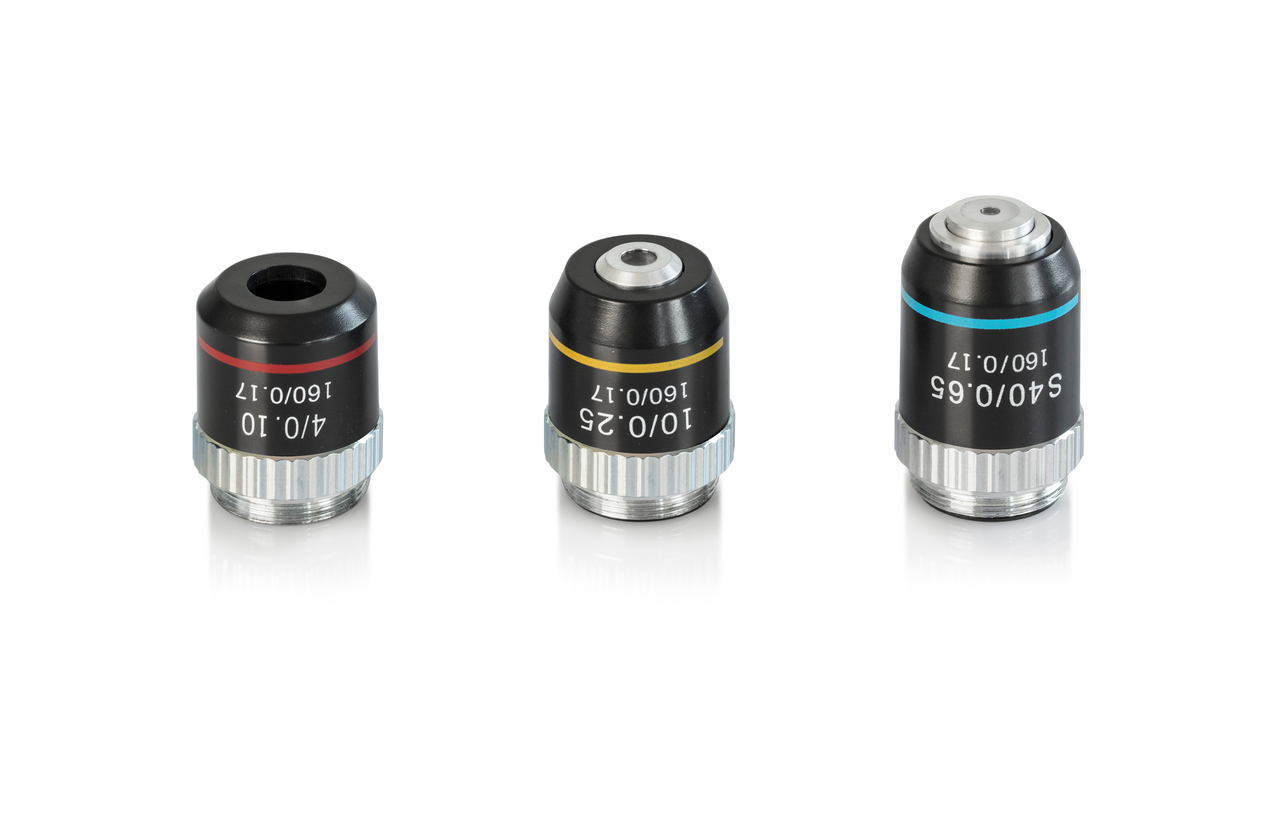

Standard objectives	4×, 10×, 40×
Lens quality	Achromatic
Nosepiece screw-in locations	4
Illuminance	Transmitted light
Illumination type transmitted light	LED
Illumination intensity transmitted light	1 W
Condenser type	Abbe
Condenser - Aperture	1.25
Condenser - Montage	Fixed
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.0025 mm
Dimension (W×D×H)	195×147×325 mm
