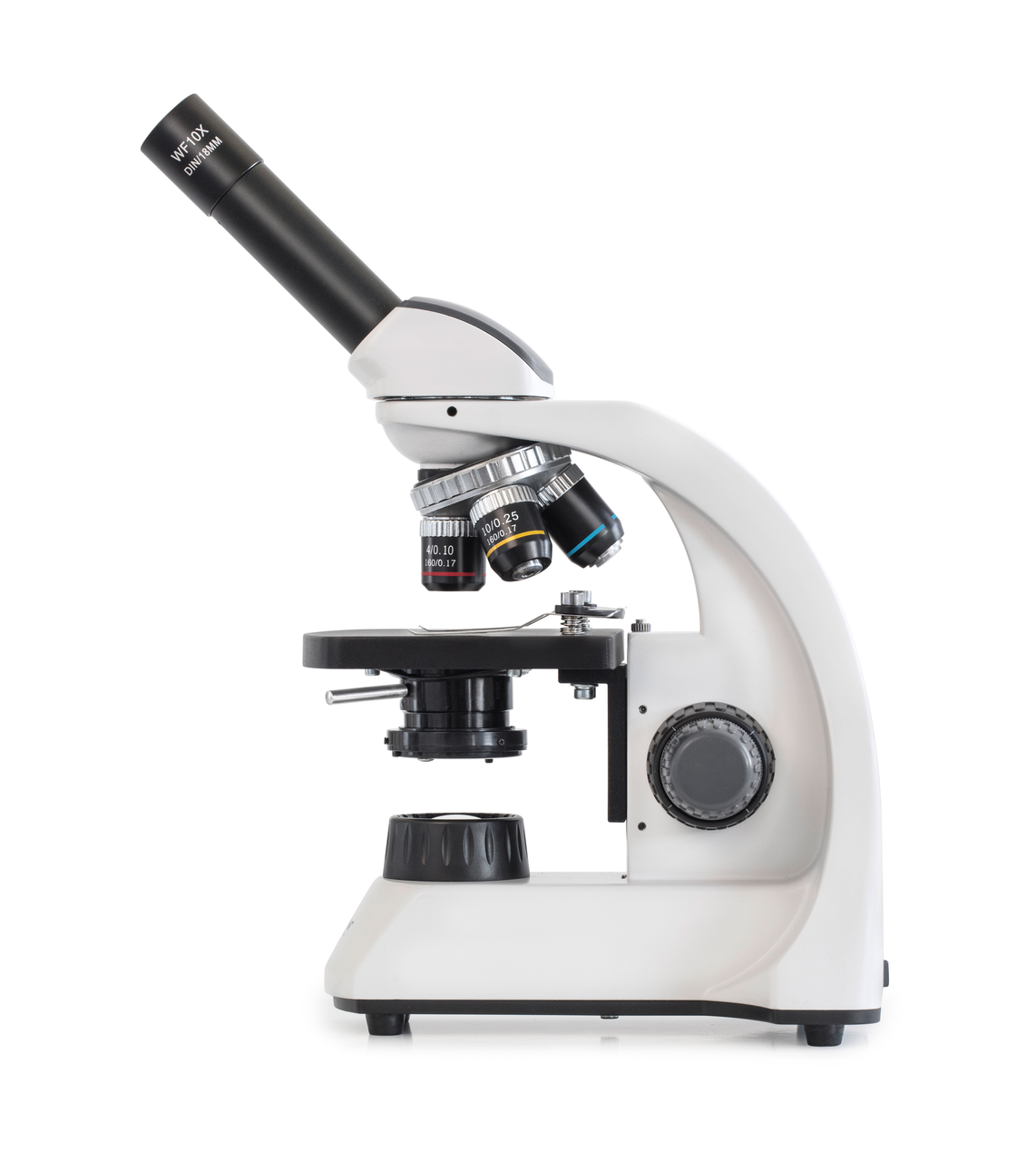

Transmitted Light Microscope KERN OBT 105

AED 2,220.00

Availability:In stock

SKU

LBX-KRN-2443

Enhance your classroom experience with the KERN OBT 105 Compound Microscope. Designed for educational and hobby use, this high-quality microscope features intuitive controls, a robust build, and a sleek modern design. It includes a 1W LED light, a height-adjustable 1.25 Abbe condenser with an aperture diaphragm, and both coarse and fine focusing knobs. Ideal for examining translucent, high-contrast samples like plant tissues and cells. Includes dust cover and user instructions. Perfect for schools and training environments.

BrandKern

More Information
Product Name	Transmitted Light Microscope KERN OBT 105
Weight	1.000000
Part No.	LBX-KRN-2443
Supplier Item Code	OBT 105
Input voltage power supply Max	100 - 240 V
Gross weight	3,4 kg
Total packaging weight	455 g
Net weight	2,8 kg
Tube angle of inclination	45°
Illuminance	Transmitted light
Optical system	Finite
Tube type	Monocular

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Optical system	Finite
Tube type	Monocular
Ocular magnifications	10 x
Ocular visual field	18 mm
Standard objectives	4×, 10×, 40×, 100×
Lens quality	Achromatic
Nosepiece screw-in locations	4
Illuminance	Transmitted light
Illumination type transmitted light	LED
Illumination intensity transmitted light	1 W
Condenser type	Abbe
Condenser - Aperture	1.25
Condenser - Montage	Fixed
Focusing mechanism	Coaxial coarse and fine drive
Fine drive minimum	0.0025 mm
Dimension (W×D×H)	195×147×325 mm
