Coolnics Circulator (Peltier Chiller)
AED 28,524.00
Availability:In stock
SKU
LBX-YMT-0479
Yamato CoolNics Circulator (Peltier Chiller) – CFC-free, low-vibration thermoelectric cooling and heating for external open-system circulation. Maintains, cools, or heats your existing water tank with precision. Available in air-cooled (CTA) or water-cooled (CTW), integrated tabletop or separate "S" type for equipment integration. Standard RS-485 PC communication.
BrandYamato Scientific
| Product Name | Coolnics Circulator (Peltier Chiller) |
|---|---|
| Weight | 1.000000 |
| Part No. | LBX-YMT-0479 |
| Supplier Item Code | CTA412S |
| Technical Data | |
|---|---|
| Product Code | 221644 |
| Model | CTA412S |
| method | Air-cooled electronic cooling/external open system circulation/separated type |
| Performance Temperature control range | 0 to +70°C |
| Performance Temperature control accuracy | ±0.1℃ |
| Performance Cooling capacity (at liquid temperature 20℃) | 83 kcal/h (97W) |
| Performance Pump capacity (50Hz) Maximum flow rate | 8 L/min |
| Performance Pump capacity (50Hz) Maximum discharge pressure | 29.4 kPa |
| Configuration Temperature controller | PID control, digital settings and display. |
| Configuration Control Sensor | Platinum resistance thermometer (pt100Ω) |
| Configuration Timer function | 1 minute to 99 hours 50 minutes, 100 to 9999 hours (with 24-hour time/date switching function) |
| Configuration Operating Functions | Constant value operation (with pause function), constant value auto-stop operation, quick auto-stop operation, constant value auto-start operation, programmed operation (99 steps, with step division function, repeat, gradient operation, etc.), programmed auto-start operation |
| Configuration Other Features | Self-diagnosis function, calibration offset function, external sensor switching function (external temperature sensor is optional), power outage recovery function, RS485 communication function, alarm output terminal, key lock function, power consumption/electricity charge record display function, operation guidance function, temperature output terminal |
| Configuration Safety device | Overcurrent leakage circuit breaker, temperature sensor anomaly detection, overheat anomaly detection, Peltier anomaly detection, temperature upper/lower limit anomaly detection, temperature rise/fall anomaly detection, power supply anomaly detection, internal communication anomaly detection, memory anomaly detection |
| Configuration Cooler/heater wetted parts material | Stainless steel (SUS304) |
| Standard Circulation port nipple diameter | Outer diameter φ12.7 |
| Specifications: Number of Thermo Modules (Peltier Elements) | 4 pieces |
| accessories | Insulated hose for circulating water, inner diameter φ11.5 x length 1m, 2 pieces (IN side hose has manual water supply function), overlapping fittings (S type only) |
| Power supply unit dimensions (width x depth x height) | 291 x 342 x 195 mm |
| External dimensions (width x depth x height) | 291 x 380 x 190 mm |
| Remarks (dimensions) | heat exchange section |
| Power capacity | AC200V 1.7A |
| circuit breaker capacity and power supply capacity 15A. Power plug is not included. The power cord is approximately 2m long (outside the unit). | |
| weight | 16kg |
| Remarks (weight) | Power supply control unit: 10kg |
More from Yamato Scientific

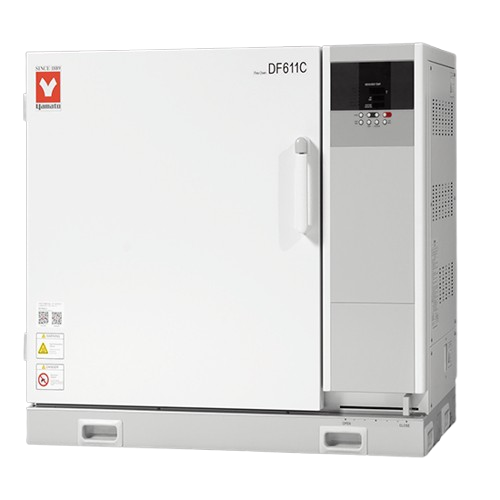

Precision constant temperature chamberVariants from AED 14,841.00

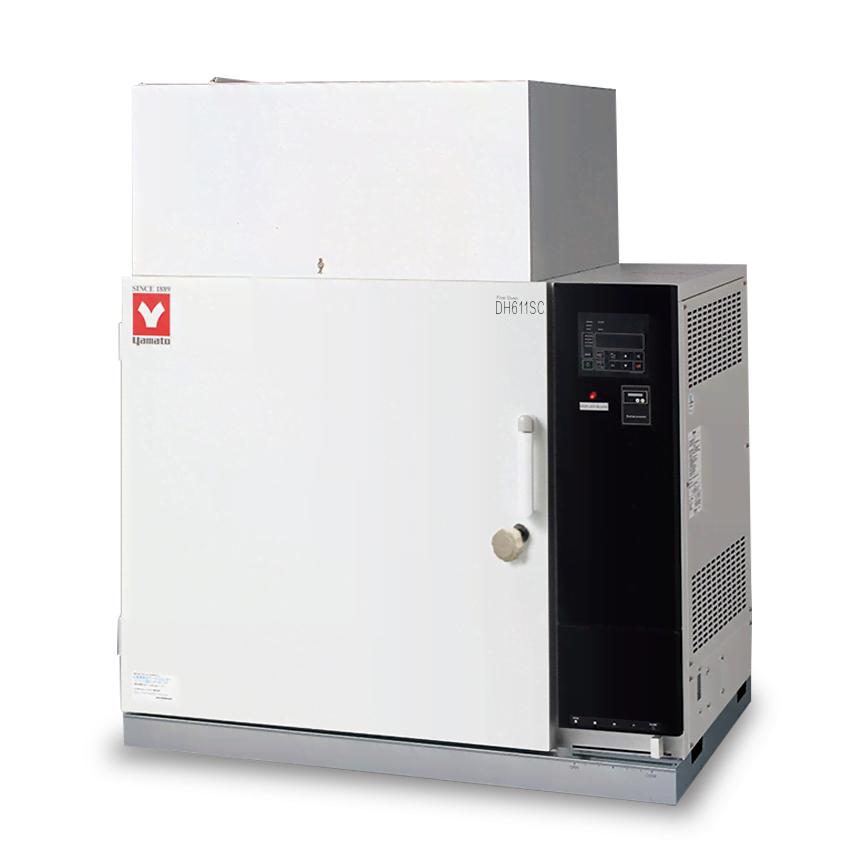

AED 14,841.00SKU: Precision constant temperature chamber- Explosion-proof precision constant temperature chamber
Variants from AED 21,485.00
AED 21,485.00SKU: Explosion-proof precision constant temperature chamber - Air-supplied constant temperature chamber
Variants from AED 3,575.00

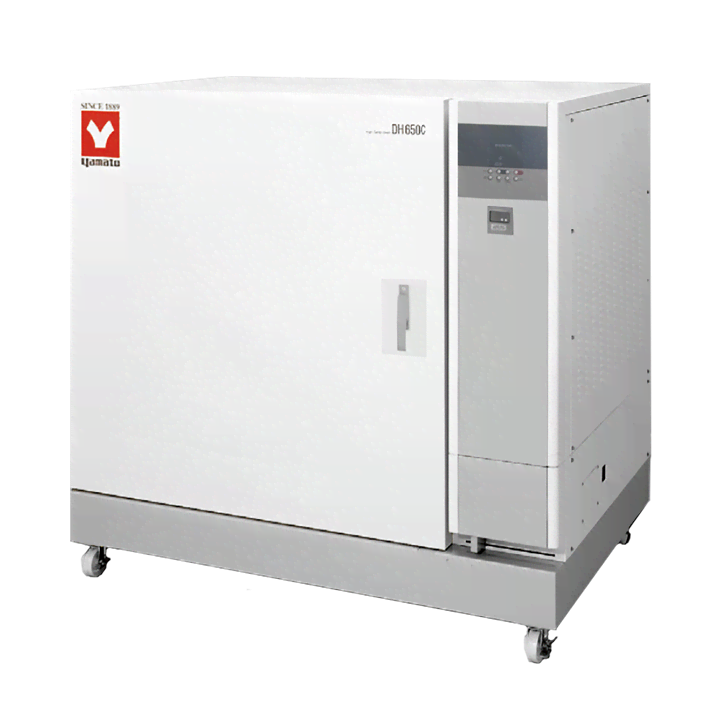

AED 3,575.00SKU: Air-supplied constant temperature chamber - High-temperature precision constant temperature chamber
