Gas Sample Cylinder (GSC) 20 Litre

AED 13,734.00

Availability:In stock

SKU

LBX-LUT-0003

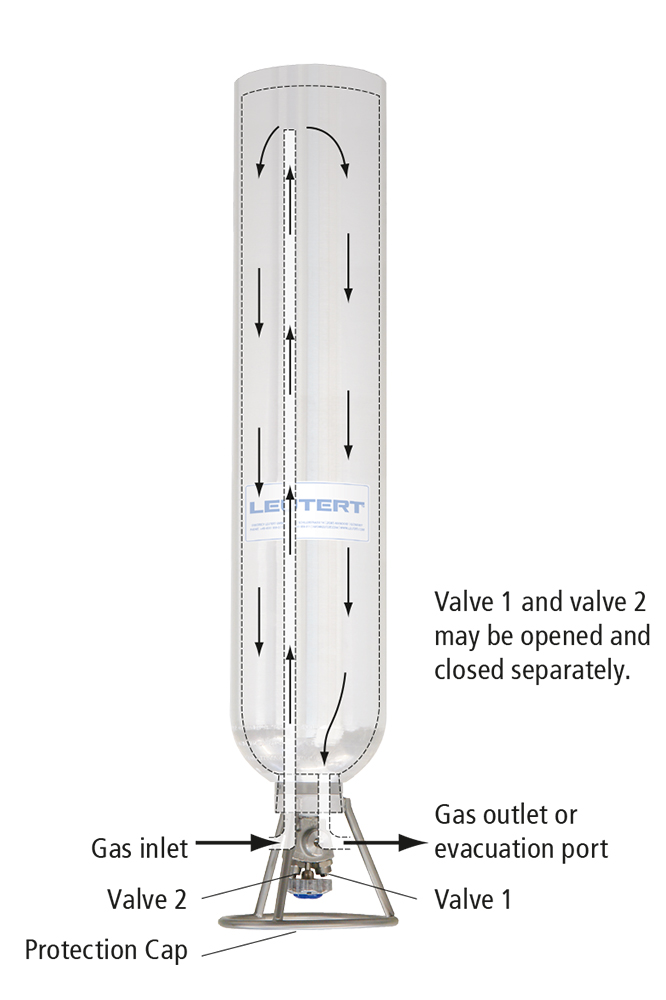

The Leutert Gas Sample Cylinder (GSC) is ideal for collecting gas samples from well test separators when bottomhole sampling isn’t possible. With a 20-liter capacity, aluminum body, and two-entry valve system, it enables efficient, safe PVT sample collection and recombination. Lightweight yet durable, it ensures corrosion resistance, easy handling, and reliable extraction of gas and condensate samples.Ask ChatGPT

BrandLeutert

More Information
Product Name	Gas Sample Cylinder (GSC) 20 Litre
Weight	1.000000
Part No.	LBX-LUT-0003
Supplier Item Code	5381.00.00000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Sample Capacity	4.4 gal (20 liter), other capacities available on request
Diameter	8.03" (204 mm)
Length	37.0" (940 mm)
Weight	59.5 lbs (27 kg)
Operating Pressure	2,900 psi (200 bar)
Test Pressure	4,350 psi (300 bar)
Operating Temperature	-4 °F to 150 °F (-20 °C to 65 °C)
Inlet Connection	1/4" NPT female
Material	Cylinder: Aluminum alloy, Valve: Stainless steel
Service	Sour
Certificates	TPED / UN (approved for use in US)
