OPC Sample Cylinder 15,000 PSI / 197°C

AED 30,215.00

Availability:In stock

SKU

LBX-LUT-0005

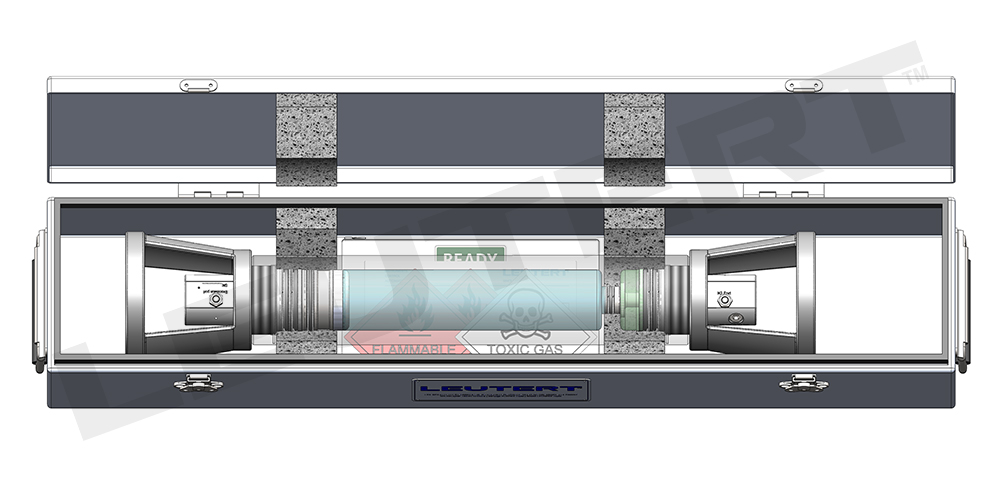

The One Phase™ Piston Sampling Cylinder (OPC) is a patented, high-pressure cylinder designed for secure transportation and storage of hydrocarbon samples. Featuring a floating piston, integrated mixing ball, and machined-in valves, it ensures single-phase integrity with zero leakage risk. The NACE-approved stainless steel construction meets strict safety standards, while its compact design maintains full compatibility with standard PVT lab equipment.

BrandLeutert

More Information
Product Name	OPC Sample Cylinder 15,000 PSI / 197°C
Weight	1.000000
Part No.	LBX-TRU-0005
Supplier Item Code	101699

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Capacity (Nominal)	600 cm³ standard, other capacities available
Volume	700 cm³
Material	Stainless steel, resistant to H₂S and CO₂
Standards	ANSI / NACE MR0175 / ISO 15156-1 (2nd edition, 2009-10-15)
Weight	38.6 lbs (17.5 kg)
Operating Pressure	15,000 psi (1,035 bar)
Operating Temperature	-4 °F to 392 °F (-20 °C to 200 °C)
Certificates	TPED & Hydrostatic
Patent	EP 3 198 116 B1
