Large constant temperature oil tank Economy Large Oil Baths
AED 19,670.00
Availability:In stock
SKU
LBX-YMT-0450
Large Constant Temperature Oil Bath – spacious 37L capacity designed for fume hood use. Jet agitation ensures excellent temperature distribution. Features six comprehensive safety systems including triple over-temperature protection, emergency stop switch, dry-boil/oil-spill float switches, and RS-485 communication. Ideal for high-temperature oil bath laboratory applications.
BrandYamato Scientific
| Product Name | Large constant temperature oil tank Economy Large Oil Baths |
|---|---|
| Weight | 1.000000 |
| Part No. | LBX-YMT-0450 |
| Supplier Item Code | BOA311 |
| Technical Data | |
|---|---|
| Product Code | 222116 |
| Model | BOA311 |
| Performance Temperature control range | Room temperature +10~270℃ |
| Performance Temperature control accuracy | ±0.1℃ (at 200℃ silicone oil JTM K05) |
| Temperature fluctuations | 0.2℃ (at 200℃, silicone oil, JIS standard) |
| Performance Temperature distribution accuracy | ±0.2℃ (at 200℃ silicone oil JTM K05) |
| Temperature gradient | 0.5℃ (at 200℃, silicone oil, JIS standard) |
| Performance Time to reach maximum temperature | 70 minutes |
| Configuration Temperature control | PID control |
| Configuration: Temperature sensor | Dual sensor: Pt100Ω (temperature controller) + K-type thermocouple (overheat protection device) |
| Configuration Operating Functions | Constant value operation |
| Configuration and stirring method | Jet agitation |
| Configuration Heater | SUS316 pipe heater 4.5kW |
| safety equipment | Overcurrent leakage circuit breaker, self-diagnosis function, temperature sensor malfunction, heater malfunction, automatic overheat prevention function, overheat protector, independent overheat protector (fixed at 300°C), oil level overflow detection float switch, detection float switch, emergency stop switch |
| Other features | Drain valve, large operation indicator lamp, external alarm output terminal, temperature output terminal (1-5V, 4-20mA switchable), RS485 communication function, key lock function, power outage compensation function, calibration offset function, power outage recovery mode selection function, external communication adapter (optional) |
| Effective internal dimensions (width x depth x height) | 296 x 340 x 270 mm |
| capacity | 37L |
| accessories | One shelf board, one lid |
| External dimensions (width x depth x height) | 531 x 520 x 578 mm |
| Remarks (dimensions) | Oil tank height: 397mm |
| Power capacity | Single-phase AC200V, 23A |
| circuit breaker capacity and power supply equipment capacity 30A | |
| weight | 37kg |
More from Yamato Scientific
Pure water production system Pureline®Variants from AED 8,096.00
AED 8,096.00SKU: Pure water production system Pureline®- Plasma reactor (PR500 (flow meter specification))
Variants from AED 213,584.00

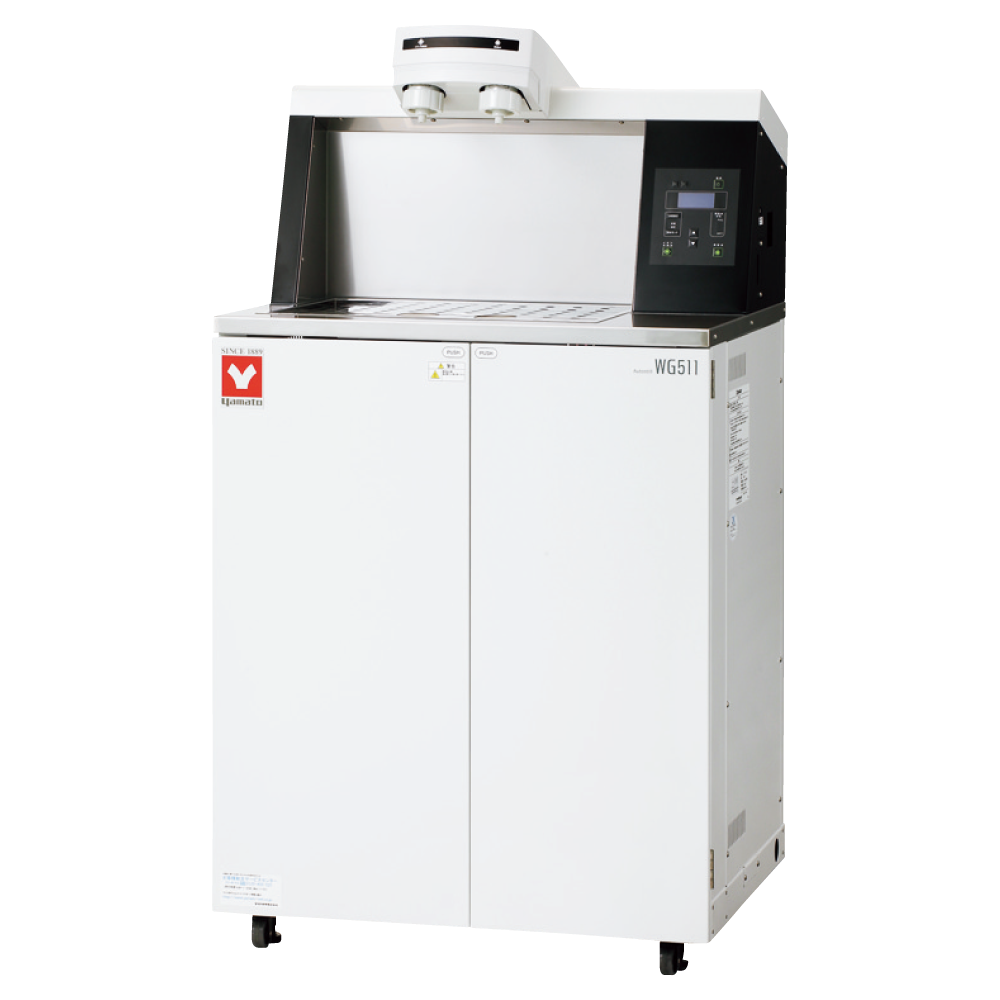

AED 213,584.00SKU: Plasma reactor (PR500 (flow meter specification)) - Pure water production system AutoStill®
Variants from AED 12,401.00

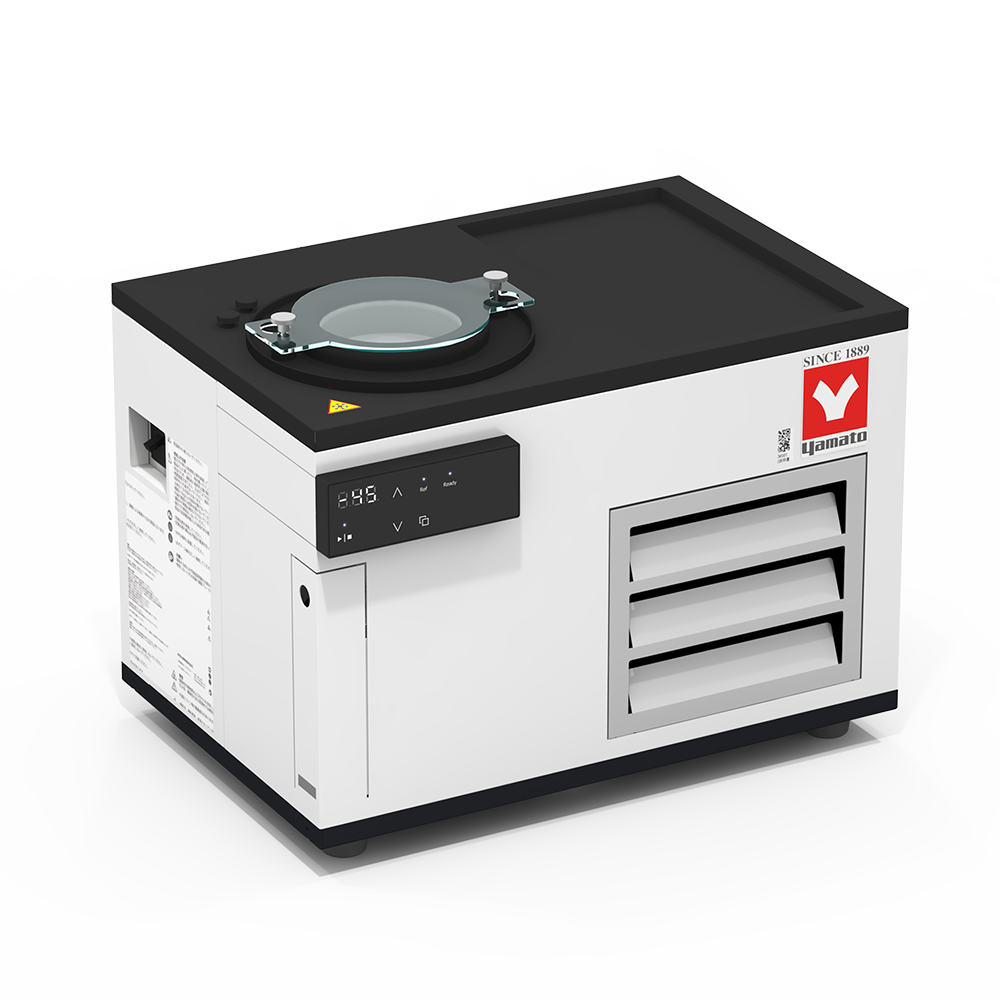

AED 12,401.00SKU: Pure water production system AutoStill® - Cooling trap (tabletop type)
