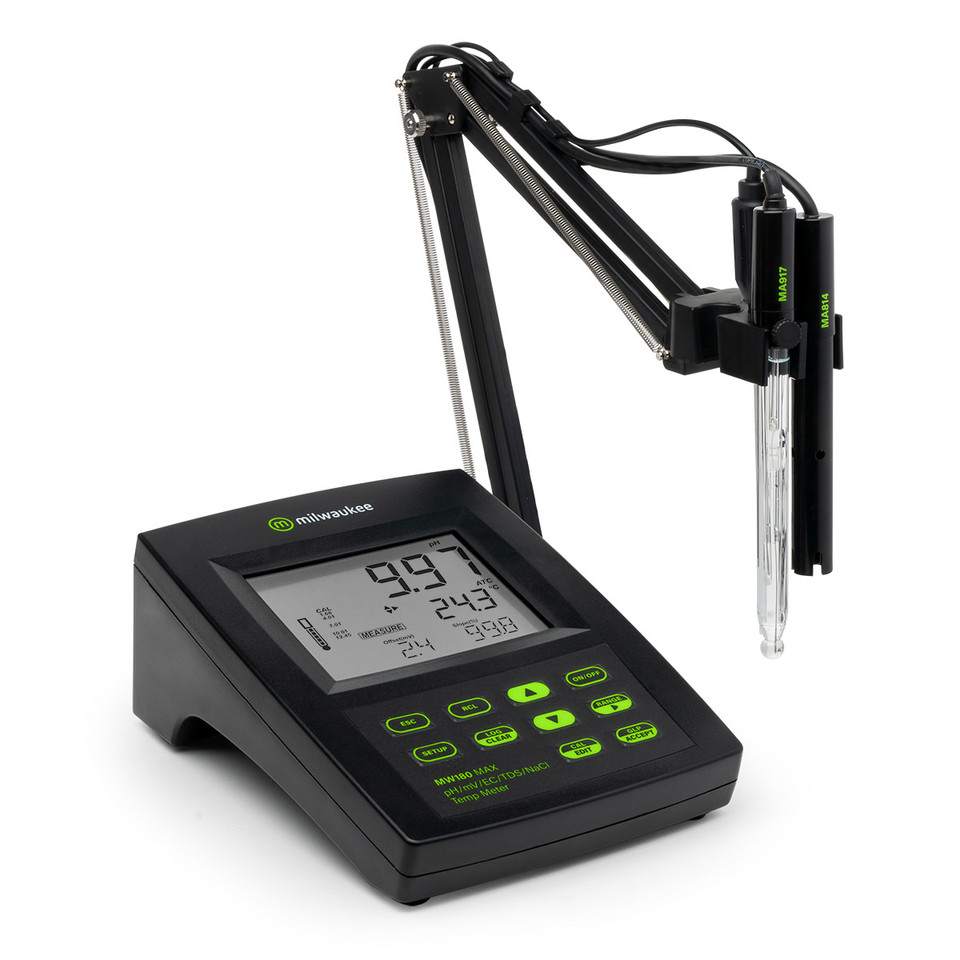

Milwaukee MW180 MAX pH/mV/EC/TDS/NaCl/Temp Bench Meter with Logging

AED 5,125.00

Availability:In stock

SKU

LBX-MWK-0005

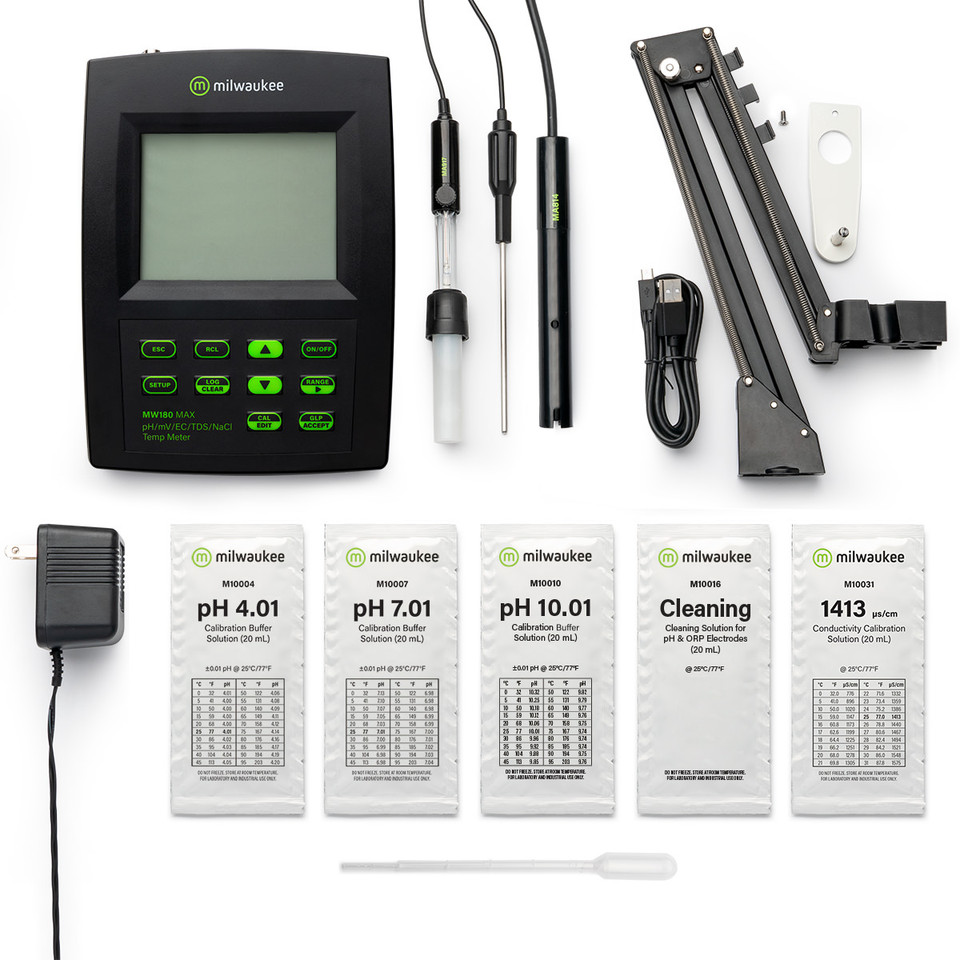

Milwaukee MW180 5-in-1 MAX pH/ORP/EC/TDS/NaCl/Temp Logging Bench Meter delivers ±0.002 pH and ±1% EC/TDS/NaCl accuracy with ATC. Features 3-point pH and 1-point EC calibration, data logging with USB/RS232 download, and rugged MA917B/1 & MA814DB/1 probes. Perfect for horticulture, aquaculture, labs, and education.

BrandMilwaukee

More Information
Product Name	Milwaukee MW180 MAX pH/mV/EC/TDS/NaCl/Temp Bench Meter with Logging
Weight	1.000000
Part No.	LBX-MWK-0005
Supplier Item Code	MW180

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
pH Range	-2.00 to 20.00 pH / -2.000 to 20.000 pH
mV Range	±699.9 mV / ±2000 mV
EC Range	0.00 to 29.99 µS/cm; 30.0 to 299.9 µS/cm; 300 to 2999 µS/cm; 3.00 to 29.99 mS/cm / 30.0 to 200.0 mS/cm; up to 500.0 mS/cm (uncompensated EC)*
TDS Range	0.00 to 14.99 ppm (mg/L); 15.0 to 149.9 ppm (mg/L) / 150 to 1499 ppm (mg/L); 1.50 to 14.99 ppt (g/L) / 15.0 to 100.0 ppt (g/L); up to 400 g/L (uncompensated TDS)* (with 0.80 factor)
NaCl Range	0.0 to 400.0%
Temp. Range	-20.0 to 120.00 °C (-4.0 to 248.0 °F)
pH Resolution	0.01 pH / 0.001 pH
mV Resolution	0.1 mV / 1 mV
EC Resolution	0.01 µS/cm; 0.1 µS/cm; 1 µS/cm; 0.01 mS/cm; 0.1 mS/cm
TDS Resolution	0.01 ppm (mg/L); 0.1 ppm (mg/L); 1 ppm (mg/L); 0.01 ppt (g/L); 0.1 ppt ( g/L)
NaCl Resolution	0.1%
Temperature Resolution	0.1 °C / (0.1 °F)
Description	Accuracy @ 20 °C / 68 °F
pH	±0.01 / ±0.002 pH
mV	±0.2 mV / ±1 mV
EC	±1% of reading / ±0.05 µS/cm or 1 digit, whichever is greater
TDS	±1% of reading / ±0.03 ppm or 1 digit, whichever is greater
NaCl	±1% of reading
Temperature	±0.4 °C (±0.8 °F)
Rel mV offset	±2000 mV
pH	1, 2 or 3 calibration points, with 7 memorized buffers: 1.68, 4.01, 6.86, 7.01, 9.18, 10.01 and 12.45
EC/TDS	1 point slope calibration, 6 standards: 84 µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm / 1 point offset calibration: 0.00 µS/cm
NaCl	1 point, with MA9066 salinity calibration solution
Temperature	2 points, 0 and 50 °C (32 and 122 °F)
Temperature Compensation	Automatic or manual from -20.0 to 120.0°C (-4.0 to 248.0 °F)
Conductivity temperature coefficient	Selectable 0.00 to 6.00 % / °C (EC and TDS only)
TDS factor	0.40 to 0.80 / Default value: 0.50
pH Probe	MA917B/1 (included)
ORP Electrode	(Sold Separately)
Temperature Probe	MA831R (included)
EC Probe	MA814DB/1 (4 ring, included)
Logging-On-Demand	Maximum 50 samples for each range: (pH, mV /Rel mV, EC, TDS, NaCl)

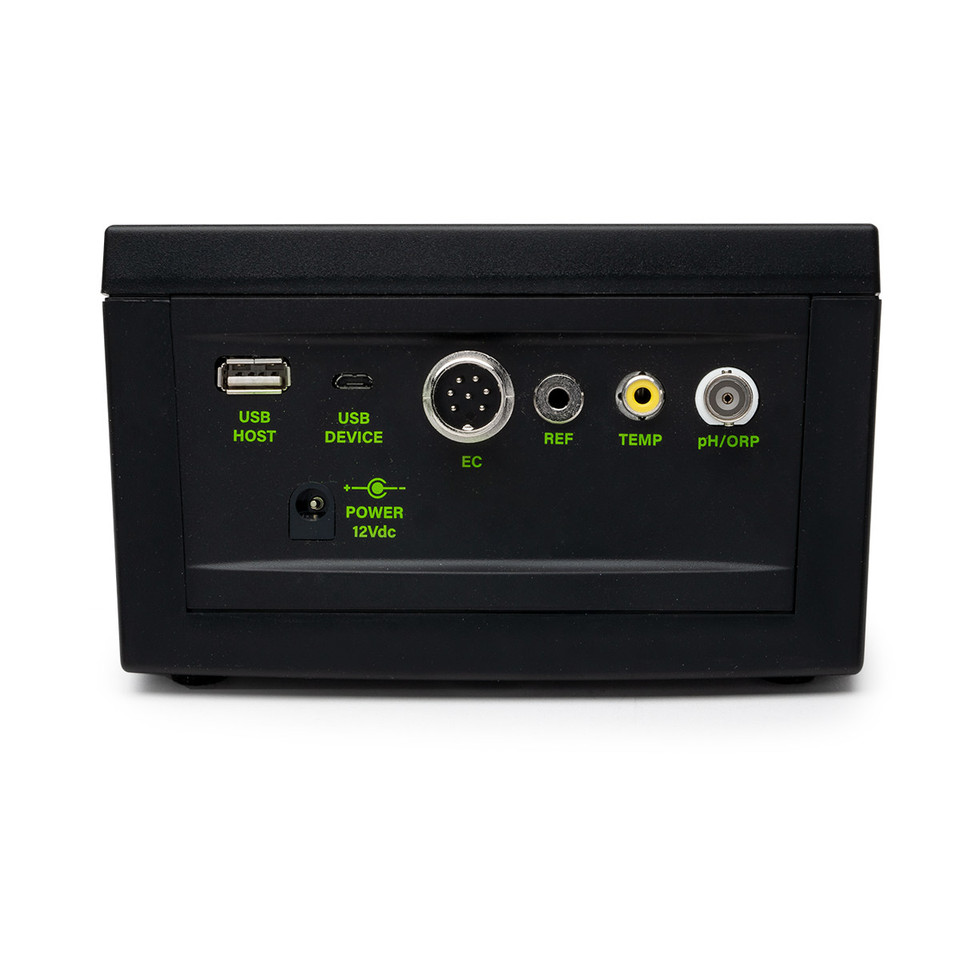

PC Connectivity	RS232/USB opto isolated
Power Supply	12 VDC adapter (included)
Dimensions	230 x 160 x 95 mm (9.0 x 6.3 x 3.7 inches)
Environment	0 to 50°C / 32 to 122°F; max RH 95%
Weight	0.9 kg / 2.00 lbs.
Warranty	3 years Meter
Description	*Uncompensated conductivity (TDS) is the conductivity (or TDS) value without temperature compensation.
