Cleanroom constant temperature chamber

AED 43,357.00

Availability:In stock

Only %1 left

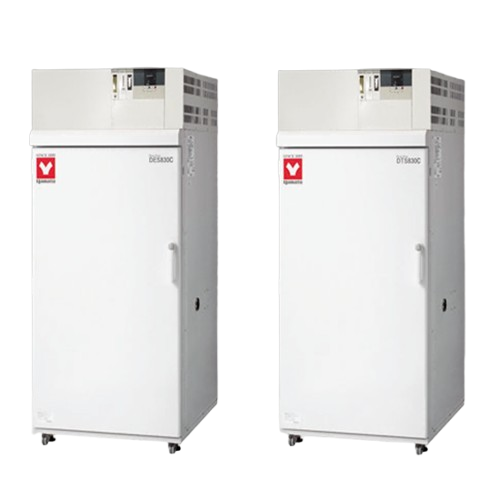

Cleanroom Constant Temperature Chamber (DE/DT Series) — ISO Class 5 (cleanliness level 100) precision chamber with HEPA filtration (99.97% @0.3μm), horizontal circulation, near-sample HEPA-embedded sensor. 3-segment PID, 30-step programs, N2 purge. DE: 260°C max; DT: 360°C max. C-type (steady-state) or UC-type (full-cycle) cleanliness. Two capacities.

BrandYamato Scientific

More Information
Product Name	Cleanroom constant temperature chamber
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	DE430C/430UC	DE630C/630UC	DT430C/430UC	DT630C/630UC
Temperature Series (attr. 1)	DE (260°C max)	DE (260°C max)	DT (360°C max)	DT (360°C max)
Chamber Capacity (attr. 2)	91L	216L	91L	216L
Cleanliness Type (attr. 3)	C or UC	C or UC	C or UC	C or UC
Operating Temperature Range	Room temp+30°C to 260°C		Room temp+30°C to 360°C
Temperature Fluctuation (GB)	±0.3°C (260°C)		±0.3°C (360°C)
Temperature Uniformity (GB)	±1.5% (260°C)		±1.5% (360°C)
Temperature Control Accuracy (JTM)	±0.3°C (at 260°C)		±0.3°C (at 360°C)
Temperature Distribution Accuracy (JTM)	±2.5°C (at 260°C)		±4°C (at 360°C)
Time to Max Temp	~70 min	~70 min (to 260°C)	~80 min
Insulation	Glass fiber		Aluminum silicate wool
Heater Power	2.5 kW	3.6 kW	2.5 kW (assumed; see note)	5.2 kW
Internal Dimensions (W×D×H)	450×450×450mm	600×600×600mm	450×450×450mm	600×600×600mm
External Dimensions (W×D×H)	700×1000×1738mm	850×1150×1738mm	700×1000×1738mm	850×1150×1738mm
Internal Volume	91L	216L	91L	216L
Number of Shelves	12	17	12	17
Power Supply (50/60Hz)	3-phase AC380V, 5A	3-phase AC380V, 6.5A	3-phase AC380V, 5A	3-phase AC380V, 9A
Weight	~220 kg	~270 kg	~220 kg	~270 kg
Standard Shelves	×2	×3	×2	×3
Standard Shelf Supports	×4	×6	×4	×6
