INNO-M Microplate Reader (Absorbance + Luminescence)

AED 41,625.00

Availability:In stock

SKU

LBX-LTEK-0002

The INNO-M Microplate Reader combines UV-Vis absorbance and luminescence detection in a single advanced platform. Featuring a monochromator-based optical system, high-sensitivity PMT detector, 200–999 nm absorbance range, and support for 6–384 well plates. Ideal for ELISA, ATP assays, cell viability studies, and life science research applications.

BrandLTEK

More Information
Product Name	INNO-M Microplate Reader (Absorbance + Luminescence)
Weight	1.000000
Part No.	LBX-LTEK-0002
Supplier Item Code	L-IN-M1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Parameter	Specification
GENERAL
Detection Modes	UV-Vis Absorbance, Luminescence
Read Methods	End Point, Kinetic, Spectral Scanning, Well-Area Scanning
Microplate Types	6- to 384-well Plates

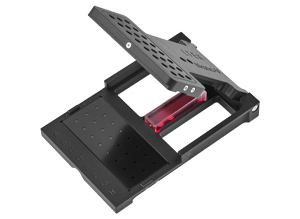

Other Labware Supported	NANO-VC (Microvolume Plate), INNO-Q (Quality Check Plate)
Shaking	Two-Step Speed
Software	INNO-X^™ (Windows Software)
Certifications	CE Marked, RoHS, ISO 9001 / ISO 13485 / ISO 14001
ABSORBANCE
Light Source	Xenon Flash Lamp
Detector	Photodiode
Wavelength Selection	Monochromator
Wavelength Range	200–999 nm (1 nm Increments)
Monochromator Bandwidth	5 nm
Dynamic Range	0–4.0 OD
Resolution	0.0001 OD
Pathlength Correction	Yes
Wavelength Accuracy	±2 nm
Wavelength Repeatability	±0.2 nm
OD Accuracy (0–2 OD)	±1% ± 0.010 OD
OD Linearity (0–2 OD)	±1% ± 0.010 OD
OD Repeatability (0–2 OD)	±1% ± 0.005 OD
LUMINESCENCE
Wavelength Range	300–700 nm
Detector	PMT (Photomultiplier Tube)
Sensitivity	10 amol ATP
Peak Wavelength	410 nm
PHYSICAL CHARACTERISTICS
Connectivity	1 USB, 1 RS232 (for External PC Control)
Power Supply	100–240 V AC, 50/60 Hz
Dimensions (W × L × H)	333 × 303 × 245 mm
Weight	7.5 kg
