INNO-QM (Absorbance, Luminescence, and Fluorescence Quality Check Plate) - OPTION

AED 13,875.00

Availability:In stock

SKU

LBX-LTEK-0017

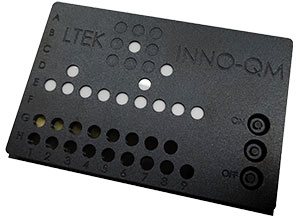

The INNO-QM Quality Check Plate enables comprehensive validation of microplate reader performance across absorbance, fluorescence, and luminescence modes. Designed for INNO multi-mode systems, it ensures accuracy, linearity, and alignment verification using stable optical and electronic reference standards, making it essential for laboratory quality control and instrument calibration.

BrandLTEK

More Information
Product Name	INNO-QM (Absorbance, Luminescence, and Fluorescence Quality Check Plate) - OPTION
Weight	1.000000
Part No.	LBX-LTEK-0017
Supplier Item Code	L-IN-Q2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Mass	148g (±5g)
Dimensions (L × W × H)	127.7 × 85.4 × 14.2mm (±0.1mm)
Well A1 Location	X: 14.3mm, Y: 74.3mm (±0.1mm)
Nominal Well Diameter	6.0mm (±0.1mm)
Absorbance Standard	Optical Density Film, 9 Wells: 0.14 to 2.20 OD @ 450nm
Fluorescence Standard	Solid State Fluorescent Matrix, 8 Wells: EX 485nm / EM 530nm or EX 540nm / EM 590nm
Luminescence Standard	Nine Microprocessor-Controlled Precision LEDs, 9 Wells with Approximate Four-Decade Dynamic Range
Microprocessor	ARM7TDMI® 32-bit Processor (30 MHz)
Battery Type	Lithium-Polymer
Battery Capacity	500mAh, 3.7V
Rated Discharge Cycles	500 Cycles (to 60% Capacity)
Operating Life	Up to 9 Hours (All LEDs On); Over 72 Hours (Typical Usage)
Connector	Mini USB (Cable Supplied)
Charging Requirements	500mA Minimum via USB; Typical Charge Time: 3 Hours
Normal Operating Temperature	18°C to 40°C (Short-Term Operation Down to -20°C)
Maximum Charging Temperature	45°C (Battery Should Remain at Room Temperature or Below 50°C)
Storage Temperature	0°C to 50°C
