External open-system circulation device Cool Line (chiller)

AED 15,089.00

Availability:In stock

Only %1 left

Yamato CoolLine Chiller – external open-system circulation for aquariums and open circuits. Features flow control valve, flow sensor protection, and RS-485 communication. Cooling capacity 450W–785W, temperature range -10°C to 80°C. Comprehensive safety with auto-shutdown on flow reduction. Ideal for open-loop equipment cooling applications.

BrandYamato Scientific

More Information
Product Name	External open-system circulation device Cool Line (chiller)
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	CLH302	CLH401	CLH610
Product code	221346	221564	221622
System	Pump-driven external open-system circulation
Temp. control range	-10~80°C (refrigeration unit operates to 40°C)	-10~80°C (refrigeration unit operates to 40°C)	-15~80°C (refrigeration unit operates to 40°C)
Temp. control accuracy / fluctuation	±0.1°C~ (JTM K05) at 10°C, 0.2°C~ (JTM K05/JIS common) at 10°C	same	±0.1°C~ (JTM K05), 0.4°C~ (JIS) at 10°C
Temp. display unit	0.1°C
Cooling capacity	~450W (387kcal/h) at liquid temp 15°C	~600W (517kcal/h) at liquid temp 15°C	~785W (676kcal/h) at liquid temp 15°C
Temp. control	PID control
Temp. sensor	Dual sensor: Pt100Ω (control) + K-type thermocouple (over-temp protection)
Temp. setting/display	Digital setting/display
Heater	900W	1,000W	1.5kW
Refrigeration unit/refrigerant	Air-cooled, 250W, R404A	Air-cooled, 350W, R404A	Air-cooled, 600W, R404A
Circulation pump	Magnetic pump, 20W	Magnetic pump, 20W	Magnetic pump, 45W
Max flow (pump capacity), 50/60Hz	5.4/6.2 L/min (10.0/11.0 L/min)	5.4/6.3 L/min (10.0/11.0 L/min)	6.7/7.8 L/min (15.0/17.0 L/min)
Max head (pump capacity), 50/60Hz	3.5/5.0m (4.9/6.9m)	3.7/5.3m (4.9/6.9m)	6.2/8.7m (8.0/11.0m)
Circulation nozzle	φ13mm outer diameter (all models)
Operating ambient temp.	5~30°C
Safety devices	Self-diagnostic function, overcurrent leakage breaker, refrigeration overload relay protection circuit, refrigeration protection delay timer, refrigeration high-pressure switch, flow sensor, circulation pump protection bypass, pump thermal protector, over-temp protector (except CLS302*)
Other functions	Flow control valve, drain cock, dust-proof filter, temperature output terminal, refrigeration pressure indicator, calibration offset, key lock, power outage compensation, RS-485 communication
Accessories	Insulated circulation hose 1m ×1, insulated circulation hose with priming pump 1m ×1, wire clamps ×4, drain hose ×1
Tank capacity*²	~1.5L (inner diameter φ120×depth200mm)	~3L (inner diameter φ150×depth200mm)	~3L (estimate — not explicitly listed, likely same as CLH401)
External dims	W410×D460×H550mm	W380×D513×H725mm	W380×D615×H725mm
Power source (50/60Hz), rated current	AC100V, 13.5A (15A)	AC100V, 16.5/15A (30A)	AC200V, 12/11A (15A)
Weight	~55kg	~65kg	~65kg (estimate — not explicitly confirmed)

More from Yamato Scientific

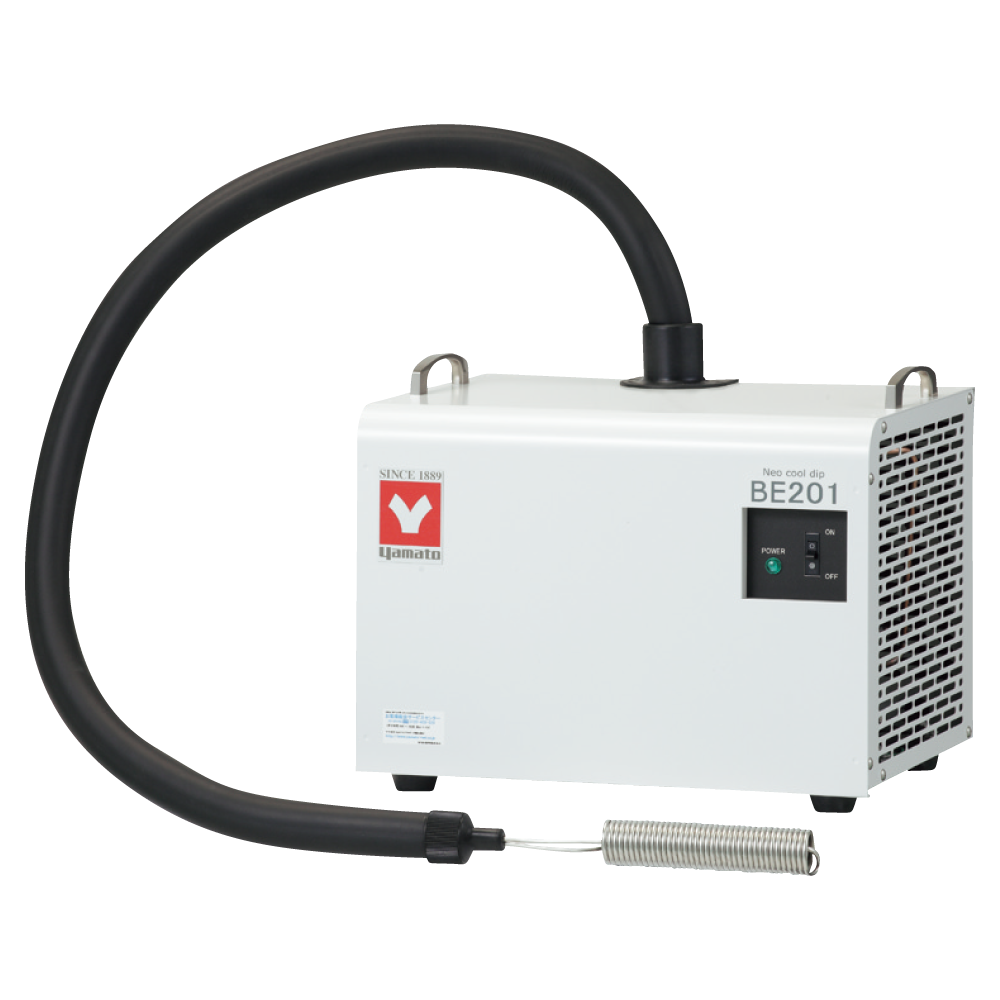

NeoCool Dip Immersion Cooler
Variants from AED 7,923.00

AED 7,923.00
SKU: NeoCool Dip Immersion Cooler
External sealed cooling water precision inverter chiller
Variants from AED 21,859.00

AED 21,859.00
SKU: External sealed cooling water precision inverter chiller
Shaking Bath Agitating Water Baths
Variants from AED 8,406.00

AED 8,406.00
SKU: Shaking Bath Agitating Water Baths

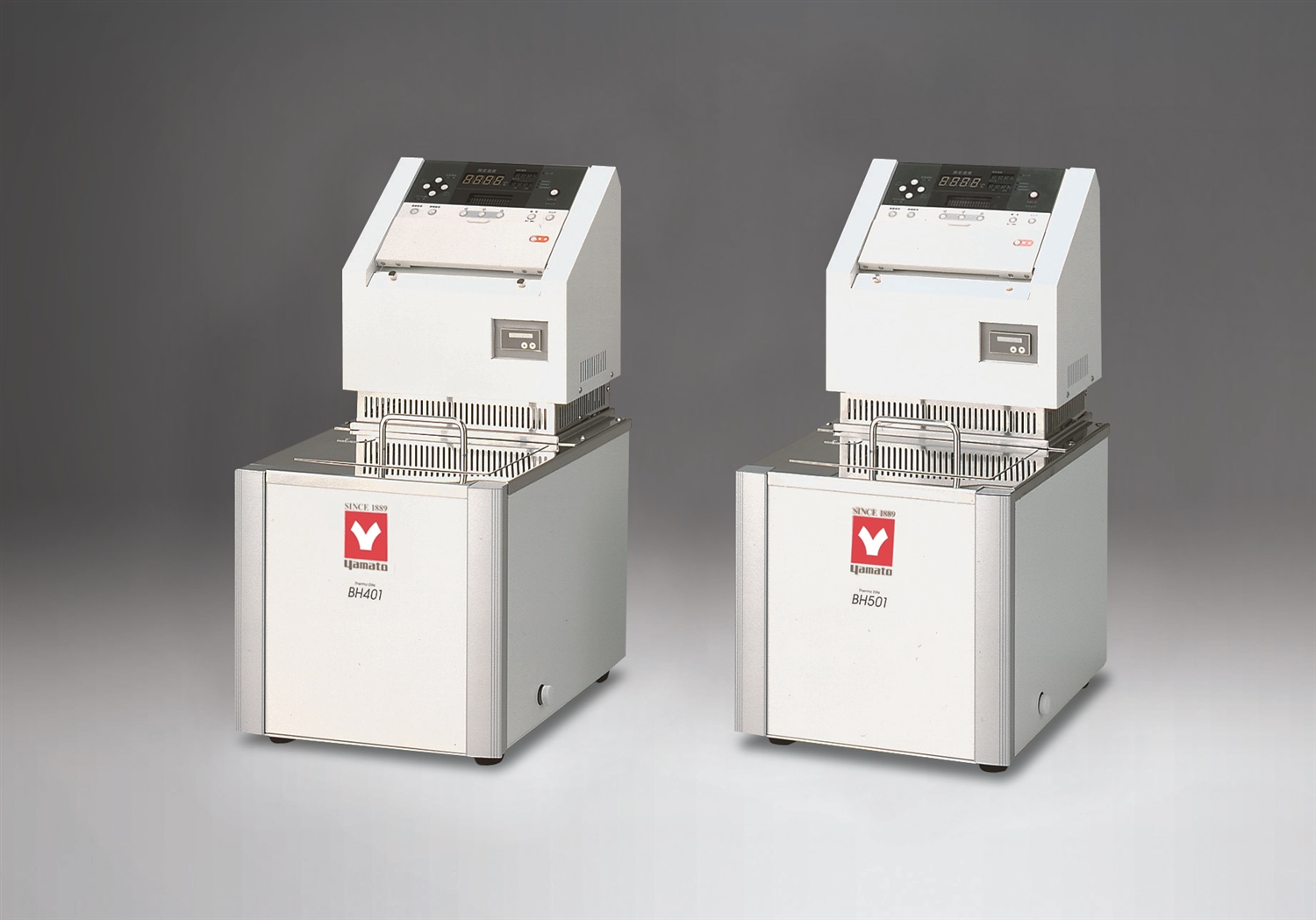

Precision constant temperature water bath ThermoElite®
