Picture Temperature Verification System

As low as AED 6,660.00

Availability:In stock

Only %1 left

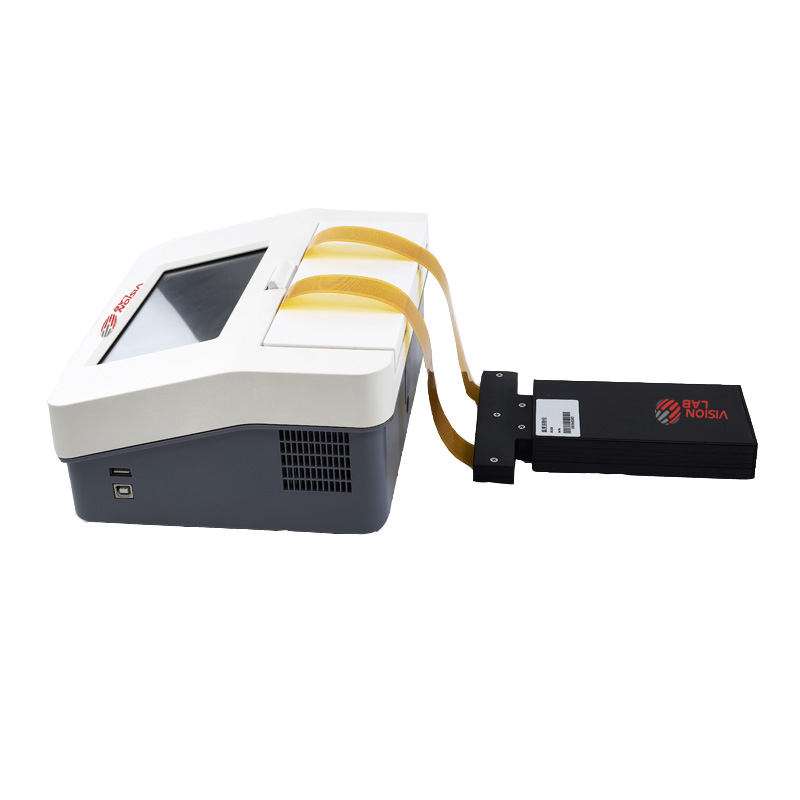

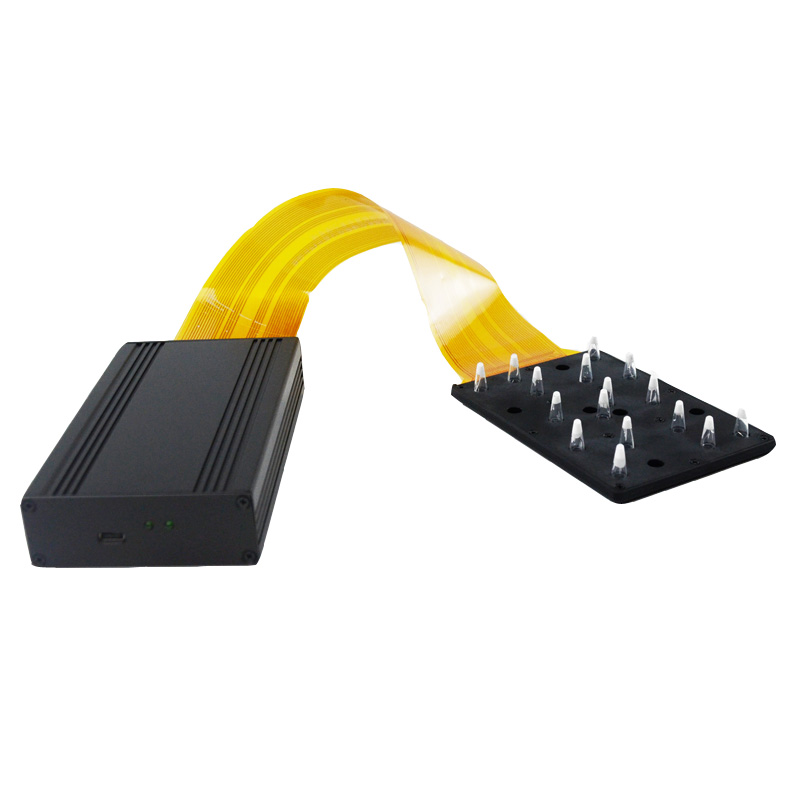

Ensure precise PCR performance with our professional Temperature Verification System. Featuring an integrated PT1000 platinum resistance sensor, 0.01°C resolution, millisecond response, and ultra-low temperature drift, it delivers reliable calibration and detection for laboratory PCR instruments — guaranteeing accurate, reproducible results every time.

BrandVision Med

More Information
Product Name	Picture Temperature Verification System
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	TVS96	TVS32	TVS16
Measuring Range	0℃ ~ 120℃
Number of Sensors	16
Sensor Type	1/3B class PT1000
Sensor Resolution	0.01℃
Compatibility	96-well PCR module	32-well PCR module	8/16-well PCR module
Temperature Accuracy	0.1℃
Stability	<0.1℃
Temperature Uniformity	<0.2℃
Linearity	R² > 0.9999
Temp Acquisition Speed	16 channels / 0.5s simultaneous acquisition
Software Features	Real-time curve; Temperature display; Max/Min marking; Excel export
Relative Humidity	10% ~ 90% (non-condensing)
Ambient Temperature	10℃ ~ 35℃
Dimensions	L148 × W83 × H29 mm
Weight	0.25 kg
Power Supply	USB Power (DC 5V / 1A; 5W)
