Slim Economy Gravity Convection Oven

AED 7,167.00

Availability:In stock

Only %1 left

Space-Saving Constant Temperature Drying Oven – compact yet large-capacity, ideal for educational institutions and labs. Features PID microcomputer control, adjustable shelf positions, reversible door, and anti-tipping brackets. Includes hydraulic over-temperature protection and ground fault breaker. Heats up to 210°C with AC100V power supply.

BrandYamato Scientific

More Information
Product Name	Slim Economy Gravity Convection Oven
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	DXS200	DXS300
Product code	212915	212916
System	Natural convection
Temp. control range	RT+10~210°C
Temp. control accuracy	±1°C (at 210°C) JTM K05
Temp. fluctuation	6.0°C (at 210°C) JIS
Temp. distribution accuracy	±10°C (at 210°C) JTM K05
Temp. gradient	35.0°C (at 210°C) JIS	40.0°C (at 210°C) JIS
Time to max temp.	~60 min	~60 min
Interior	Stainless steel sheet
Exterior	Chromium-free electro-galvanized steel sheet, baked enamel finish
Insulation	Rock wool
Heater	Iron-chrome wire heater
Heater capacity	400W	800W
Exhaust port	SUS304, φ30mm, 1× top surface
Door	Chromium-free electro-galvanized steel sheet, baked enamel finish; reversible opening direction
Temp. control method	PID control (microcomputer)
Timer	1–99hr59min/min, 100hr0min–999hr50min/10min
Temp./Timer display	LED digital (1°C resolution)
Sensor	K-type thermocouple
Operation functions	Constant value (quick auto-stop, auto-start, auto-stop selectable via timer)
Additional functions	Calibration offset, power outage compensation, key lock
Control panel	Sheet key (LED temp/timer/heater status/abnormality), main switch (earth leakage breaker)
Safety devices	Hydraulic independent over-temp protector, auto over-temp protection, sensor input alarm, leakage circuit breaker
Internal capacity	20L	55L
Shelf levels	5 steps	9 steps
Shelf pitch	50mm
Accessories	2× shelves, 4× shelf supports, anti-tip hardware set
Internal dims (W×D×H)	240×250×340mm	300×350×530mm
External dims (W×D×H)	320×340×685mm	380×440×875mm
Power source	AC100V, 4.5A	AC100V, 8.5A
Breaker capacity	15A
Weight	20kg	30kg

More from Yamato Scientific

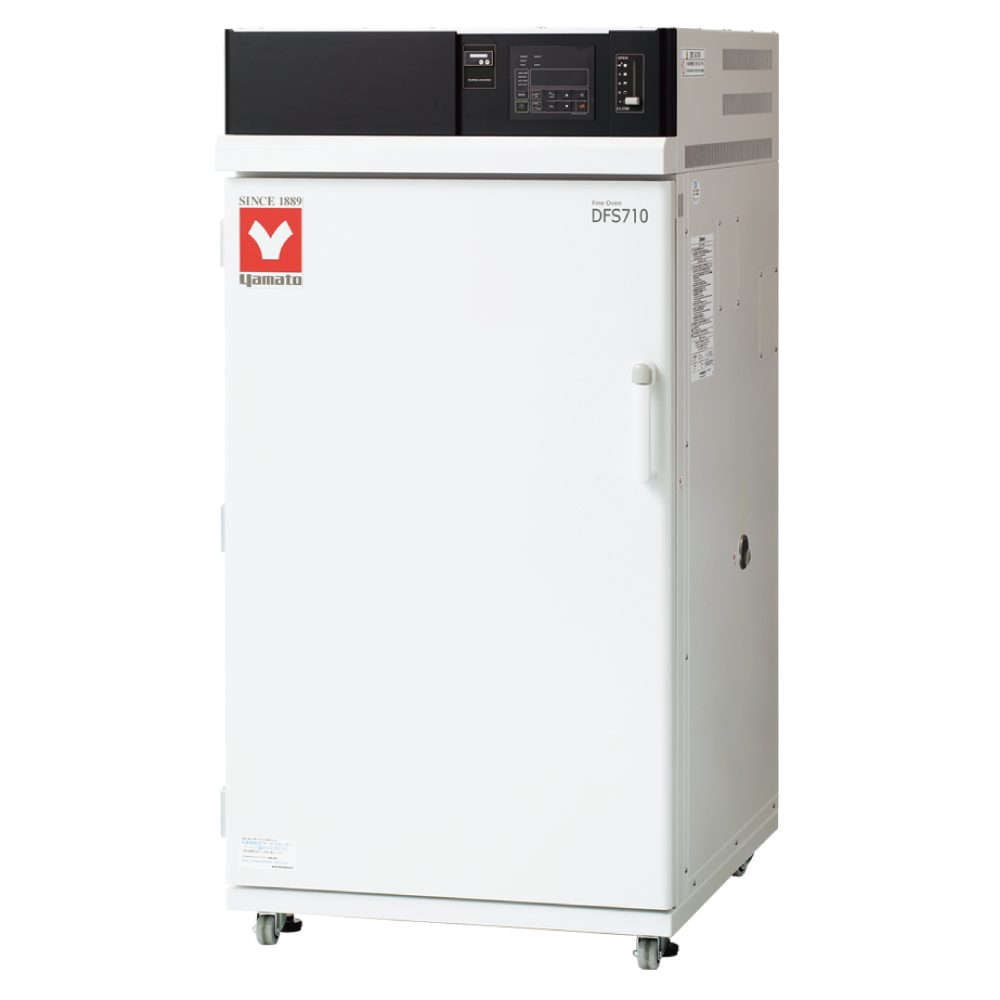

Slim Precision Mechanical Convection Oven
