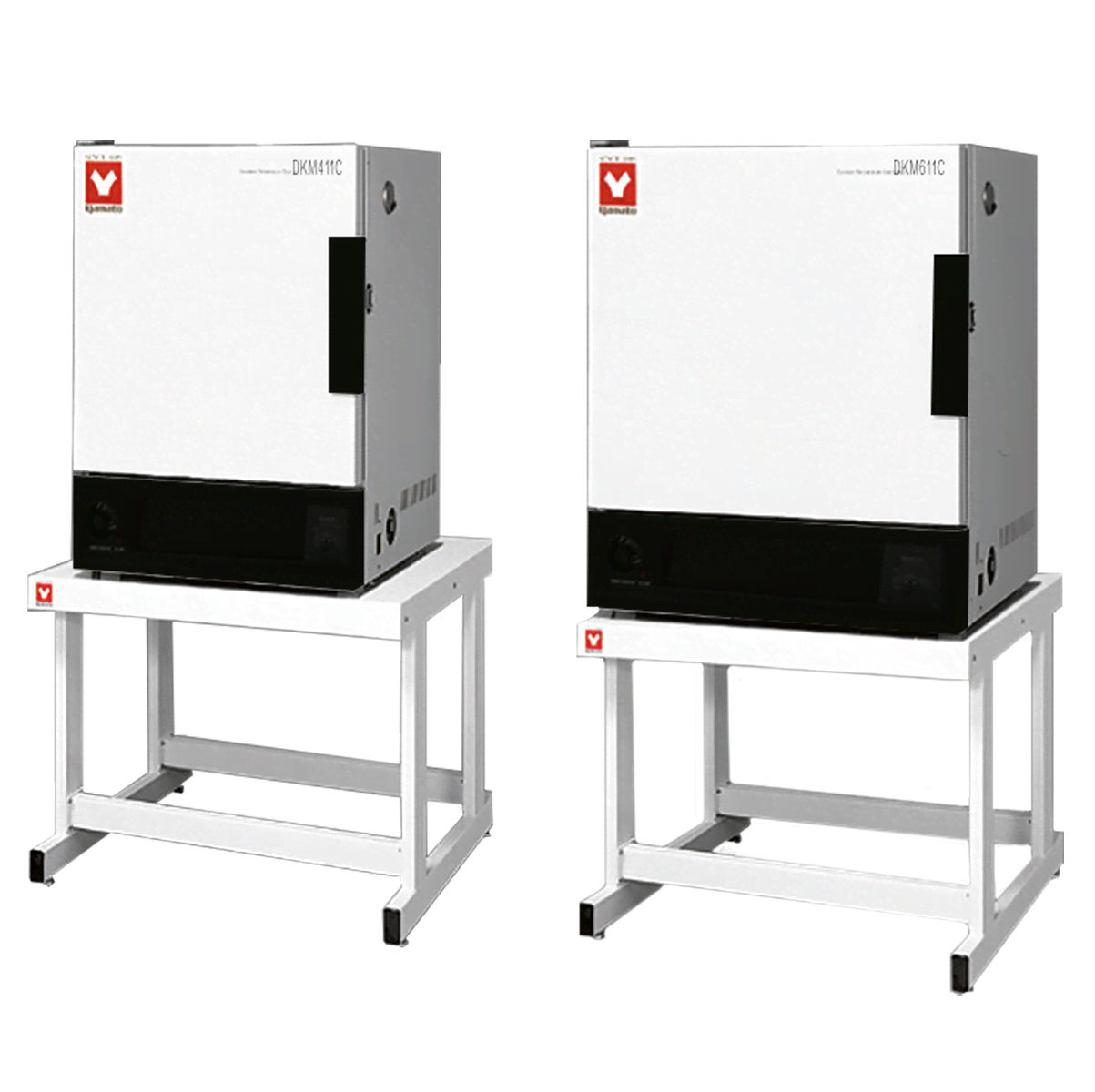

Air-supplied constant temperature chamber

AED 3,575.00

Availability:In stock

Only %1 left

Air-Supplied Constant Temperature Chamber (DKM Series) — affordable forced-air drying oven with PID control, room temp+10°C to 260°C range. Simple fixed-value/auto-stop/auto-start operation, digital menu-key setting, K-type sensor with independent liquid-expansion over-temp protection. Self-diagnostic safety. Three capacity tiers from 27L to 150L — entry-level tier below DKN Series.

BrandYamato Scientific

More Information
Product Name	Air-supplied constant temperature chamber
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	DKM311C	DKM411C	DKM611C
Method	Forced-air supply circulation
Operating Temperature Range	Room temp+10°C to 260°C
Temperature Fluctuation (GB Standard)	±0.5°C (at 260°C)
Temperature Uniformity (GB Standard)	±2% (at 260°C)
Temperature Control Accuracy (JTM Standard)	±1.0°C (at 210°C)
Temperature Distribution Accuracy (JTM Standard)	±2.5°C (at 210°C)
Time to Reach Max Temperature	~60 min (room temp 10–210°C); ~90 min (room temp 10–260°C)
Interior	Stainless steel plate
Exterior	Cold-rolled steel plate, chemical-resistant coating
Insulation	Glass fiber + rock wool
Heater	Stainless steel heating tube
Heater Power	0.8 kW	1.2 kW	1.5 kW
Blower Fan/Motor	Centrifugal fan, motor 10W×1
Lead Port	Inner diameter 30mm, right side ×1
Exhaust Port	Inner diameter 30mm×2, top
Temperature Control Method	PID control
Temperature Setting Method	Function menu key + up/down keys, digital setting
Temperature Display (Measured)	Green 4-digit LED, digital display
Temperature Display (Set)	Red 4-digit LED, digital display
Timer	1min–99h59min and 100h–999h50min (with timed-wait function)
Operating Functions	Fixed-value operation, rapid auto-stop, auto-stop, auto-start
Additional Functions	Deviation correction, key lock, power-failure compensation
Control Sensor	K-type thermocouple
Over-Temp Protection Sensor	Liquid-expansion type temperature controller
Safety Devices	Self-diagnostic function (sensor fault, SSR short-circuit, auto over-temp prevention), key lock, independent over-temp preventer, overcurrent/leakage protection switch
Internal Dimensions (W×D×H)	300×300×300mm	450×450×450mm	600×500×500mm
External Dimensions (W×D×H)	410×451×677mm	560×601×827mm	710×651×877mm
Internal Volume	27L	90L	150L
Shelf Load Capacity	15 kg/shelf
Number of Shelves	6	11	13
Shelf Spacing	30mm
Power Supply (50/60Hz), Rated Current	AC220V, 4A	AC220V, 6A	AC220V, 7.5A
Weight	~35 kg	~50 kg	~65 kg
Standard Accessories — Shelves	×2 (1 pre-fixed to unit, do not remove)
Standard Accessories — Shelf Supports	×2
Optional — Stand	ON30C	ON61C	—
Optional — Stacking Bracket	—	OD40C	OD60C
Optional — Other	Additional shelf (1 shelf incl. 2 supports), wire port (30/50mm)

More from Yamato Scientific

Rectangular vacuum constant temperature drying oven
Variants from AED 18,638.00

AED 18,638.00
SKU: Rectangular vacuum constant temperature drying oven
Clean Oven
Variants from AED 65,799.00

AED 65,799.00
SKU: Clean Oven
Low-temperature constant temperature chamber
Variants from AED 17,638.00

AED 17,638.00
SKU: Low-temperature constant temperature chamber
Rectangular vacuum dryer
Variants from AED 15,089.00

AED 15,089.00
SKU: Rectangular vacuum dryer

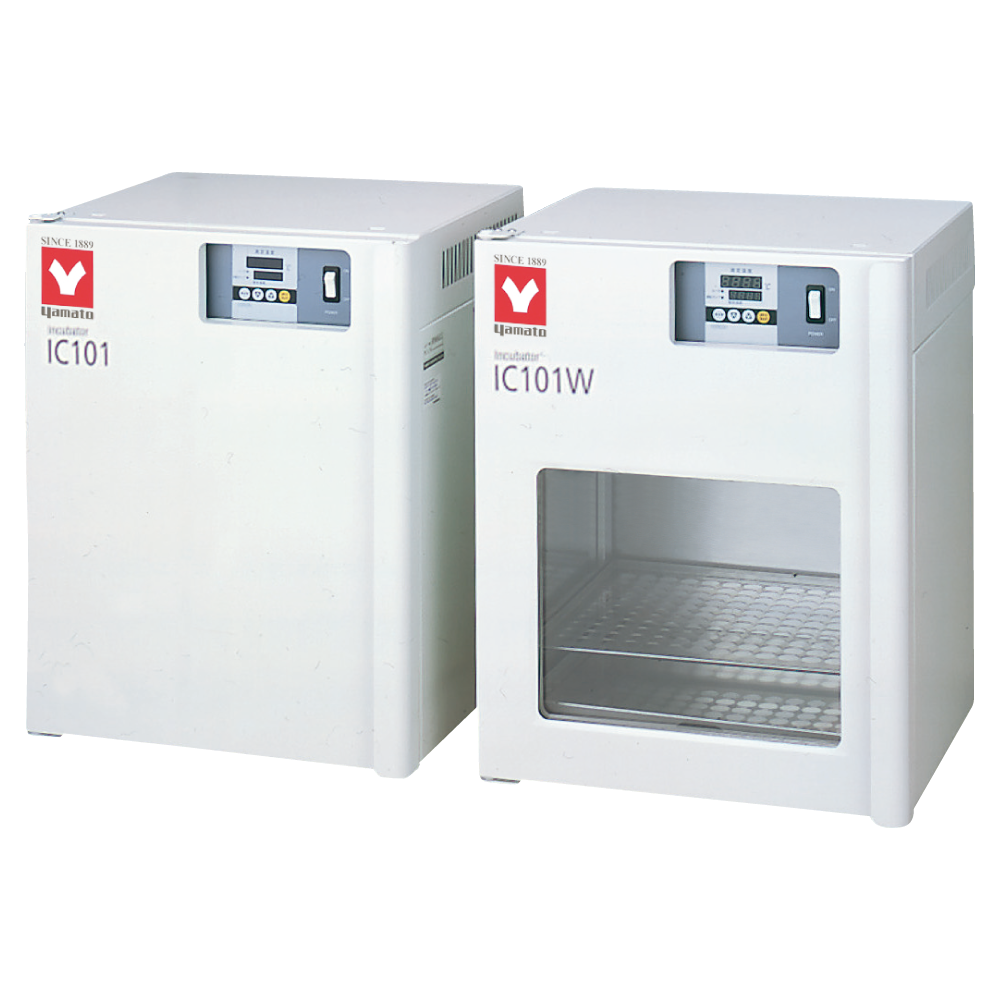

Incubator with Direct Heat
Variants from AED 4,996.00

AED 4,996.00
SKU: Incubator with Direct Heat

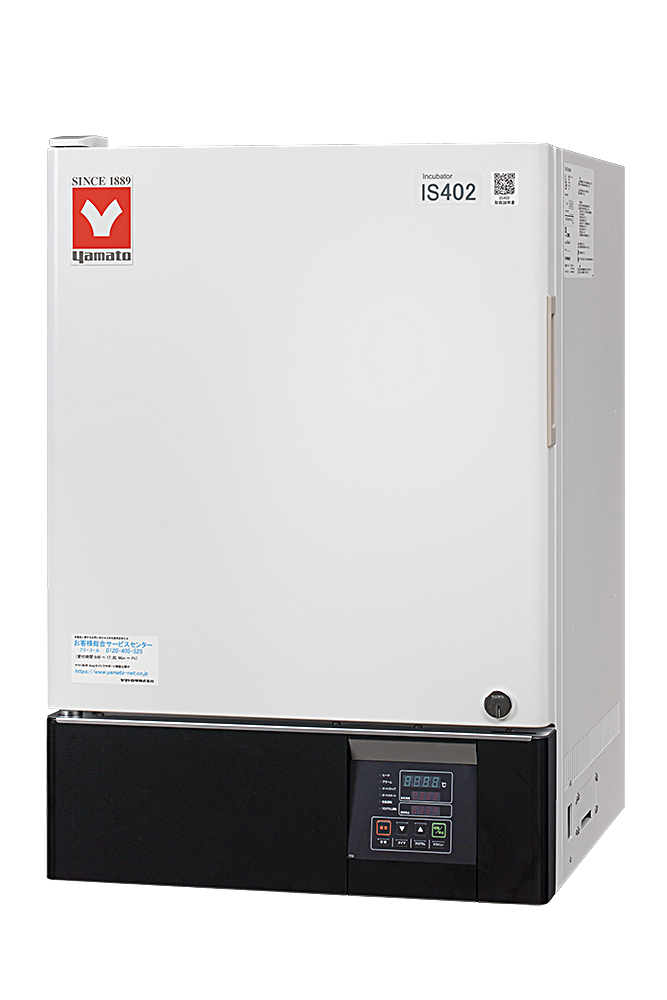

Constant temperature incubator
Variants from AED 10,335.00

AED 10,335.00
SKU: Constant temperature incubator

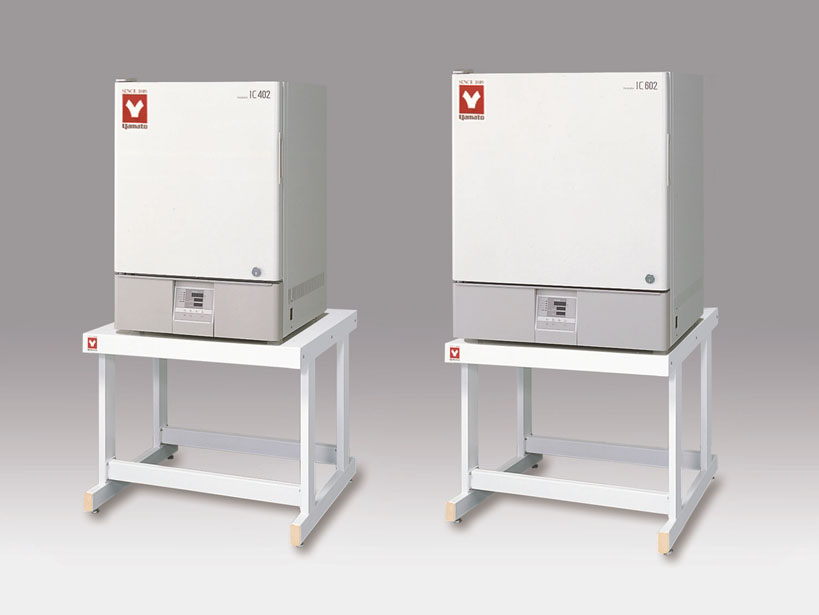

Air Jacket Incubators
