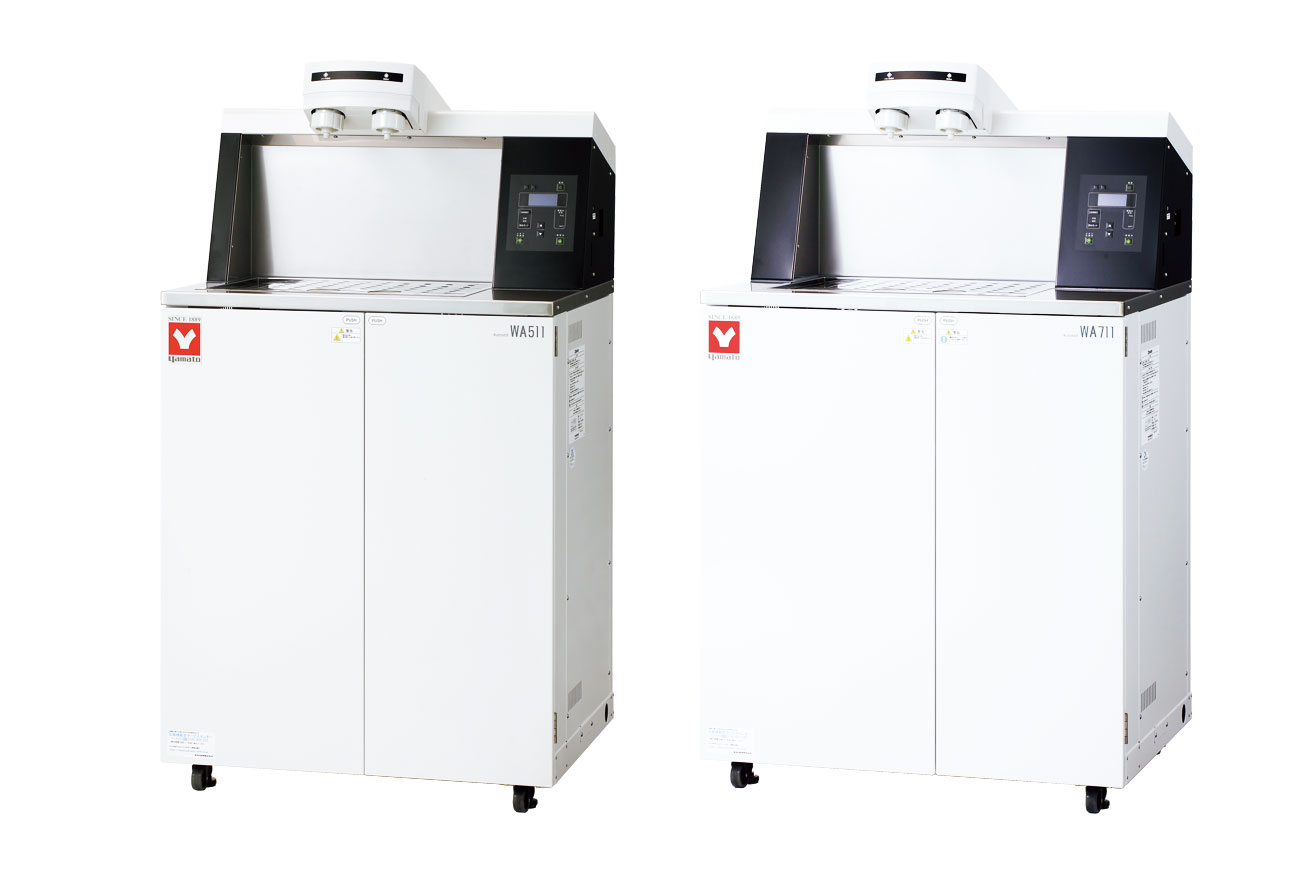

Pure water production system AutoStill®

AED 12,401.00

Availability:In stock

Only %1 left

Yamato AutoStill® Large-Capacity Pure Water System – industrial-grade distillation producing 5–10 L/h of JIS K0557 A4 distilled and ion-exchanged water. 100L PE storage tank (30/55/85L settings), standard water collection sink, 0.1μm final filtration. AC200V three-phase power. Ideal for high-volume lab and pharmaceutical pure water needs.

BrandYamato Scientific

More Information
Product Name	Pure water production system AutoStill®
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	WG511	WG711
Product code	253137	253138
Water quality level	Distilled water: JIS K0557 A4*² / Ion-exchanged water: JIS K0557 A4
Water sampling method — Distilled water	Pre-treatment cartridge → Ion exchange cartridge SPC-10 → (Optional: CPC-H) → Distillation → Tank → Filtration
Water sampling method — Ion-exchanged water	Pre-treatment cartridge → Ion exchange cartridge SPC-10 → (Optional: CPC-H) → Filtration
Distilled water production volume	~5.0 L/h	~10.0 L/h
Distilled water flow rate	~1.0–2.0 L/min (50Hz) / ~1.5–2.5 L/min (60Hz) (varies by tank water level)
Ion-exchanged water flow rate*¹	~1.4 L/min	~2.8 L/min
Water collection volume setting range	0.1–85L quantitative / continuous sampling*³
Drain connection	Left/right/rear selectable connection / hose connection
Pre-treatment cartridge	0.1μm hollow fiber membrane + activated carbon (PWF-1), replace at ~5,000L throughput
Ion exchange cartridge	SPC-10 (resin volume ~10L), replace at ~2,000L throughput
High-purity cartridge (optional)	CPC-H (replace at ~2,500L throughput combined with SPC-10)
Final filtration	0.1μm membrane filter MFRL730 (mounted at water intake), replace at ~3,000L throughput
Distilled water storage tank	PE, 100L (full-level setting selectable: 30/55/85L)
UV sterilization lamp	Optional
Water collection sink	Standard equipped
Level adjuster	Standard equipped
Raw water pressure range	0.10–0.50 MPa	0.20–0.50 MPa
*External dims (W×D×H)⁴	800×685×1510mm	870×685×1510mm
Weight	~130kg	~140kg
Power source (50/60Hz), rated current	Single-phase AC200V, 21A (30A)	Single-phase AC200V, 42A (50A)
Accessories	Water supply hose (with stopper fitting) ×1, scale cleaner (1kg) ×1, ion exchange resin cartridge SPC-10 ×1, pre-treatment cartridge ×1, membrane filter ×2, seal tape ×1, elbow fitting ×1, hose clamps ×2, drain hose Assy 3m ×1, connecting hose Assy ×1
