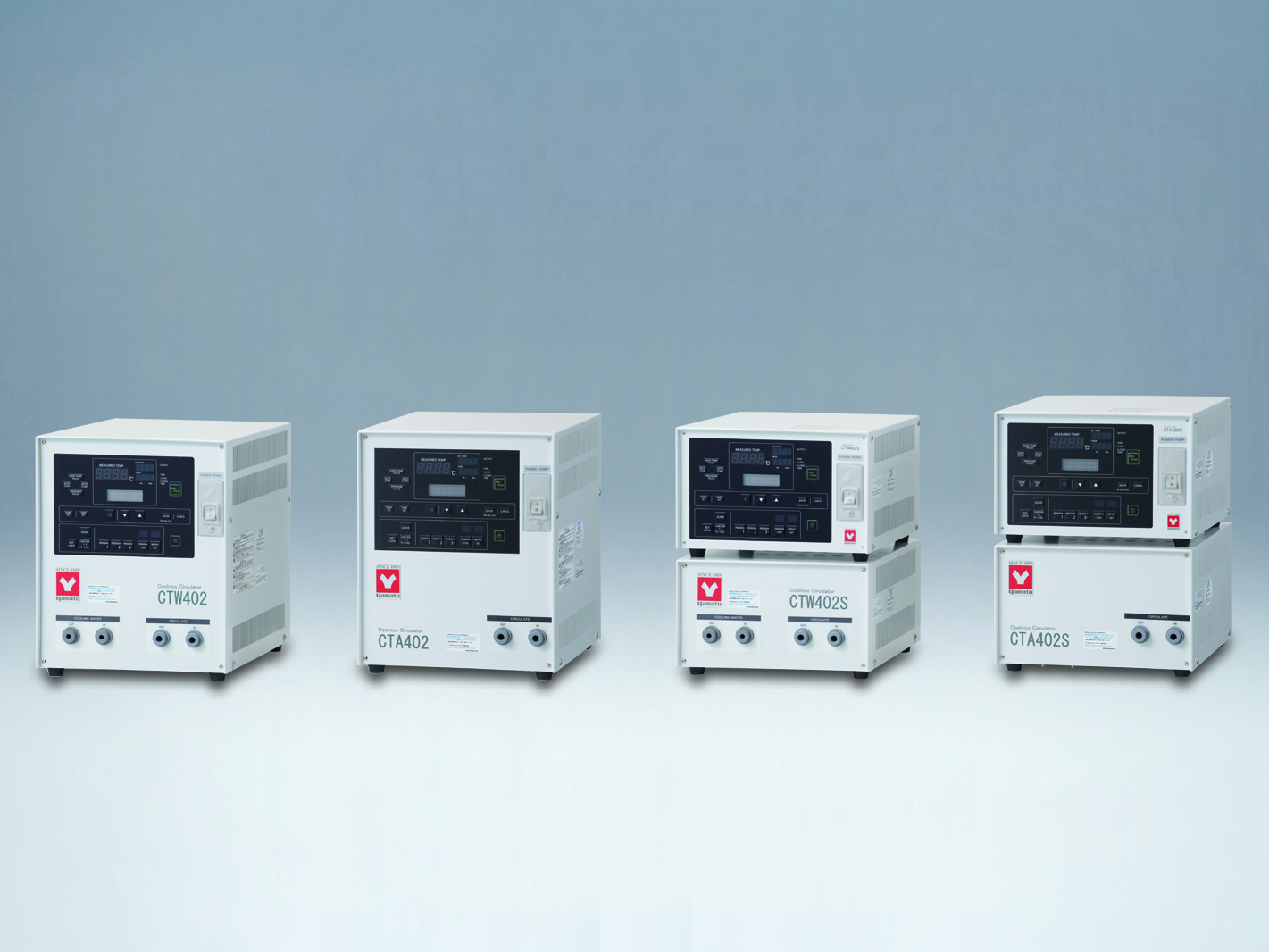

Coolnics Circulator (Peltier Chiller)

AED 23,704.00

Availability:In stock

Only %1 left

Yamato CoolNics Peltier Circulator (Air-Cooled, Separated "S" Type) – non-CFC, low-vibration thermoelectric cooling/heating, ideal for equipment integration. ±0.1°C precision, 99-step programmable operation, RS-485 communication. Split power/heat-exchange unit design saves bench space. Available in compact (4-element) and standard (8-element) cooling capacities. Cools, heats, or maintains tank temperature.

BrandYamato Scientific

More Information
Product Name	Coolnics Circulator (Peltier Chiller)
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Technical Data
Specification	CTA402S	CTA802S	CTA812S
Product code	221643	221645	221646
System	Air-cooled electronic (Peltier) cooling / external open-system circulation / separated type
Temp. control range	0~+70°C
Temp. control accuracy	±0.1°C
Cooling capacity (at liquid temp 20°C)	83kcal/h (97W)	163kcal/h (189W)	163kcal/h (189W)
Pump capacity (50Hz), max flow rate	8 L/min	11 L/min	11 L/min
Pump capacity (50Hz), max discharge pressure	29.4 kPa	78.4 kPa	78.4 kPa
Temperature controller	PID control, digital setting and display
Control sensor	Platinum resistance thermometer (Pt100Ω)
Timer function	1min–99hr50min, 100–9999hrs (24-hr time/date switching)
Operating functions	Constant value (with pause), constant auto-stop, quick auto-stop, constant auto-start, program operation (99 steps, step division, repeat, gradient, etc.), program auto-start
Other features	Self-diagnosis, calibration offset, external sensor switching (optional ext. sensor), power outage recovery, RS-485 communication, alarm output terminal, key lock, power consumption/cost record display, operation guidance, temperature output terminal
Safety devices	Overcurrent leakage breaker, temp. sensor/overheat/Peltier/upper-lower limit/rise-fall anomaly detection, power supply anomaly detection, internal comm. anomaly detection, memory anomaly detection
Cooler/heater wetted parts material	Stainless steel (SUS304)
Circulation port nipple diameter	φ12.7 outer diameter
Number of thermo modules (Peltier elements)	4 pieces	8 pieces	8 pieces
Accessories	Insulated circulating water hose (φ11.5×1m) ×2 (IN-side has manual water supply), overlapping fittings (S type only)
Power supply unit dims (W×D×H)	291×342×195mm	same	same
External dims (W×D×H)	291×380×190mm	361×410×265mm	361×410×265mm
Dimension note	Heat exchange section
Power capacity	AC100V, 3.4A	AC100V, 6.5A	AC200V, 3.3A
Breaker/power capacity	15A
Weight (heat exchange unit)	16kg	27kg	27kg
Weight (power control unit)	~10kg	~10kg	~10kg

More from Yamato Scientific

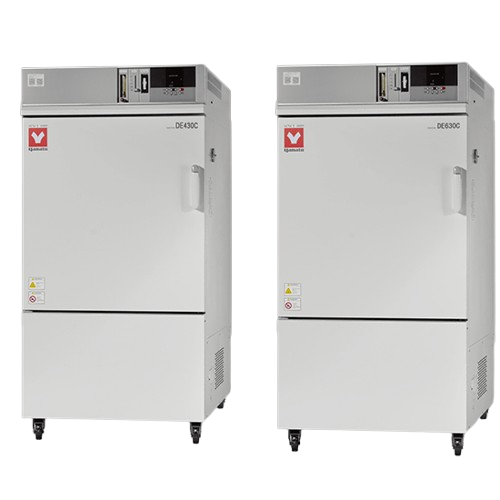

Cleanroom constant temperature chamber
Variants from AED 43,357.00

AED 43,357.00
SKU: Cleanroom constant temperature chamber

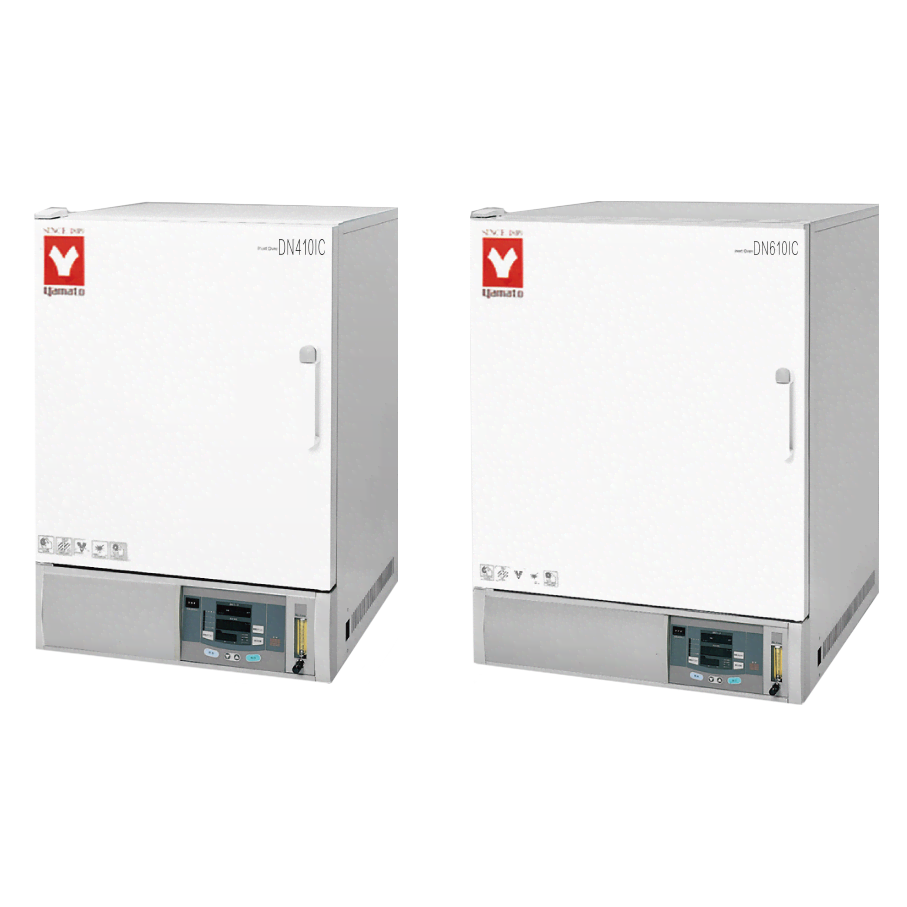

Anaerobic incubator
Variants from AED 15,618.00

AED 15,618.00
SKU: Anaerobic incubator
Constant temperature drying oven
Variants from AED 2,953.00

AED 2,953.00
SKU: Constant temperature drying oven

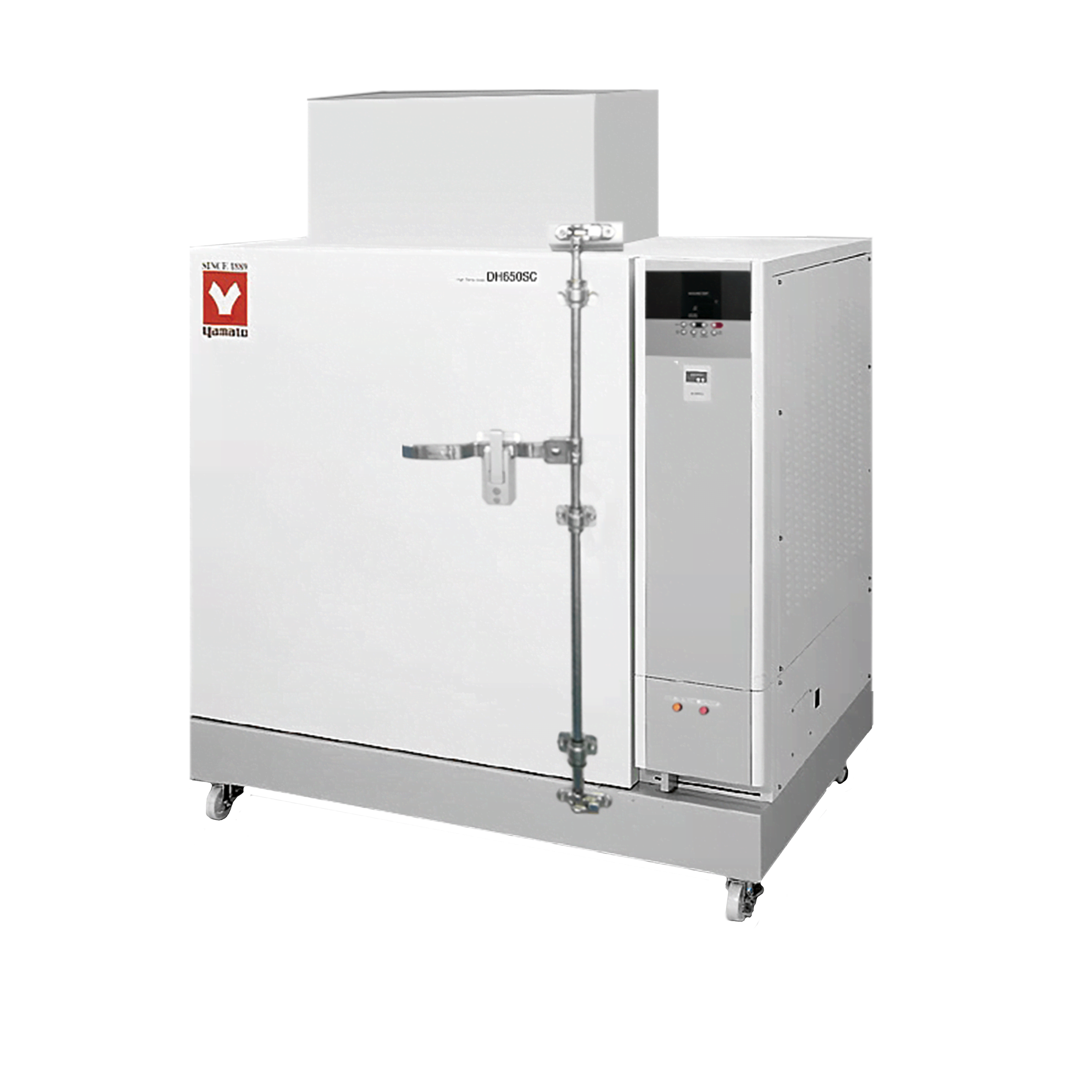

Explosion-proof high-temp precision constant temp chamber
Variants from AED 52,992.00

AED 52,992.00
SKU: Explosion-proof high-temp precision constant temp chamber

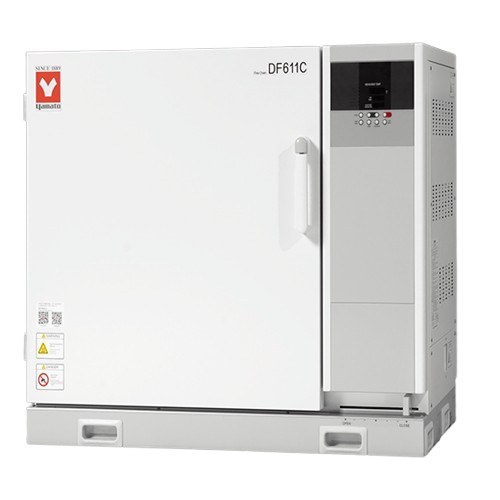

Anaerobic Precision Temperature Control Chamber
Variants from AED 26,924.00

AED 26,924.00
SKU: Anaerobic Precision Temperature Control Chamber

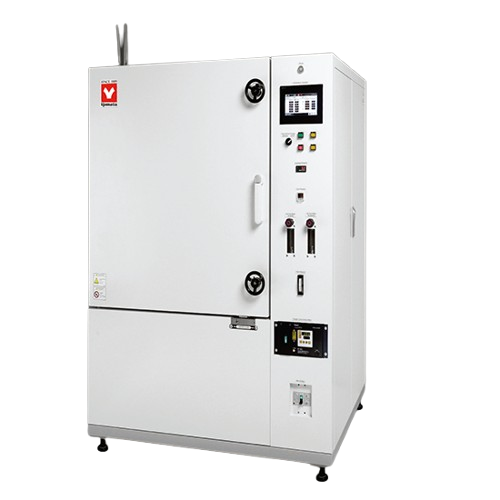

Clean Anaerobic High-Temperature Atmosphere Furnace
Variants from AED 258,314.00

AED 258,314.00
SKU: Clean Anaerobic High-Temperature Atmosphere Furnace

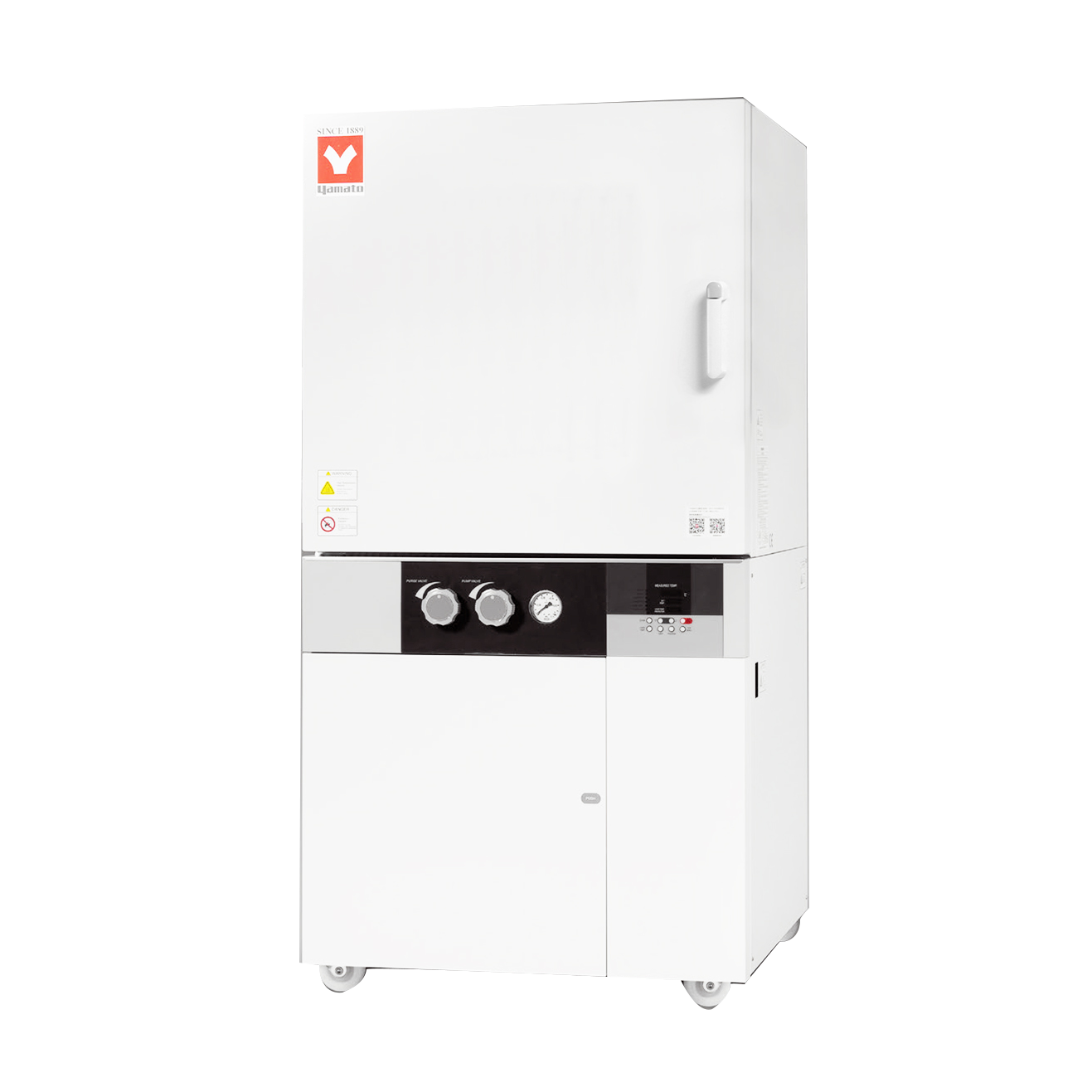

Vacuum drying oven
