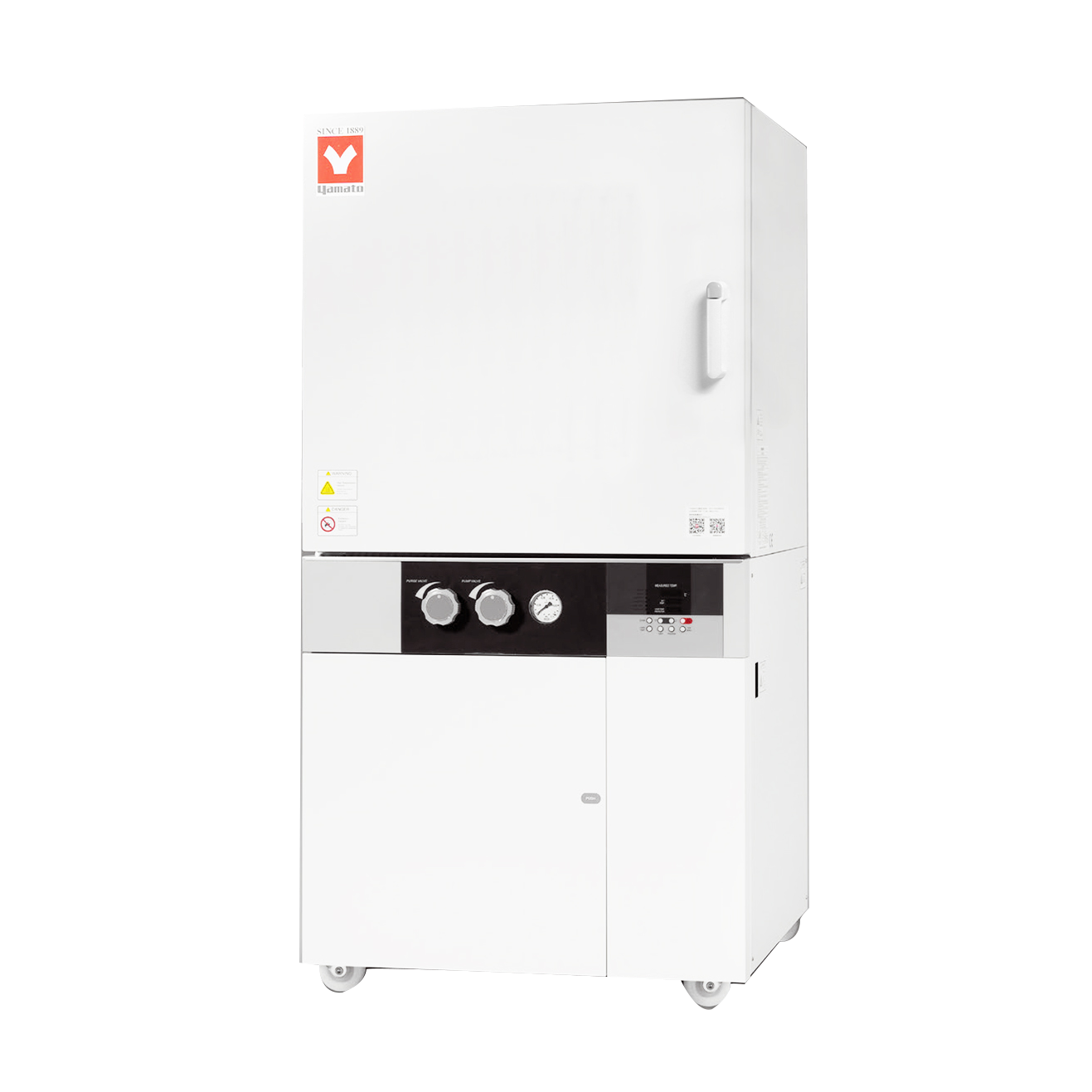

Vacuum drying oven
AED 12,860.00
Availability:In stock
Only %1 left
SKU
Vacuum drying oven
The DPHH Series High-Temperature Vacuum Drying Oven delivers exceptional drying performance under reduced pressure with internal wall heating technology. Operating up to 400°C and down to 0.1kPa, it features precise PID control, digital settings, and rapid heat-up times. Ideal for high-temperature vacuum processing of heat-sensitive materials, electronic components, and advanced laboratory applications requiring extreme temperature vacuum conditions.
BrandYamato Scientific
| Product Name | Vacuum drying oven |
|---|---|
| Weight | 1.000000 |
| Technical Data | ||
|---|---|---|
| Specification | DPHH43C | DPHH63C |
| Chamber Capacity (config. attr.) | 91L | 216L |
| Method | Reduced pressure · Chamber internal wall heating | |
| Operating Temperature Range | 40~400°C | |
| Operating Pressure Range | 101~0.1kPa (760~1Torr) | |
| Time to Max Temp | ~75 min | ~90 min |
| Temperature Fluctuation (GB) | ±0.5°C (at 400°C) | |
| Temperature Control Accuracy (JTM) | ±1.0°C (at 400°C) | |
| Heating Method | Pressure chamber internal wall heating | |
| Heater Power | 4.0 kW | 5.2 kW |
| Vacuum Gauge | Analog, -100~0kPa | |
| Internal Dimensions (W×D×H) | 450×450×450mm | 600×600×600mm |
| External Dimensions (W×D×H) | 820×820×1675mm | 1020×1020×1875mm |
| Internal Volume | 91L | 216L |
| Exhaust Port | 25KF flange | |
| Suction Port | Rc3/8 | |
| Power Supply (50/60Hz) | AC220V 18.5A | AC220V 24A |
| Weight | ~290 kg | ~450 kg |
