Economy Constant Temperature Water Baths

AED 2,308.00

Availability:In stock

Only %1 left

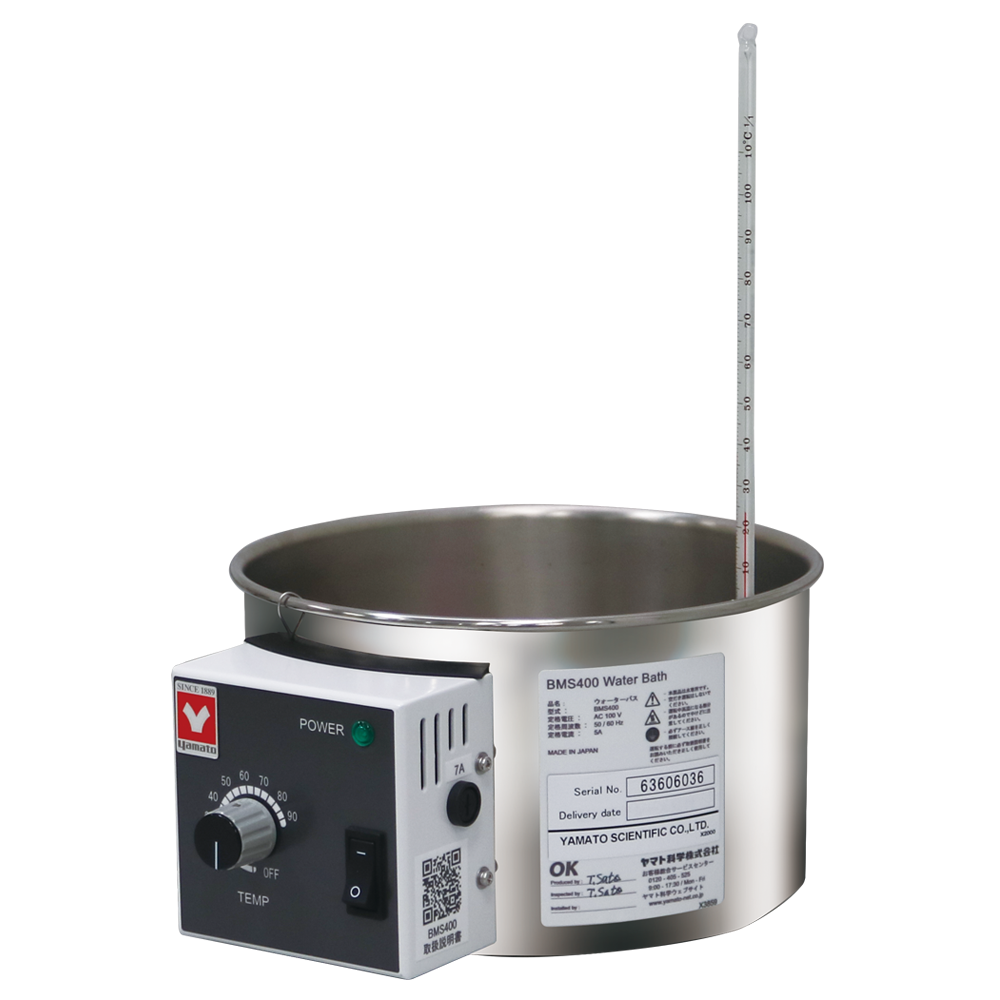

Yamato Hot Water Bath – versatile lab water bath heating from ambient to boiling temperature. Copper nickel-plated pipe heater, liquid-expansion over-temperature protection, and overcurrent leakage breaker. Multiple opening configurations (4 or 6 wells) for test tubes/flasks. Capacities 4.7L–14L. Ideal for sample heating, incubation, and lab testing.

BrandYamato Scientific

More Information
Product Name	Economy Constant Temperature Water Baths
Weight	1.000000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Specification	BS200	BS401	BS601	BS660
Product Code	222061	222065	222066	222064
System	Water bath (direct immersion heating)
Temperature Control Range	Room temperature +5°C to boiling temperature (water)
Temperature Control Accuracy	±3°C (at 70°C)
Temperature Distribution Accuracy	±5°C (at 70°C)
Time to Maximum Temperature	Approx. 35 minutes	Approx. 60 minutes	Approx. 50 minutes	Approx. 50 minutes
Inner Tank	Stainless steel plate
Heater	900W Copper Pipe Heater (Nickel-Plated)	1.3kW Copper Pipe Heater (Nickel-Plated)	1.3kW Copper Pipe Heater (Nickel-Plated)	1.3kW Copper Pipe Heater (Nickel-Plated)
Safety Devices	Over-temperature protector (liquid expansion type, self-holding relay with alarm lamp), Overcurrent leakage breaker (power lamp illuminates when ON)
Internal Dimensions	Ø200 × D149 mm	W328 × D302 × D99 mm	W790 × D150 × D102 mm	W502 × D302 × D99 mm
Effective Internal Dimensions	Ø186 × D115 mm	W298 × D260 × D64 mm	W776 × D140 × D73 mm	W468 × D260 × D66 mm
External Dimensions	W300 × D364 × H216 mm	W390 × D438 × H214 mm	W864 × D288 × H215 mm	W565 × D437 × H214 mm
Tank Capacity	Approx. 4.7 L	Approx. 9 L	Approx. 11 L	Approx. 14 L
Power Source / Rated Current	AC100V, 9A (15A)	AC100V, 13A (20A)	AC100V, 13A (20A)	AC100V, 13A (20A)
Opening Size / Quantity	—	Ø115 mm × 4	Ø115 mm × 6	Ø115 mm × 6
Weight	Approx. 5 kg	Approx. 9.5 kg	Approx. 16 kg	Approx. 12 kg
Standard Accessories	Ring (except BS200), lid, container mounting clamp, stand, clamp mounting crossbar (except BS200), stand connector, alcohol thermometer (0–100°C), bottom plate, basket (BS200 only).
